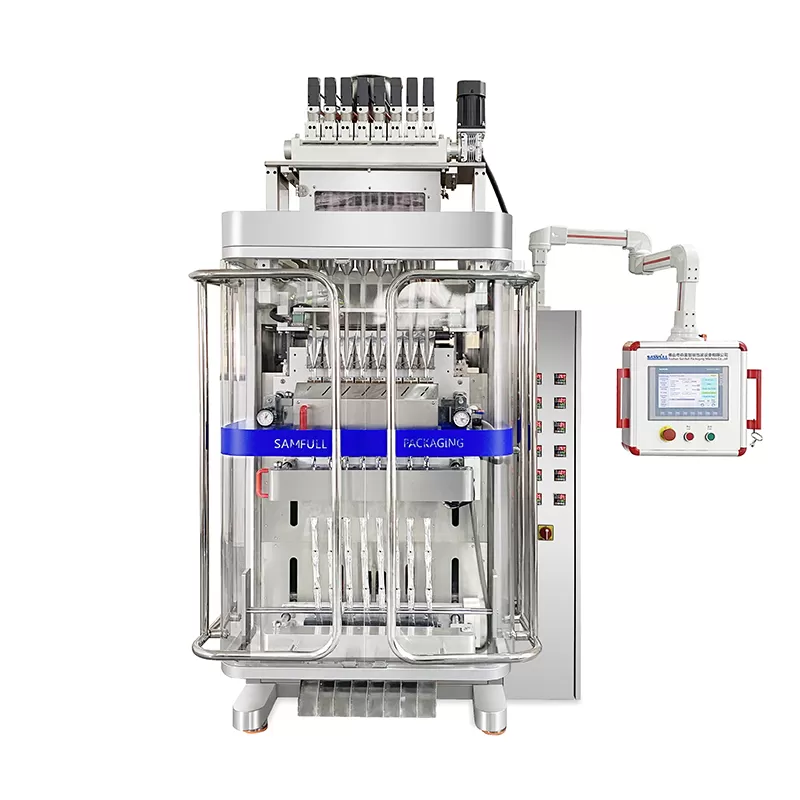

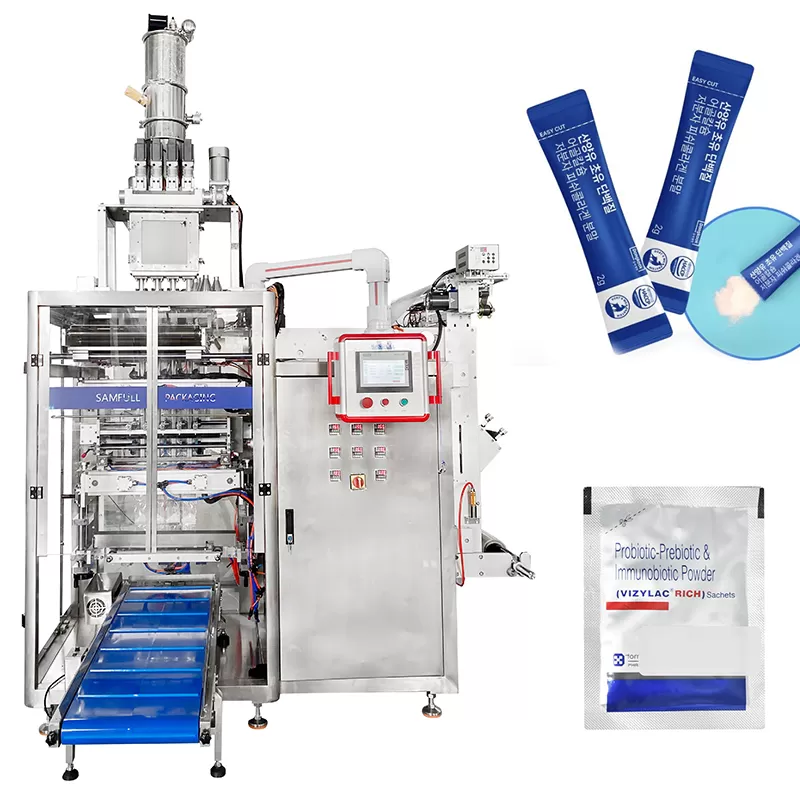

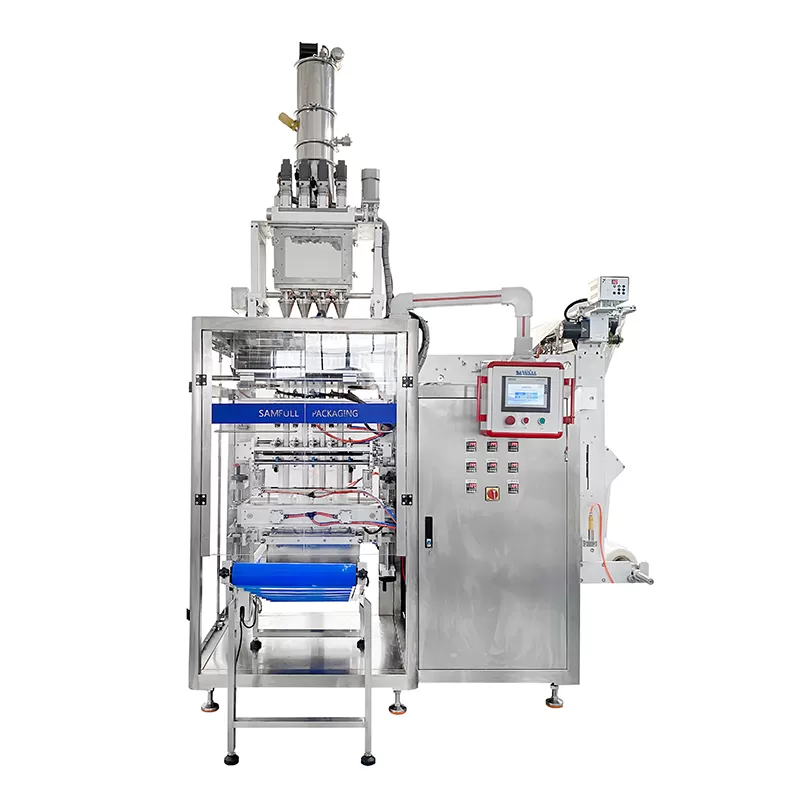

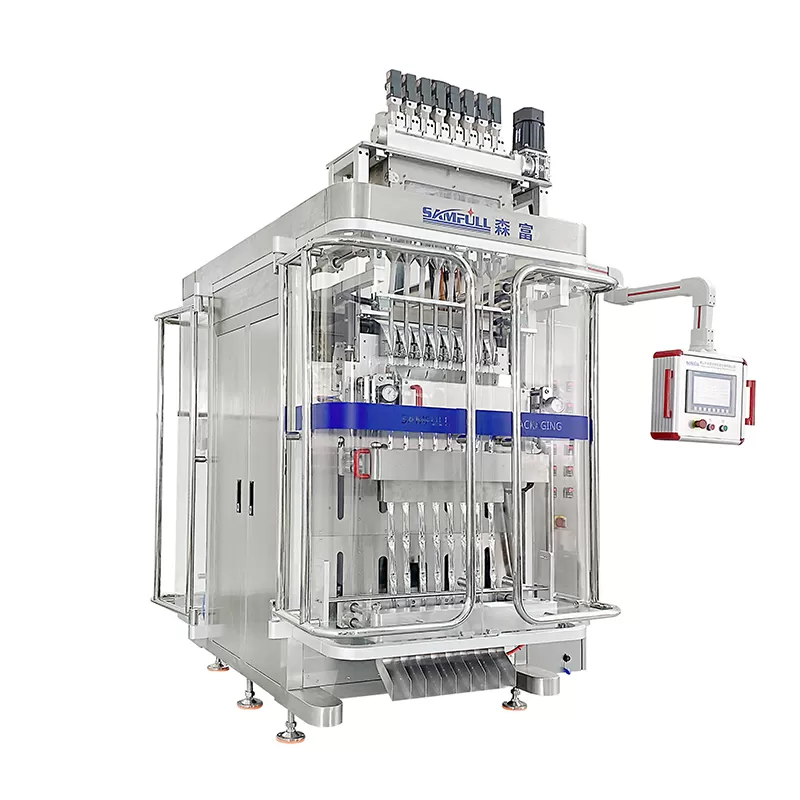

Powder Packaging Machine
Technical details
Capacity | 25-45 cycle/min ( Depend on the features of material ) |
Stick bag length | Max.180mm |
Stick bag width | Max.70mm |
Filling method | Servo motor auger filler, volumetric weigher |
Weight range | 1-50ml |
Film material | 1. Composite film 2. aluminium film |
Cutting type | 1. straight cutting 2. zigzag cutting 3. round cutting |
APPLICATIONS
Product: powdered pharma product, particle pharma product
Bag type: middle sealing stick bag, four sides sealed sachet, three sides sealed sachet
Capacity: single lane machine for 30-45 bag/min, multilane machine for 100-450 bag/min
As a manufacturer with 14 years of experience in packaging machine design and production, we have accumulated rich experience in both the food and non-food fields.
Just tell us your packaging requirements and we will provide you with the most suitable solution.
Whatsapp/Wechat/Phone: +86 19807573489
E-mail: service@samfull.com
BAG SAMPLES
VIDEOS
OPTIONAL DEVICES
1. Code printer: laser marking printer, thermal transfer printer, ribbon code printer, hot stamped coding machine
2. Cutting type: straight cut, zigzag cut, round cut
3. Dosing system: long screw filler, short screw filler
4. Easy open tear notch features
5. Variety of bag sealing patterns and bag shapes
6. Automatic counting and repackaging machine: box cartoning machine, vffs vertical form fill machine, premade pouch packing machine
7. Finished product conveyor
8. Dust suction and removal device
DESCRIPTION
Our Advantages
1. The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards:
2. Equipped with safety protection.in line with enterprise safety management requirements;
3. Electric components are general accessories for imported reliable brands. Siemens PLC control, touch screen control, automatic control capacability of the whole machine, high reliability and intelligence, high speed and high efficiency;
4. Independent temperature control system is adopted, and the temperature control is accurate, ensuring the sealing effect is beautiful and smooth:
5. The servo clamping film, film pulling system and color code control system can be automatically adjusted through the touch screen, and the operation ot sealing deviation correction and incision deviation correction is simple;
6. It can be packed 4-12 lines according to the width of the bag.The machine can be connected to the subsequent dosing line and the automatic secondary packing machine like cartoning machine, vffs machine and premade pouch packing machine, to achieve the fully automation production line.
Key Features and Functions
1. Multiple Lanes: The machine consists of multiple lanes, typically ranging from two lanes to higher counts (e.g., four lanes, six lanes, etc.), each capable of simultaneously producing stick packs.
2. Powder Filling Stations: Each lane is equipped with dedicated powder filling stations that accurately measure and dispense the powdered product into the stick packs.
3. Film Unwinding and Forming: The packaging material, often a roll of film or foil, is unwound and formed into individual stick pack tubes.
4. Sealing Mechanism: The machine seals the stick packs on both ends, creating a tamper-evident closure to protect the powdered product from moisture and contamination.
5. Auger or Volumetric Filling: Powdered products can be filled using auger screw systems or volumetric mechanisms to ensure precise and consistent dosing.
6. Film Material Compatibility: The machine is designed to work with appropriate packaging materials that are suitable for containing powdered products and maintaining product integrity.
7. Touchscreen Interface: Operators can use an intuitive touchscreen interface to set up the machine, adjust parameters, and monitor the packaging process.
8. Integrated Sensors and Inspection: Sensors detect any irregularities in filling, sealing, or packaging quality, allowing for real-time quality control and rejection of faulty stick packs.
9. Output and Speed: Powder multi-lane stick pack packaging machines are designed for high-speed production to meet the demands of large-scale manufacturing.
10. Coding and Marking: Some machines include options for adding date codes, lot numbers, or other markings to the stick packs.
