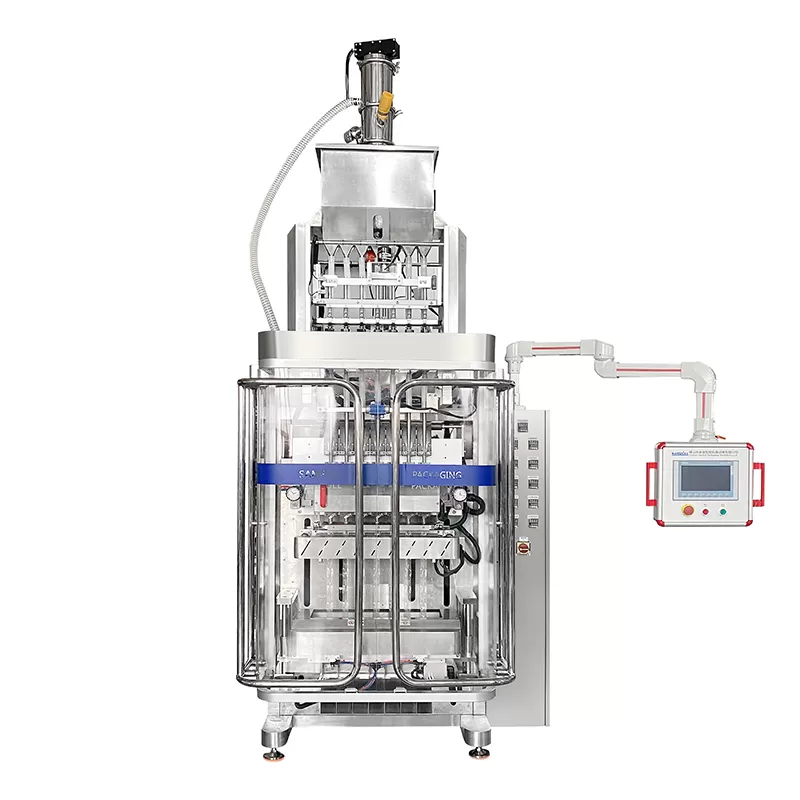

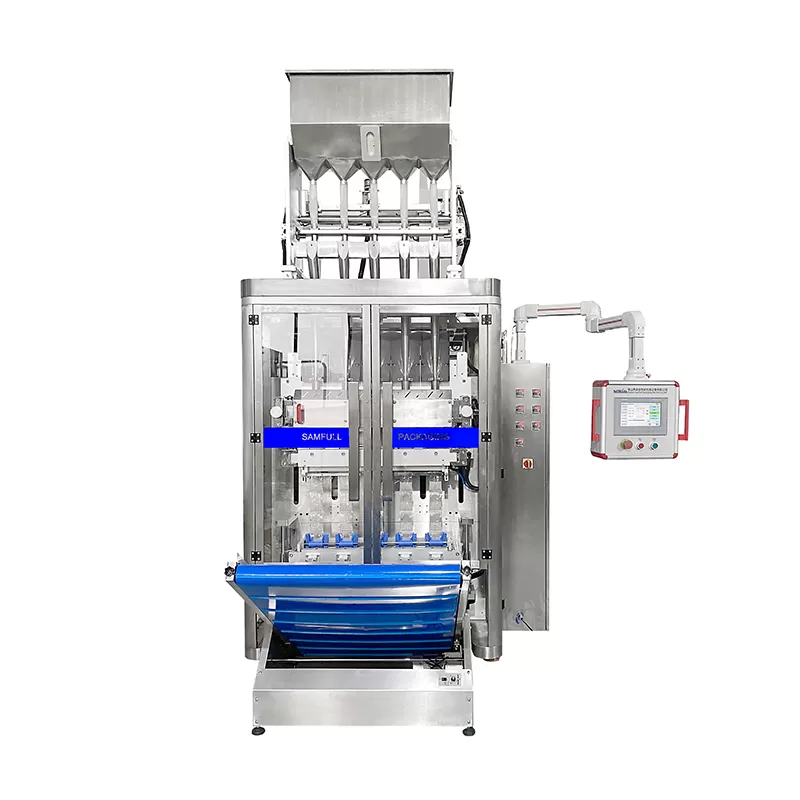

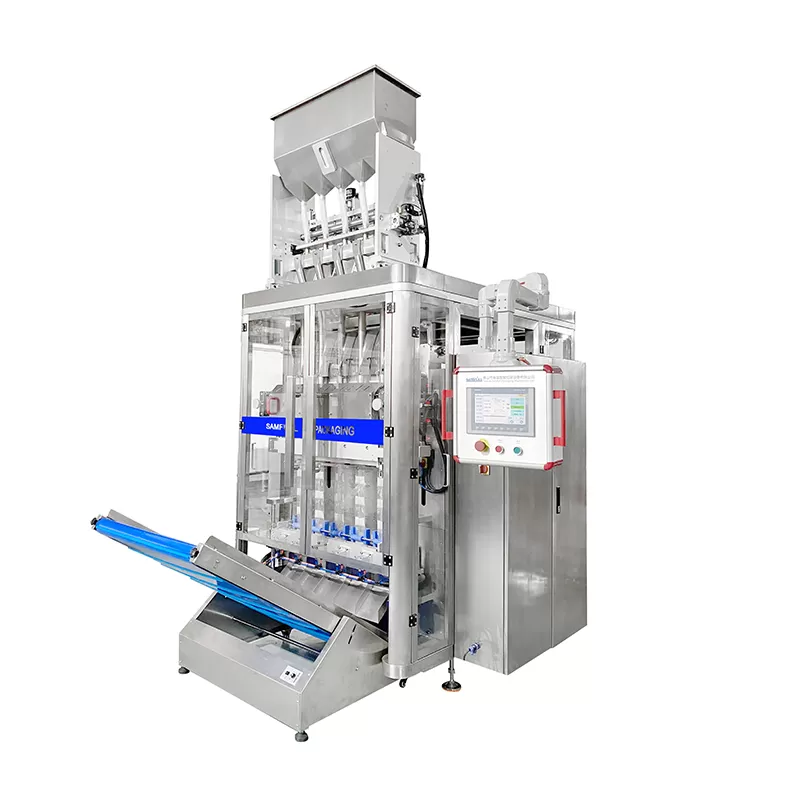

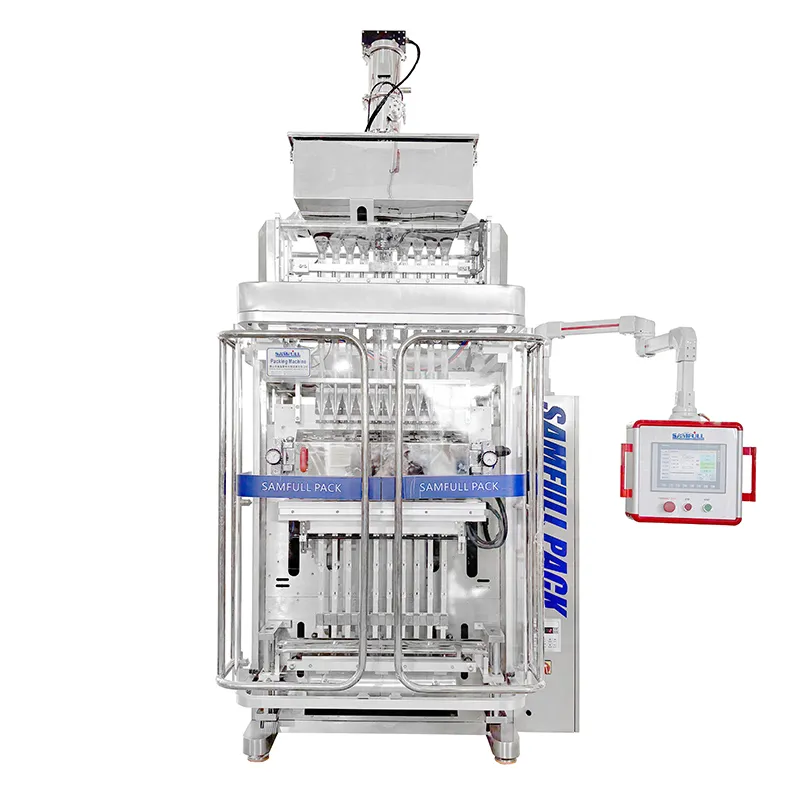

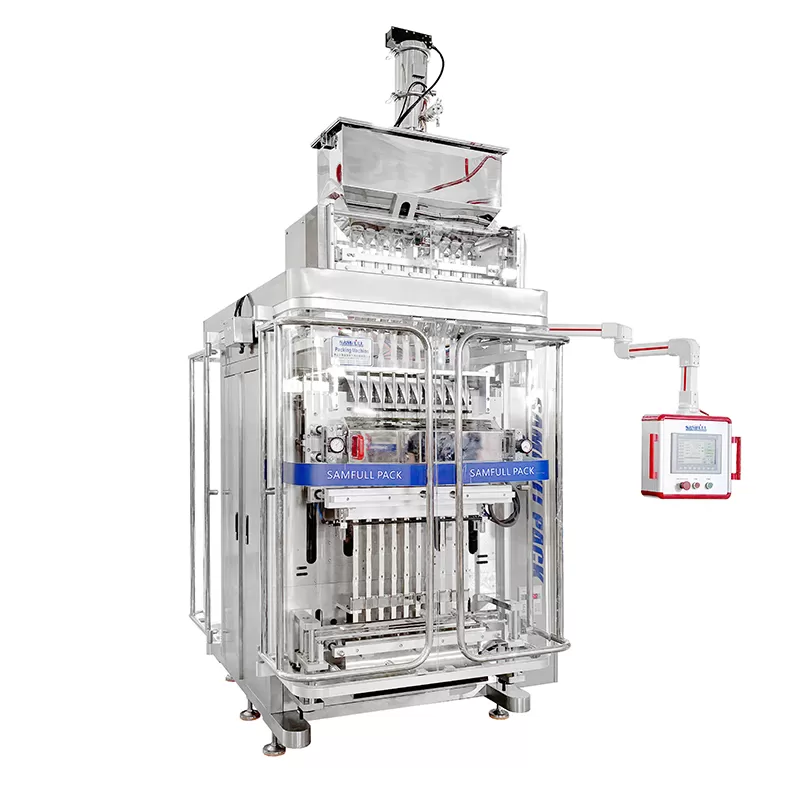

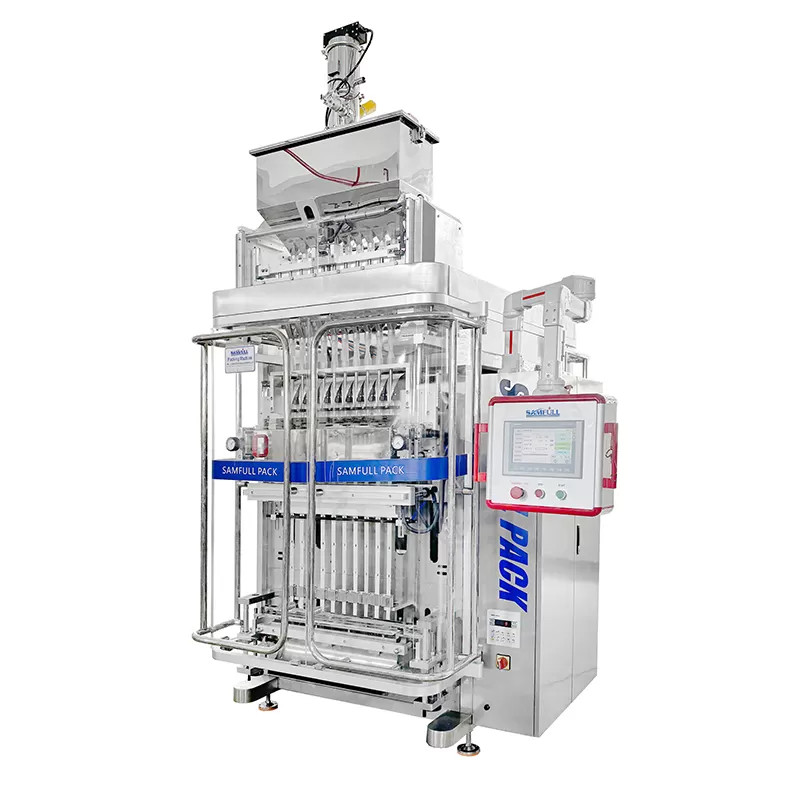

Stick Pack Machine
Technical details
| Parameter | Specification |
|---|---|
| Lane Range | 4 – 12 lanes |
| Bag Type | Stick pack (back seal) |
| Product Type | Granules / free-flowing powder |
| Filling Range | 1g – 30g |
| Speed | 30–45 bags/min/lane |
| Total Output | Up to 500 bags/min |
| Bag Width | 20 – 40 mm |
| Bag Length | 50 – 160 mm |
| Film Type | Aluminum / laminated film |
| Machine Material | SS304 / SS316 |
| Control System | Siemens PLC |
APPLICATIONS
This multi-lane granule stick pack machine (4–12 lanes) is engineered for high-speed, small-dose packaging of granules and free-flowing powders, widely used across food, pharmaceutical, and nutraceutical industries.
It is especially suitable for products such as:
Sugar
Salt
Seasoning granules
Herbal medicine granules
Nutritional powders
With flexible lane configuration and stable dosing performance, this machine delivers high output, consistent accuracy, and premium stick pack quality, making it an ideal solution for both mass production and high-end packaging applications.
White sugar stick packs
Brown sugar stick packs
Salt stick packs
Instant drink powders
Coffee additives (sugar & creamer blends)
Granulated seasoning
Spice powder blends
Flavor enhancers
Soup base granules
Traditional Chinese medicine (TCM) granules
Herbal extract powders
Nutritional supplement powders
Electrolyte powders
→ Ideal for 1g – 30g stick pack packaging
BAG SAMPLES
VIDEOS

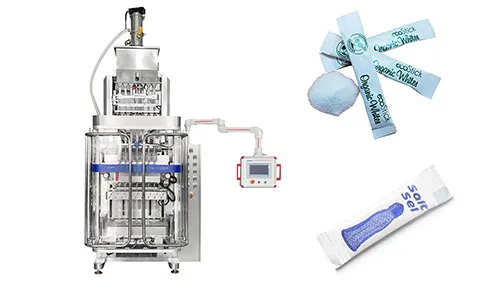

Sugar salt high speed stick pack

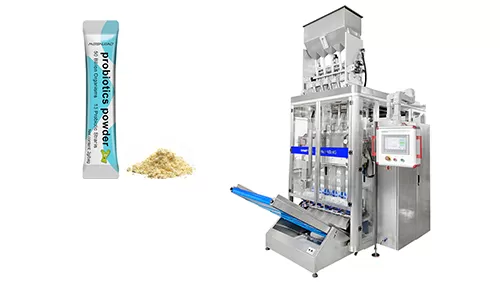

Free-flow powder supplements stick pack
Pharma & supplement stick pack
Aluminum foil stick pack
OPTIONAL DEVICES
1. Inspection & Quality Control Modules
1. Checkweigher (Weight Checking System)
2. Metal Detector
3. X-ray Inspection System (for high-end factories)
4. Automatic Reject System
2. Sorting & Conveying
1. Discharge Conveyor
2. Stick Pack / Sachet Collating System
3. High-speed Lane Diverter Conveyor
3. Counting & Grouping Systems
1. Automatic Counting Machine
2. Multilane Automatic Counting & Grouping Unit
3. Stacking System (for bundle packs)
4. Secondary Packaging Options
A. Cartoning
1. Automatic Carton Erector
2. Vertical / Horizontal Cartoning Machine
3. Multi-pack counting + automatic cartoning line
B. Bag-in-Bag Packaging
1. Automatic Bag-in-Bag Packaging System
2. Secondary VFFS / HFFS Machine
C. Jar / Can Filling
1. Stick Pack to Can/Bottle Filling Line
2. Automatic Capping and Labeling Systems
5. End-of-Line Packaging
1. Case Erector
2. Case Packer (Drop-type / Side-load)
3. Case Sealer
4. Robotic Palletizer
6. Labeling & Traceability Systems
1. Inkjet or Laser Coding System
2. Automatic Labeling Machine
7. Robotic Arm Applications (Pick-and-Place Robots)
1. Robotic Bag Sorting
2. Automatically picks and orients bags for downstream equipment.
3. Robotic Bag Loading
4. Loads single bags or grouped bags into:
Cartons
Trays
Display boxes
Buckets/cans
5. Robotic Grouping System
High-speed grouping of pouches/bags based on preset patterns.
6. Robotic Feeding to Case Packer
Ensures continuous feeding without manual intervention.
8. Front-end Feeding & Preparation System
Powder Mixing Machine
Screw Conveyor / Auger Feeder
Bucket Elevator / Z-type Conveyor
Vibratory Feeder
Vacuum feeder
DESCRIPTION
Adjustable lane quantity based on capacity
Scalable production from medium to high output
Compact multi-lane structure
Output capacity:
30–45 bags/min per lane
Up to 150–500 bags/min total output
Volumetric cup filling system
Suitable for free-flowing granules (sugar, salt, seasoning)
Reliable accuracy and repeatability
Back seal stick pack
Optional rounded corner cutting
Clean sealing and cutting performance
Enhances product appearance and market positioning
Aluminum laminated film
Composite film
Protects products from moisture and oxidation, ideal for food and pharma applications
Siemens PLC control
Servo-driven film pulling
Multi-language HMI (English/Chinese)
Ensures stable long-term operation
| Parameter | Specification |
|---|---|
| Lane Range | 4 – 12 lanes |
| Bag Type | Stick pack (back seal) |
| Product Type | Granules / free-flowing powder |
| Filling Range | 1g – 30g |
| Speed | 30–45 bags/min/lane |
| Total Output | Up to 500 bags/min |
| Bag Width | 20 – 40 mm |
| Bag Length | 50 – 160 mm |
| Film Type | Aluminum / laminated film |
| Machine Material | SS304 |
| Control System | Siemens PLC |
| Voltage | 3 Phase 380V / 50/60Hz |
Multi-lane counting system
Stick pack ordered arrangement system
Cartoning machine integration
Dust collection system
Static elimination device
Easy tear notch
Rounded corner cutting
This machine can be integrated into a full packaging system:
1. Stick pack machine
2. Counting system
3. Ordered arrangement
4. Cartoning machine
Suitable for:
10 sticks / box
20 sticks / box
50 sticks / box
Ideal for retail-ready packaging and pharmaceutical applications
Suitable for sugar, salt, seasoning, and pharmaceutical granules
Flexible 4–12 lane high-speed production
Stable dosing for small-weight packaging
Compatible with high barrier films
Ready for full automation upgrade
A versatile solution for FMCG and pharma packaging manufacturers
Yes. It is designed for free-flowing granules such as sugar and salt, ensuring stable high-speed packaging.
Yes. It works well with granulated or slightly powdered seasoning products.
Yes. The machine supports 4 to 12 lanes depending on your capacity requirements.
Yes. It can be upgraded to a fully automatic packaging line with counting and cartoning systems.
Typically 1g – 10g, depending on product characteristics.
