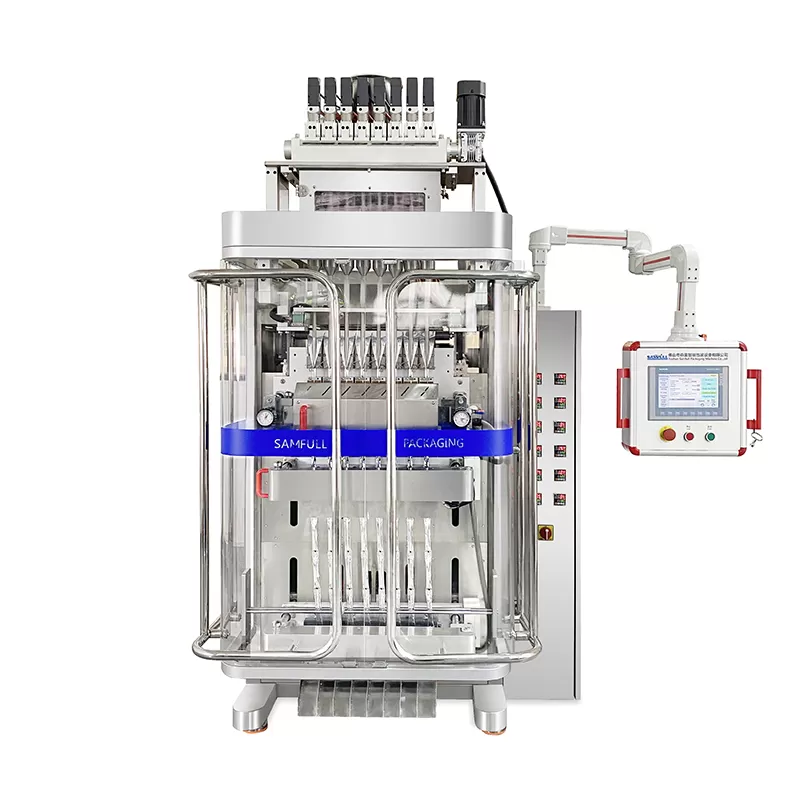

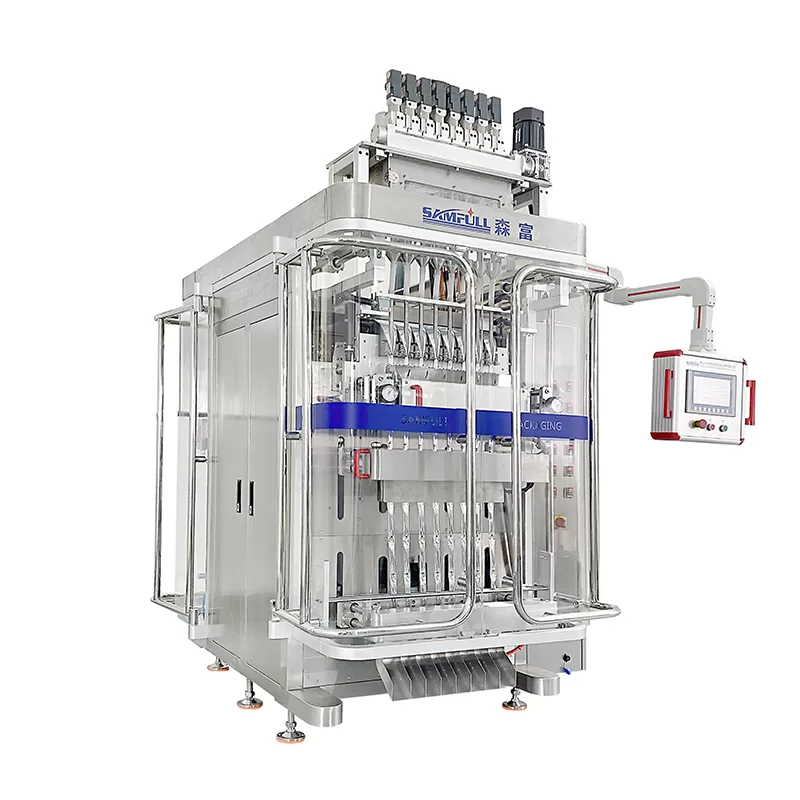

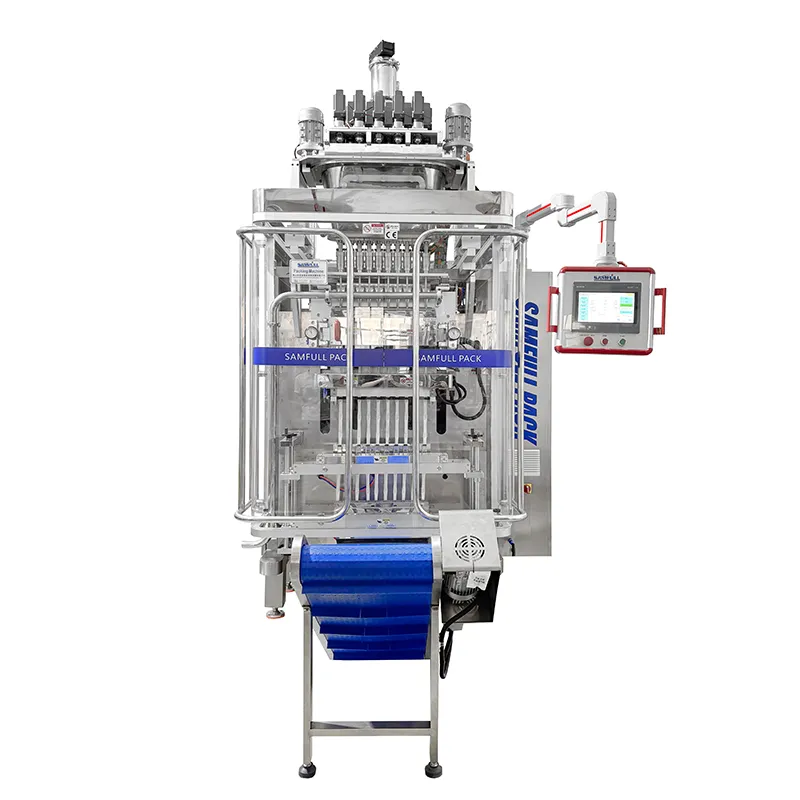

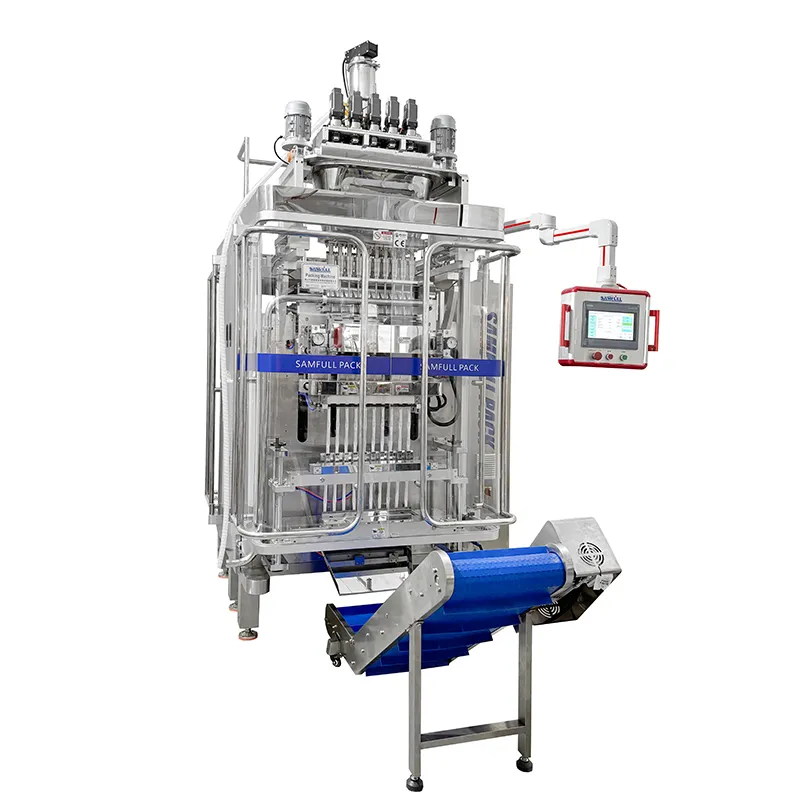

Stick Pack Machine
Technical details
| Capacity | 25-45 cycle/min, 80-500 bag/min |
| Stick bag length | Max.300mm |
| Stick bag width | Max.70mm |
| Filling method | Servo motor auger filler |
| Weight range | 1-50ml |
| Film material | 1. Composite film 2. aluminium film |
| Cutting type | 1. straight cutting 2. zigzag cutting 3. round cutting |
APPLICATIONS
This powder stick pack machine is designed for high-speed, multi-lane packaging of free-flowing and semi-free-flowing powder products. Based on a mature 10-lane configuration, the system is scalable from 4 to 12 lanes, making it suitable for both medium and large-scale production.
The machine adopts a servo-driven auger dosing system, combined with a Siemens control platform, ensuring stable performance, high accuracy, and long-term reliability.
It is widely used in a wide range of powder products:
Beverage powder (instant drinks, electrolytes)
Health supplement powder (collagen, protein powder)
Pharmaceutical granules & powder
Milk powder / coffee powder
Functional powder (fiber, probiotics)
Seasoning powder / spice blends
BAG SAMPLES
VIDEOS

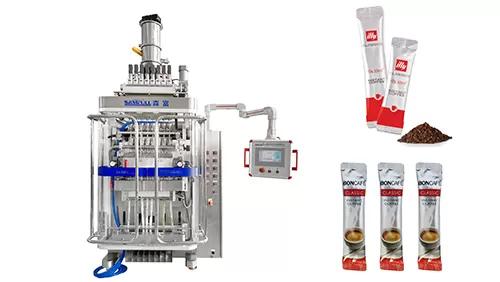

Round corner cutting stick pack
4 to 10 lanes powder stick pack

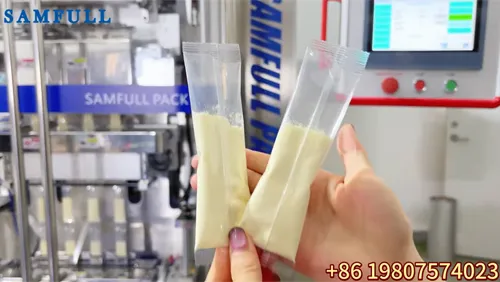

Dairy powder stick pack

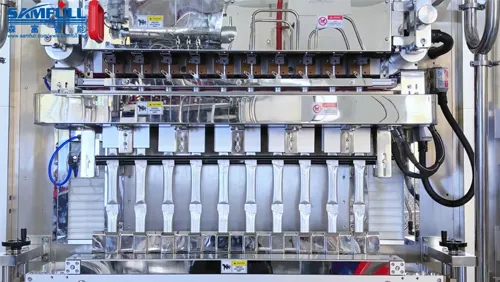

High speed powder stick pack
OPTIONAL DEVICES
1. Inspection & Quality Control Modules
1. Checkweigher (Weight Checking System)
2. Metal Detector
3. X-ray Inspection System (for high-end factories)
4. Automatic Reject System
2. Sorting & Conveying
1. Discharge Conveyor
2. Stick Pack / Sachet Collating System
3. High-speed Lane Diverter Conveyor
3. Counting & Grouping Systems
1. Automatic Counting Machine
2. Multilane Automatic Counting & Grouping Unit
3. Stacking System (for bundle packs)
4. Secondary Packaging Options
A. Cartoning
1. Automatic Carton Erector
2. Vertical / Horizontal Cartoning Machine
3. Multi-pack counting + automatic cartoning line
B. Bag-in-Bag Packaging
1. Automatic Bag-in-Bag Packaging System
2. Secondary VFFS / HFFS Machine
C. Jar / Can Filling
1. Stick Pack to Can/Bottle Filling Line
2. Automatic Capping and Labeling Systems
5. End-of-Line Packaging
1. Case Erector
2. Case Packer (Drop-type / Side-load)
3. Case Sealer
4. Robotic Palletizer
6. Labeling & Traceability Systems
1. Inkjet or Laser Coding System
2. Automatic Labeling Machine
7. Robotic Arm Applications (Pick-and-Place Robots)
1. Robotic Bag Sorting
2. Automatically picks and orients bags for downstream equipment.
3. Robotic Bag Loading
4. Loads single bags or grouped bags into:
Cartons
Trays
Display boxes
Buckets/cans
5. Robotic Grouping System
High-speed grouping of pouches/bags based on preset patterns.
6. Robotic Feeding to Case Packer
Ensures continuous feeding without manual intervention.
8. Front-end Feeding & Preparation System
Powder Mixing Machine
Screw Conveyor / Auger Feeder
Bucket Elevator / Z-type Conveyor
Vibratory Feeder
Vacuum feeder
DESCRIPTION

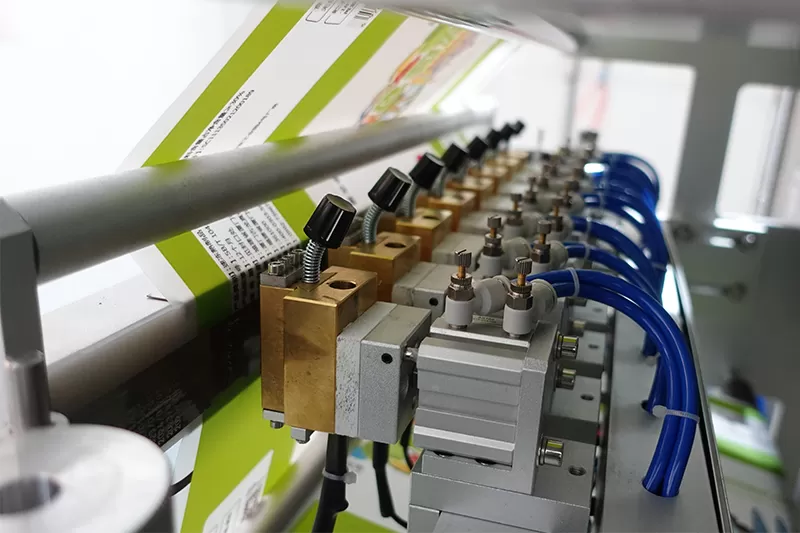

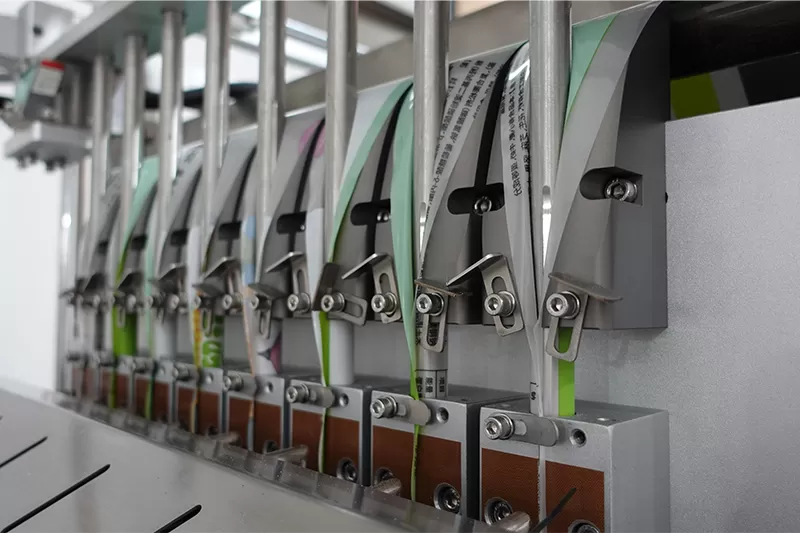

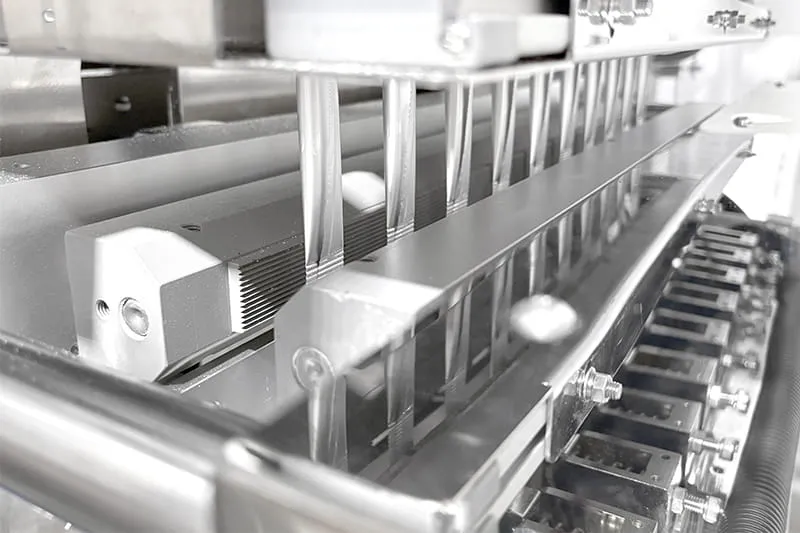

Independent lane forming with unified film tracking
Servo-driven film pulling system ensures:
Stable bag length
Minimal deviation between lanes
Compatible with:
Laminated film
Paper-laminated film (as in production spec)

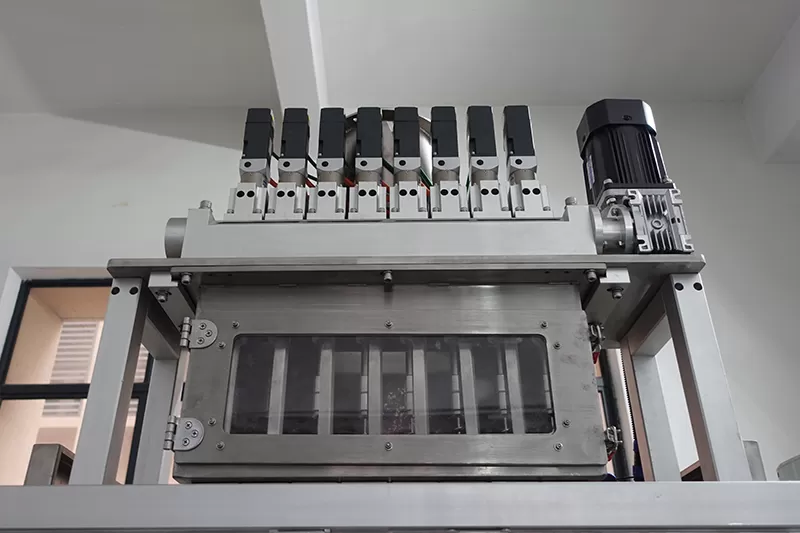

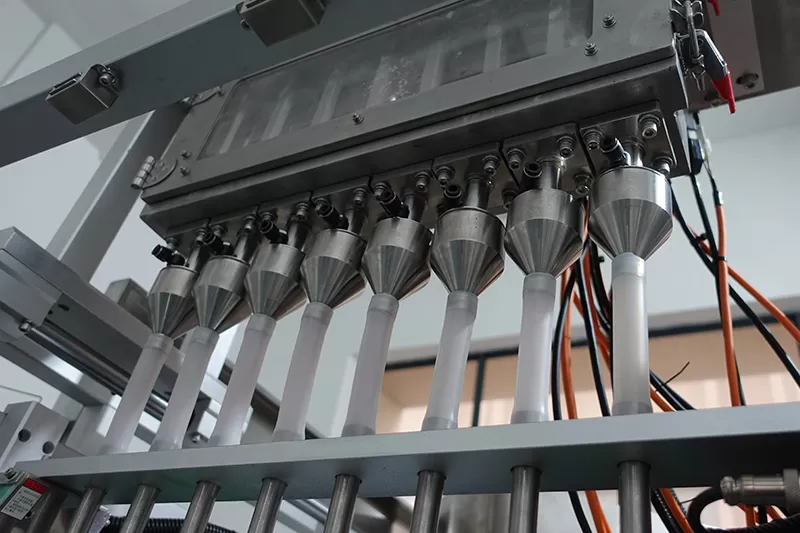

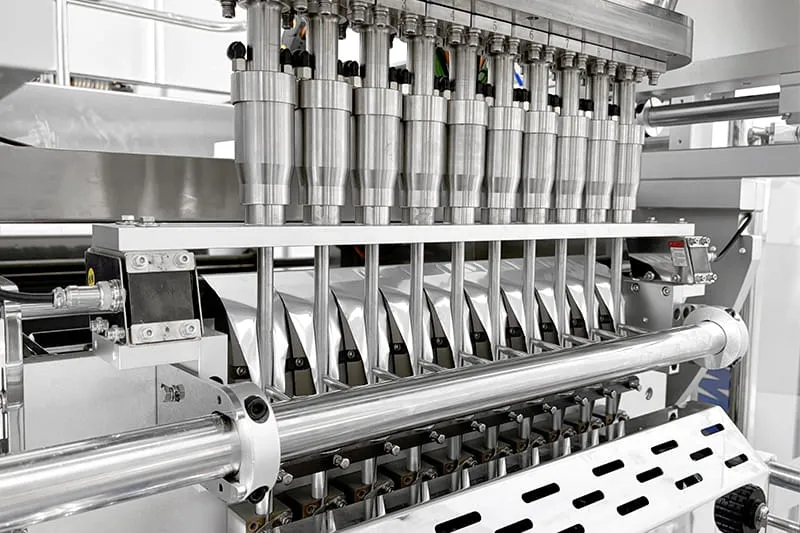

Each lane equipped with independent auger dosing unit
Designed for:
Beverage powder
Nutritional powder
Pharmaceutical granules
Accuracy:
±1–3% (based on flowability and bulk density)
Engineering advantage:
Stable dosing at high speed (45–50 bpm/lane)
No bridging with proper hopper design
Easy parameter adjustment via PLC

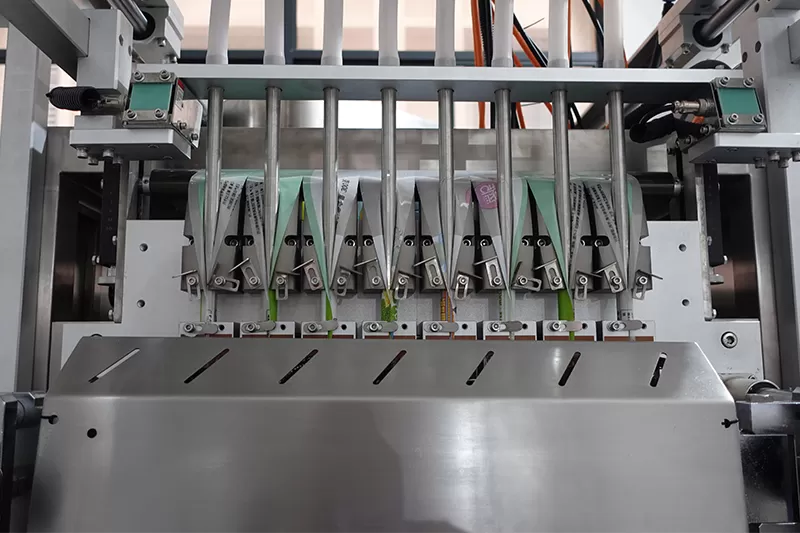

Back sealing stick pack structure

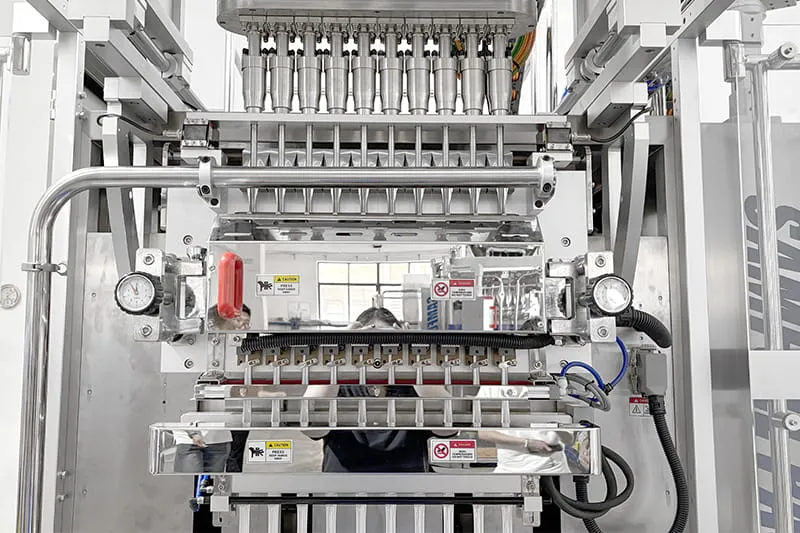

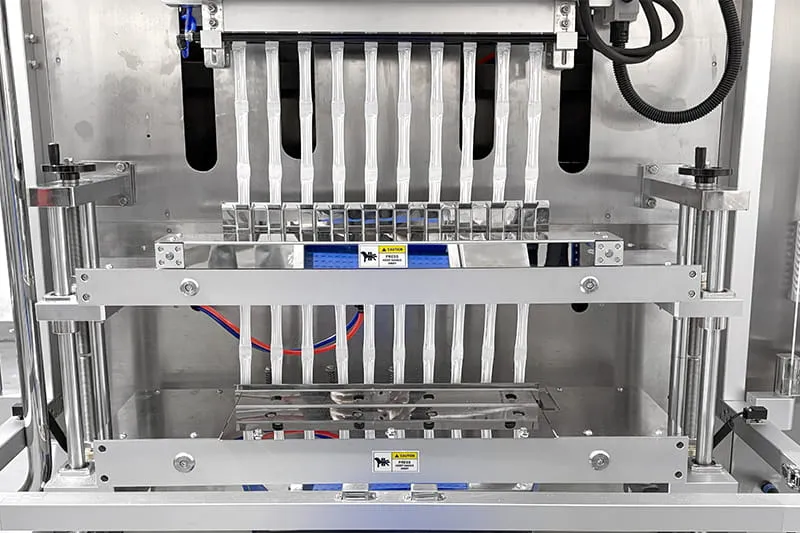

Horizontal sealing with:
Stable temperature control
Consistent pressure distribution
Optional:
Round corner cutting
Easy-tear notch
Pattern sealing (grid, straight line)
Siemens PLC + HMI
Multi-lane synchronization logic
Real-time monitoring:
Speed per lane
Alarm diagnostics
Output tracking
| Parameter | Specification |
|---|---|
| Lanes | 4–12 lanes |
| Filling Range | 1–30g |
| Speed | 30–50 packs/min/lane |
| Total Output | Up to 500+ packs/min |
| Sachet Width | 17–70 mm |
| Sachet Length | 50–300 mm |
| Sealing Type | Stick pack (back seal) |
| Film Type | Laminated / paper laminated |
| Film Thickness | 6–12 μm |
| Control System | Siemens |
| Power Supply | 220V / 380V, 50/60Hz |
Collagen powder
Protein powder
Electrolyte mix
Fine granules
Sachet dosage powder
Instant drink powder
Coffee powder
Milk powder
Detergent powder
Functional cleaning powder
This machine is not just a standalone unit — it is designed as a front-end module of a full packaging line:
Integrated with automatic counting and cartoning system
→ Powder stick pack counting & cartoning line
Multiple sticks counted and inserted into doypack / zipper bags
→ Powder stickpack bag-in-bag packing line
For larger dose or different positioning
→ Powder sachet multilane packing machine
Based on real production benchmarks:
Output stability: ±1–2% fluctuation
Acceptable defect rate: ≤0.3%
Continuous operation capability: 24h
Critical factors for stability:
Powder flowability control
Film quality consistency
Auger calibration
True multi-lane synchronization (not pseudo multi-lane)
Scalable from 4 to 12 lanes
Ready for full-line integration
Suitable for export markets with Siemens system
Adaptable to multiple downstream packaging formats
1. What powder types are NOT suitable?
Highly hygroscopic, ultra-light powders or sticky powders require customized hopper, stirring, or vacuum feeding systems.
2. How to ensure consistency across lanes?
Independent auger calibration + unified film control system ensures uniform weight and bag size.
3. Can this machine support future line upgrades?
Yes. Interface can be reserved for:
Cartoning
Pouch loading
Bulk packaging
4. What is the main limitation of multi-lane machines?
Film quality and powder flowability directly affect stability — upstream material control is critical.
If you are planning to scale your powder packaging production or build a complete stick pack packaging line, this machine is the ideal starting point.
Contact us for:
Layout design
Line integration proposal
Real production video
