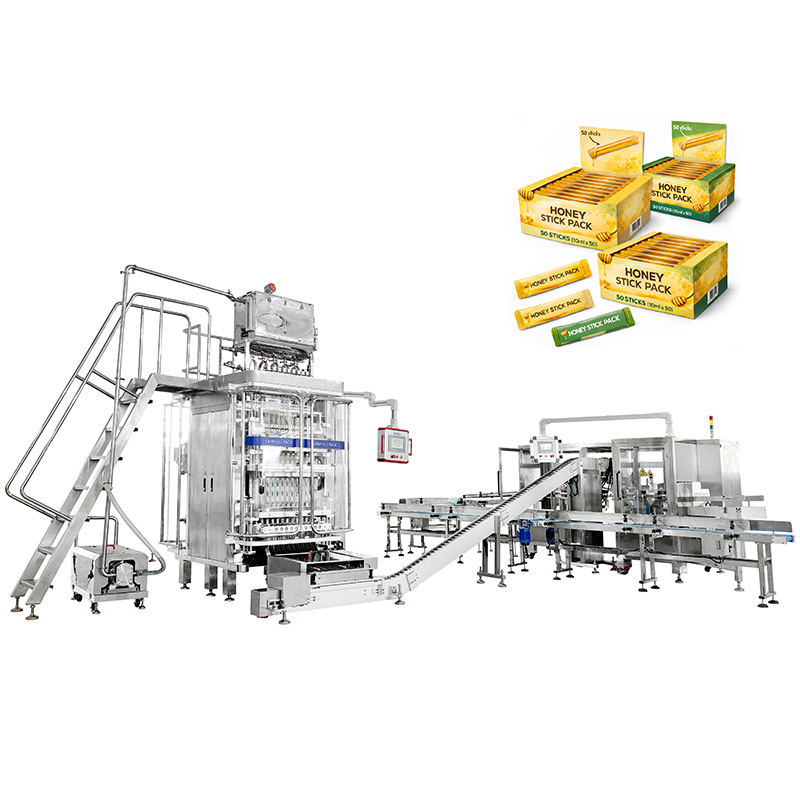

Key Highlight of This Project

50 Sticks per Box – Fully Automatic Line

• Automatic stick pack production

• Automatic counting

• Ordered arrangement (aligned feeding)

• Automatic grouping (50 pcs)

• Automatic cartoning

No manual intervention required

Core Advantage: Ordered Arrangement for Premium Packaging

One of the biggest challenges in stick pack packaging is how to handle products before cartoning.

This project adopts an advanced solution:

✔ Ordered Arrangement System

• Stick packs are automatically aligned and oriented

• Products are arranged in a neat and structured layout

• Each batch contains exactly 50 sticks in order

Why Ordered Arrangement Matters

1. Premium Packaging Appearance

• Clean and organized layout inside the box

• Ideal for retail and nutraceutical products

2. Higher Product Value Perception

For products like:

• Honey sticks

• Liquid supplements

• Functional nutrition

Better packaging = stronger brand positioning

3. Stable Cartoning Process

• Smooth feeding into cartons

• Reduced product jam

• Higher cartoning efficiency

Product & Packaging Specifications

Product Information

• Product: Honey

• Weight: 10g per stick

Stick Pack Specifications

• Width: 25 mm

• Length: 100–140 mm (adjustable)

• Film width: 600 mm

• Laminated film (7–11c)

Sealing & Cutting

• Back sealing

• Anti-leak serrated sealing

• Easy-tear notch

• Rounded corner cutting

Production Performance

• Speed: 30–35 cycles/min

• Filling accuracy: ±5%

• Coding: 3-line ribbon printing

Carton Specifications

• Quantity: 50 sticks per box

• Box type: tuck-in top + bottom lock

• Box size: 110 × 98 × 110 mm

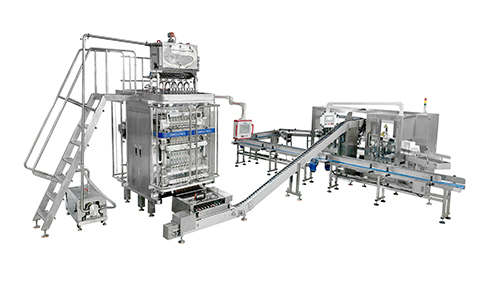

Production Workflow

Liquid → Filling → Sealing → Cutting → Coding →
Counting → Ordered Arrangement (50 pcs) → Cartoning → Output

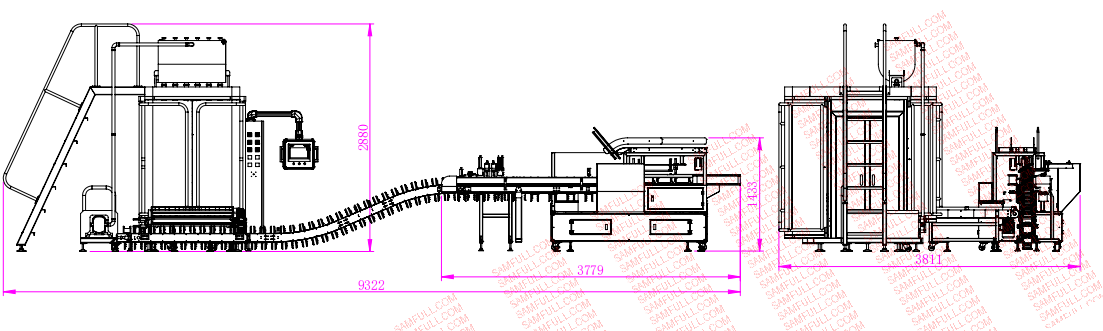

Layout drawing of Honey Stick Pack Packaging Line with Ordered Arrangement & Cartoning (50 Sticks per Box)

Technical Solution for Ordered Arrangement

To achieve precise alignment, the system includes:

• Controlled conveyor with orientation mechanism

• Counting + buffering system

• Grouping unit for fixed quantity

This ensures:

 Every box = 50 sticks, neatly arranged and ready for cartoning

Comparison: Ordered vs Random Packing

Application Industries

This solution is widely used in:

• Nutraceutical industry

• Food industry

• Pharmaceutical liquids

FAQ – Liquid Stick Pack Packaging Line with Cartoning

1. Can this system handle products other than honey?

Yes. It is suitable for:

• Liquid supplements

• Herbal extracts

• Syrups

• Functional nutrition liquids

2. What is the advantage of ordered arrangement?

Ordered arrangement provides:

• Better product presentation

• Higher packaging quality

• More stable cartoning process

3. How does the system ensure accurate filling?

The system uses a servo piston pump, ensuring:

• Stable dosing

• High accuracy (±1%–5%)

• Reliable performance for viscous liquids

4. Can this line be fully automated?

Yes. It includes:

• Automatic counting

• Automatic arrangement

• Automatic cartoning

5. Can the number of sticks per box be customized?

Yes. Common options:

• 10 sticks

• 20 sticks

• 50 sticks

• Custom quantities

6. What industries is this suitable for?

• Nutraceutical

• Pharmaceutical

• Food

7. How is cleaning handled?

• CIP cleaning system

• Stainless steel structure

• Easy maintenance design




8. Can the system be customized?

Yes. Based on:

• Product type

• Packaging size

• Output requirement

• Factory layout
