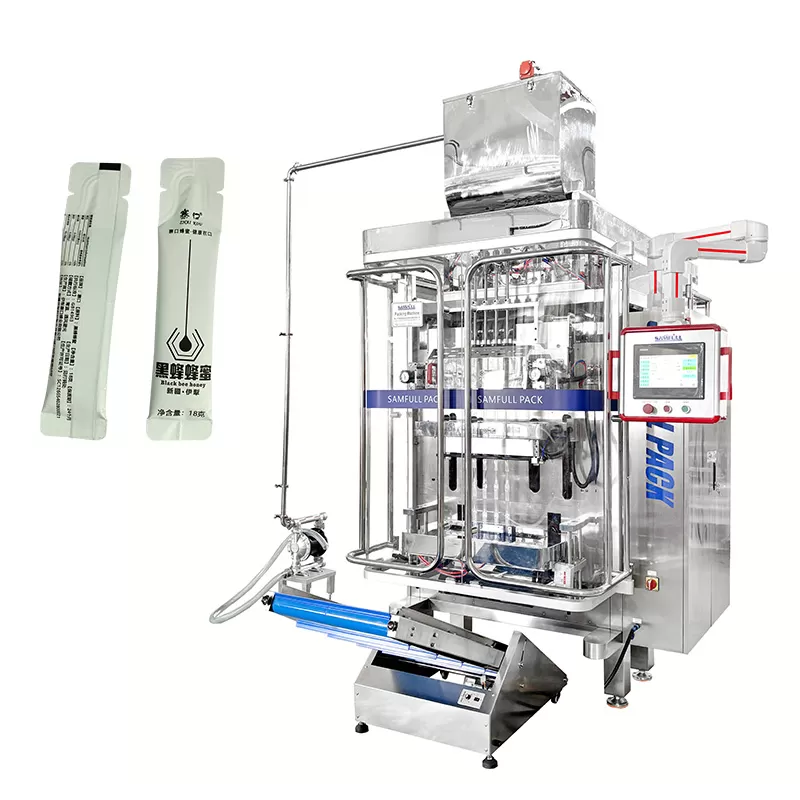

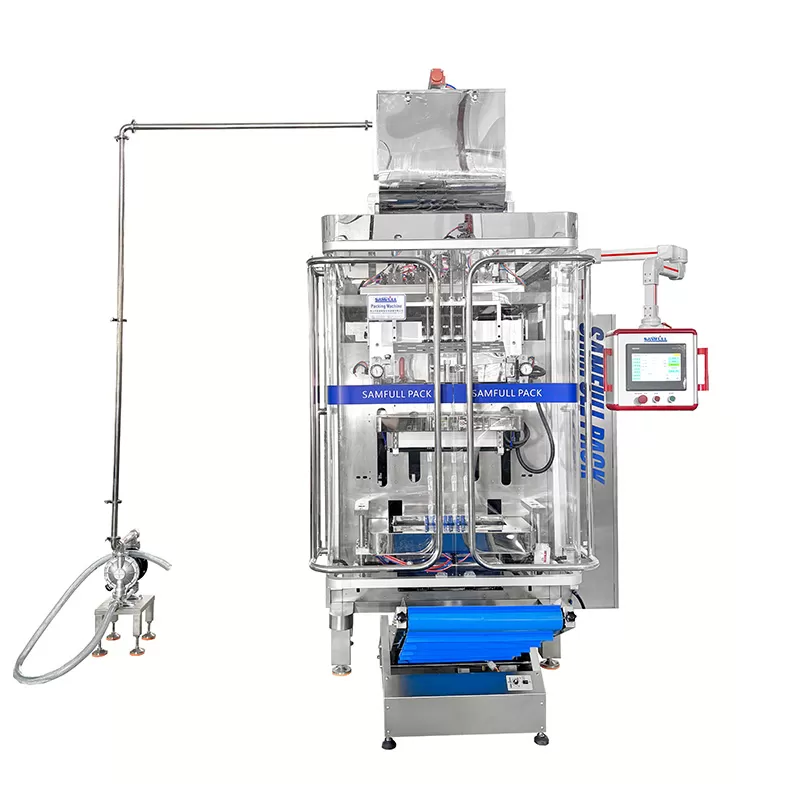

Four Lanes High Speed Honey Stick Filling Machine

Technical details

Capacity	30-45 cycle/min ( Depend on the features of material )
Stick bag length	Max.180mm
Stick bag width	Max.70mm
Filling method	1. piston pump 2. ceramic pump 3. peristaltic pump
Weight range	1-100ml
Film material	1. Composite film 2. aluminium film
Cutting type	1. straight cutting 2. zigzag cutting 3. round cutting

Inquire Now

APPLICATIONS

The 4-lane high-speed honey round-corner stick filling machine, used by our Mexico factory customer, delivers fast and stable production for viscous products.
Each lane produces 41 sticks/min, reaching 164 sticks/min in 4-lane mode.
It uses a precision piston pump for accurate filling, forms round-corner stick sachets, and supports date printing for full traceability.

A reliable, hygienic, and efficient solution for high-volume honey packaging.

As a manufacturer with 15+ years of experience in packaging machine design and production, we have accumulated rich experience in both the food and non-food fields.

Just tell us your packaging requirements and we will provide you with the most suitable solution.

Whatsapp/Wechat/Phone: +86 19807574023

E-mail: service@samfull.com

BAG SAMPLES

VIDEOS

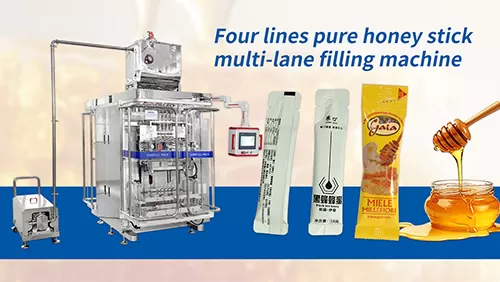

Round corner honey stick filling

OPTIONAL DEVICES

1. Dosing Systems: available with piston pump, ceramic pump, or peristaltic pump for accurate filling of different viscosities.

Our Mexico factory customer uses the piston pump system for high-viscosity honey.

2. Easy-Open Tear Notch: optional tear-notch design for convenient sachet opening.

3. Flexible Bag Styles: multiple sealing patterns and stick-pack shapes, including round-corner honey stick sachets.

4. Downstream Automation: compatible with automatic counting and repackaging systems, including box cartoning machines, VFFS vertical form-fill-seal machines, and premade pouch packing machines.

5. Finished Product Conveyor: stable output conveyor for smooth transfer of completed honey round-corner sticks.

6. Code Printing Options: compatible with laser marking printers, thermal transfer printers, ribbon code printers, and hot-stamp coding systems.

7. Cutting Methods: supports straight cutting, zigzag cutting, and round-corner cutting.

DESCRIPTION

Our Advantages – Optimized for Honey Stick Packaging

1. 304 Stainless Steel Hygienic Structure
The entire machine adopts 304 stainless steel, fully meeting food QS and GMP hygiene standards, ensuring clean and safe production for sticky materials like honey.

2. Enhanced Safety Design
Built-in safety protection systems comply with enterprise-level production safety requirements, especially important for high-speed honey stick packaging environments.

3. High-End Electrical System for High Viscosity Products
Equipped with imported electrical components and Siemens PLC + touch screen control, offering intelligent automation, stable running, and excellent performance even when filling high-viscosity honey at high speed.

4. Accurate Temperature Control for Strong Sealing
Independent temperature control units ensure precise heating, producing firm, smooth, and leak-proof seals, which is critical for honey stick packs.

5. Servo Film Transport & Auto Correction
Servo film pulling/clamping ensures stable bag forming even with thick honey films.
6. Color-mark tracking and sealing/cutting deviation correction can be adjusted directly on the touch screen, making honey stick production more stable and easy to operate.

7. 4–12 Lane Customization for Honey Output
Supports 4 to 12 lanes depending on stick width.
Perfect for high-volume honey production—such as our Mexico factory customer, who uses a 4-lane honey stick system to reach 164 sticks/min with round-corner sachets.

8. Full Automation Ready
Can be connected to piston pump dosing systems, automatic counting machines, cartoners, VFFS machines, and premade pouch packing machines to build a fully automated honey stick production line.
