Powder Packaging Solutions
Technical details
| Capacity | 45 cycle/min, Up to 450 bags/min |
| Stick bag length | 125 mm (max 170 mm) |
| Stick bag width | 35mm |
| Filling method | Servo motor auger filler |
| Weight range | 10g (adjustable) |
| Film material | Laminated film / paper-based film |
| Cutting type | Mesh pattern |
APPLICATIONS
This electrolyte powder stick pack machine is specifically engineered for high-speed packaging of drink powder, electrolyte supplements, and instant beverage mixes.
Designed with a 10-lane full servo system, it delivers stable output, high precision dosing, and consistent seal quality, making it ideal for sports nutrition, hydration products, and functional beverage industries.
This solution is particularly suitable for brands targeting on-the-go hydration formats, such as single-dose stick packs.
This machine is widely used for:
Electrolyte powder (hydration salts)
Sports drink powder
Vitamin drink mix
Energy drink powder
Oral rehydration salts (ORS)
Functional nutrition powders
Instant beverage sachets

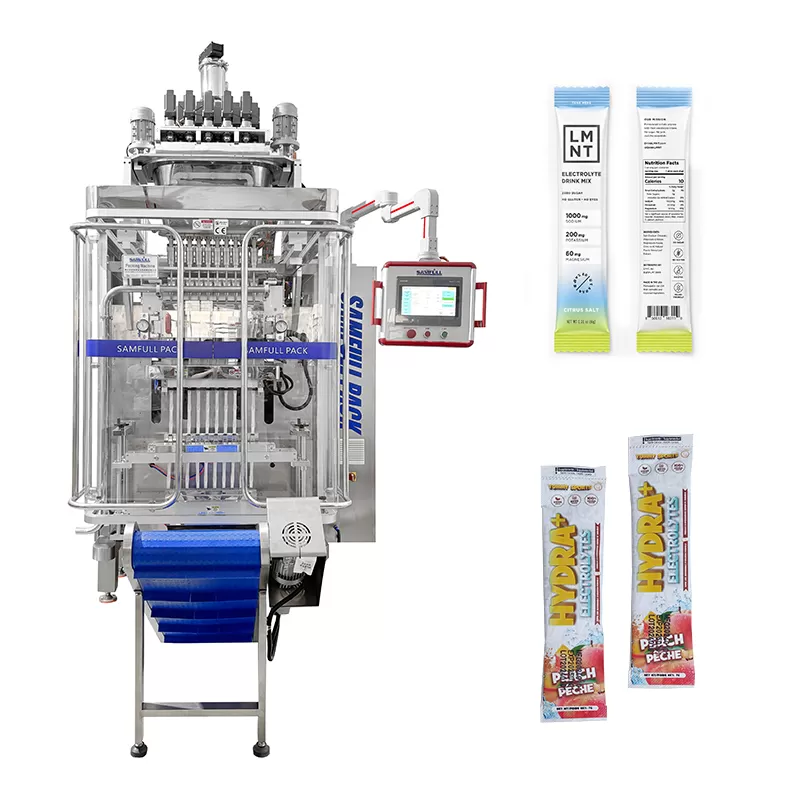

BAG SAMPLES
VIDEOS

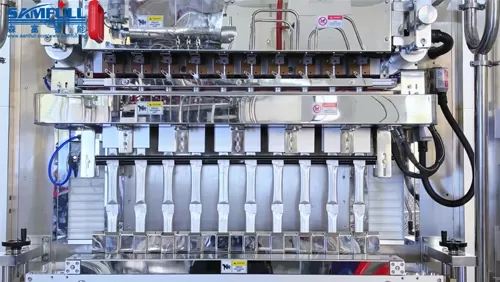

High speed powder stick pack

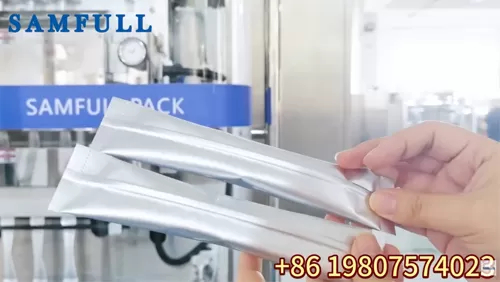

Drinking powder stick pack
OPTIONAL DEVICES
1. Inspection & Quality Control Modules
1. Checkweigher (Weight Checking System)
2. Metal Detector
3. X-ray Inspection System (for high-end factories)
4. Automatic Reject System
2. Sorting & Conveying
1. Discharge Conveyor
2. Stick Pack / Sachet Collating System
3. High-speed Lane Diverter Conveyor
3. Counting & Grouping Systems
1. Automatic Counting Machine
2. Multilane Automatic Counting & Grouping Unit
3. Stacking System (for bundle packs)
4. Secondary Packaging Options
A. Cartoning
1. Automatic Carton Erector
2. Vertical / Horizontal Cartoning Machine
3. Multi-pack counting + automatic cartoning line
B. Bag-in-Bag Packaging
1. Automatic Bag-in-Bag Packaging System
2. Secondary VFFS / HFFS Machine
C. Jar / Can Filling
1. Stick Pack to Can/Bottle Filling Line
2. Automatic Capping and Labeling Systems
5. End-of-Line Packaging
1. Case Erector
2. Case Packer (Drop-type / Side-load)
3. Case Sealer
4. Robotic Palletizer
6. Labeling & Traceability Systems
1. Inkjet or Laser Coding System
2. Automatic Labeling Machine
7. Robotic Arm Applications (Pick-and-Place Robots)
1. Robotic Bag Sorting
2. Automatically picks and orients bags for downstream equipment.
3. Robotic Bag Loading
4. Loads single bags or grouped bags into:
Cartons
Trays
Display boxes
Buckets/cans
5. Robotic Grouping System
High-speed grouping of pouches/bags based on preset patterns.
6. Robotic Feeding to Case Packer
Ensures continuous feeding without manual intervention.
8. Front-end Feeding & Preparation System
Powder Mixing Machine
Screw Conveyor / Auger Feeder
Bucket Elevator / Z-type Conveyor
Vibratory Feeder
Vacuum feeder

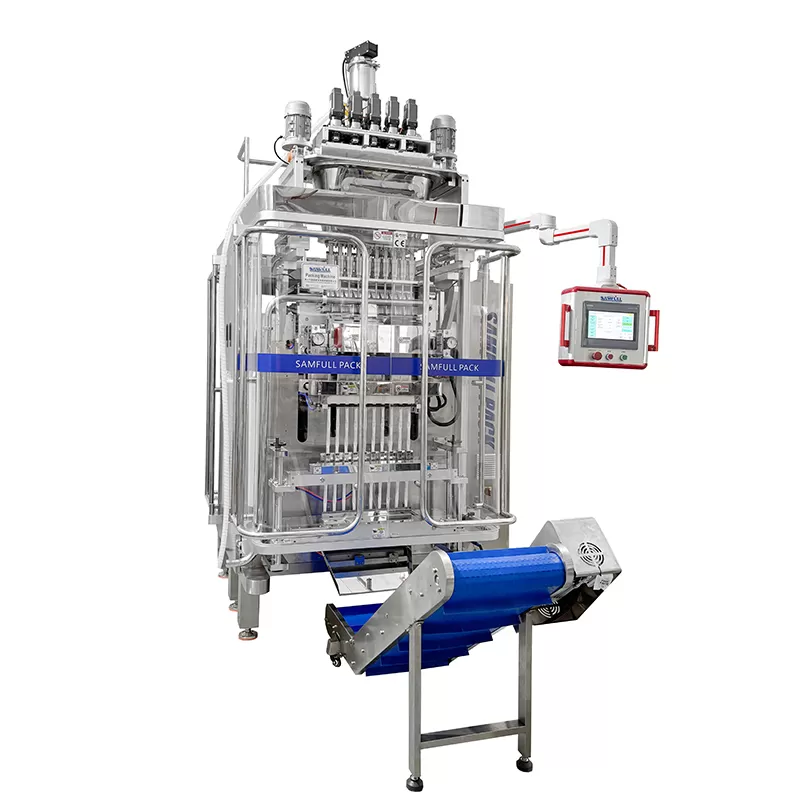

DESCRIPTION
Model: SF-850
Type: 10-lane stick pack machine (back sealing)
Product: Beverage powder / electrolyte powder
Filling weight: 10g (± tolerance adjustable)
Dosing system: Volumetric auger filler (10 lanes)
Speed: 45 bags/min/lane
Total output: 450 bags/min
Bag type: Stick pack (back seal)
Width: 35 mm
Length: 125 mm (adjustable up to 170 mm)
Film type: Laminated film / paper-based film
Thickness: 6–10 micron
With 10 synchronized lanes, the machine ensures:
Large-scale production capability
Consistent output for mass-market beverage products
Equipped with multi-head auger fillers, ensuring:
Stable filling for fine powders
Accurate dosing even for lightweight 10g packs
Back sealing with optional round corner cutting
Strong seal integrity for powder products
Compatible with moisture-sensitive formulations
Acceptance standard: ≤0.3% defective rate
High repeatability across all lanes
Supports:
Straight cut / round corner
Easy tear notch
Multiple film structures
| Item | Specification |
|---|---|
| Machine Model | SF-850 |
| Machine Type | Multi-lane stick pack (back sealing) |
| Number of Lanes | 10 lanes |
| Product Type | Beverage powder / electrolyte powder |
| Filling Range | 10g (adjustable) |
| Dosing System | Auger filler (10 lanes) |
| Speed | 45 bags/min/lane |
| Total Output | Up to 450 bags/min |
| Bag Type | Stick pack (back seal) |
| Bag Width | 35 mm |
| Bag Length | 125 mm (max 170 mm) |
| Film Type | Laminated film / paper-based film |
| Film Thickness | 6–10 micron |
| Sealing Type | Back seal + optional round corner |
| Cutting Type | Straight cut / round corner |
| Easy Tear | Linear tear notch |
| Sealing Pattern | Mesh pattern |
| Machine Material | SUS304 (contact parts optional SUS316) |
| Control System | Siemens PLC |
| Power Supply | 240V, 3 Phase, 60Hz |
| Language | English / Chinese |
| Defect Rate | ≤0.3% |
This solution is ideal for brands that:
Produce electrolyte powders for sports and hydration
Require high-speed stick pack packaging
Need portable single-dose formats
Target retail, gym, pharmacy, or e-commerce channels
The machine can be upgraded into a full packaging line:
Stick pack → counting system → cartoning machine
Stick pack → bulk packing (into bags or cartons)
Future expansion is supported with reserved interfaces.
Yes. The auger dosing system is designed for free-flowing fine powders, ensuring stable filling accuracy.
Yes. The sealing system supports laminated barrier films, protecting electrolyte powders from humidity.
Yes. Length is adjustable up to 170mm, width can be customized based on requirements.
Yes. The machine is compatible with:
Single formulation powders
Multi-ingredient blends (with good flowability)
Yes. It is designed for future integration with cartoning or secondary packaging lines.
This electrolyte powder stick pack machine offers a reliable, scalable, and high-efficiency solution for modern beverage powder packaging.
With 10-lane high-speed production, precise dosing, and flexible packaging formats, it is an ideal choice for brands entering or scaling in the hydration and functional beverage market.
