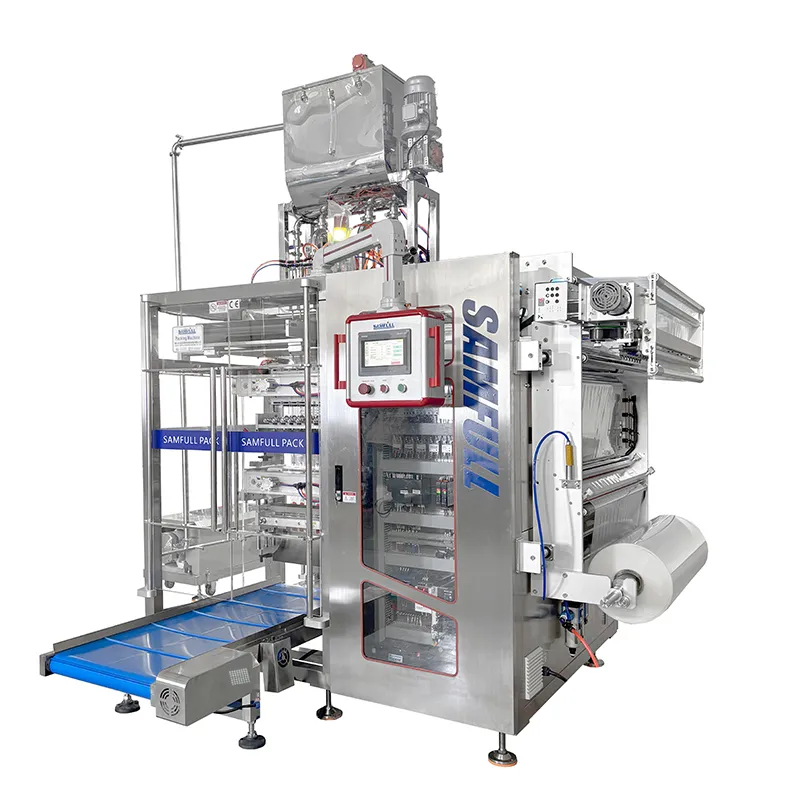

Sachet Packing Machine
Technical details
| Capacity | 30-45 cycle/min ( Depend on the features of material ) |
| Sachet length | Max.180mm |
| Sachet width | Max.120mm |
| Filling method | 1. piston pump 2. ceramic pump 3. peristaltic pump |
| Weight range | 1-150ml |
| Film material | 1. Composite film 2. aluminium film |
| Cutting type | 1. straight cutting 2. zigzag cutting 3. continuous cutting |
APPLICATIONS
It is suitable for a wide range of liquid and semi-liquid products, as the filling system can be configured based on material characteristics, including:
- Water-based liquids
- Beverage concentrates
- Syrups
- Functional drinks
- Gel or semi-liquid products
For specialized applications such as long-format frozen liquid products, this system can be adapted to produce extended sachets with reinforced sealing structures.

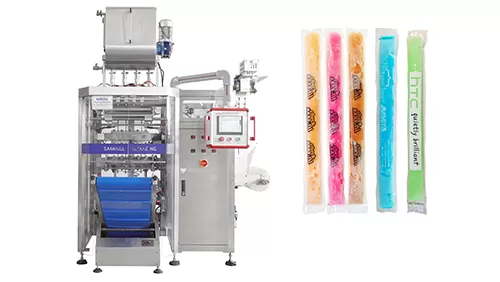

For example, ice pop products (long sachet up to 200–250mm) require enhanced film stability and sealing strength.
→ See: Ice Pop Long Sachet 4-Side Seal Packing Machine
In addition to standard sachets, the machine can also be configured for irregular-shaped 4-side seal sachets, which are widely used in cosmetic, gel, and premium liquid packaging.
→ See: Irregular Shape 4-Side Seal Sachet Packing Machine
BAG SAMPLES
VIDEOS
Cosmetic cream sachet machine

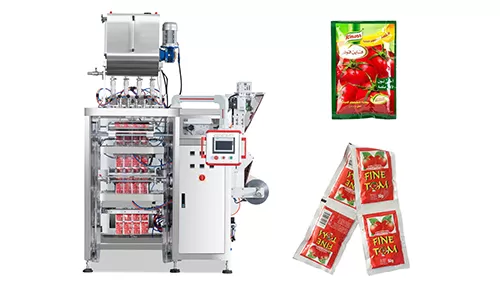

Standard four sides seal sachet
OPTIONAL DEVICES

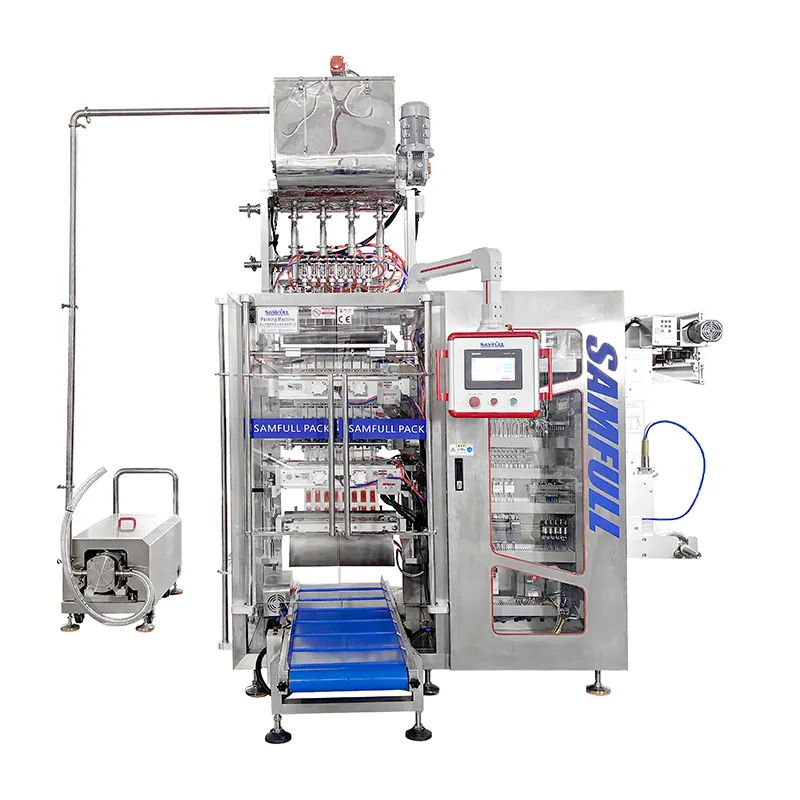

Includes storage tank + transfer pump
Continuous supply of liquid to hopper
Purpose:
Ensures stable feeding and avoids production interruption
Recommended for:
High-speed multilane production
Long continuous operation
Maintains constant liquid level in hopper
Automatic feeding control
Purpose:
Prevents filling fluctuation caused by pressure variation
Critical for:
Multilane synchronization
Small-dose accuracy
Automatic internal cleaning of pipelines and pump system
No need for manual disassembly
Purpose:
Reduces downtime and improves hygiene
Recommended for:
Food and beverage applications
Frequent product switching
Eliminates static on film surface
Improves film separation and stability
Purpose:
Prevents film misalignment and feeding issues
Important for:
Thin film materials
High-speed multilane machines
Prints production date, batch number, or QR code
Synchronized with machine speed
Purpose:
Ensures product traceability and compliance
Options:
TTO (thermal transfer)
Laser coding
Anti-drip design for liquid filling
Prevents contamination in sealing area
Purpose:
Improves sealing quality and reduces leakage risk
Critical for:
Syrup
Slightly viscous liquids
Temperature-controlled hopper
Maintains material flow consistency
Purpose:
Improves filling stability for thick or temperature-sensitive liquids
Recommended for:
Gel products
Semi-viscous liquids
Injects nitrogen into sachet before sealing
Purpose:
Extends shelf life and reduces oxidation
Applicable for:
Beverage
Food liquid products
Automatic product discharge
Optional rejection system
Purpose:
Improves downstream handling efficiency
Connects packing machine with cartoning system
Purpose:
Enables fully automated packaging process
Reduces labor cost
Optional configurations should be selected based on:
Liquid characteristics (viscosity, hygiene requirement)
Production speed and lane number
Level of automation required
DESCRIPTION
4–6 lanes → medium production
6–8 lanes → high output
8–12 lanes → industrial-scale production
Increasing lanes improves output but requires:
Precise synchronization
Stable mechanical balance
Ensures high productivity with controlled stability
This liquid sachet packing machine supports multiple filling systems:
Suitable for small-dose or higher viscosity liquids
High precision control
Ultra-high accuracy
Suitable for pharmaceutical applications
Hygienic and easy to clean
Suitable for sensitive liquids
Pump selection depends on viscosity, hygiene requirements, and accuracy needs
30–45 cycles/min (depending on material)
Maintaining synchronization across all lanes
Preventing filling variation
PLC-based motion control
Optimized timing between filling and sealing
Ensures stable multilane high-speed packing
Composite film
Aluminium film
Controlled tension system
Balanced film feeding
Smooth film tracking
Consistent sachet forming
Liquid contamination at sealing area
Optimized sealing pressure and temperature
Uniform sealing across lanes
Strong sealing performance
Reduced leakage
Supported cutting types:
Straight cutting
Zigzag cutting
Continuous cutting
Clean edge formation
Consistent sachet separation
| Item | Specification | Notes |
|---|---|---|
| Machine Type | Liquid sachet packing machine | Multilane system |
| Lane Range | 4–12 lanes | Flexible configuration |
| Capacity | 30–45 cycles/min | Material dependent |
| Filling Method | Piston / Ceramic / Peristaltic | Optional |
| Filling Range | 1–150 ml | Wide application |
| Sachet Width | Up to 120 mm | Adjustable |
| Sachet Length | Up to 180 mm | Adjustable |
| Film Material | Composite / Aluminium film | Standard |
| Cutting Type | Straight / Zigzag / Continuous | Optional |
| Control System | PLC (Siemens or equivalent) | Stable |
| Machine Frame | SUS304 | Food-grade |
Example (8-lane configuration):
40 cycles/min × 12 lanes = 480 sachets/min
480 × 60 × 8h = 230400 sachets per shift
Suitable for:
Beverage production lines
Pharmaceutical packaging
Food processing plants
Contract packers
| Liquid Type | Recommended Pump | Key Focus |
|---|---|---|
| Water-like liquid | Peristaltic | Hygiene |
| Syrup | Piston | Accuracy |
| Gel | Piston / Ceramic | Flow stability |
| Pharma liquid | Ceramic | Precision |
→ Scalable production capacity
→ Suitable for various liquid types
→ Up to 45 cycles/min
→ Low leakage rate
→ Food, pharma, beverage industries
To maintain stable operation:
Pump synchronization
Film tension balance
Sealing temperature control
Timing coordination
These determine production consistency and yield rate
Automatic feeding system
Liquid level control system
Coding system (TTO / laser)
CIP cleaning system
Anti-static device
This liquid sachet packing machine is designed as a standard multilane platform for liquid products.
It offers:
Flexible lane configuration (4–12 lanes)
Adaptable filling systems
Stable high-speed packing performance
Suitable for scalable and continuous liquid sachet production
