Ice Pop Packaging and Cartoning System – 8 Lane 4 Side Seal Automatic Line

Product & Packaging Definition

Ice Pop Product Characteristics

• Product type: Juice-based liquid ice pop

• Filling temperature: approx. 35°C (liquid state before freezing)

• Filling weight: 56.7 g

• Process: liquid filling → sealing → downstream freezing

Packaging Specifications (Critical Parameters)

• Bag type: 4 side seal sachet

• Bag width: 40 mm

• Bag length: 210–230 mm

• Film width: 660 mm (8-lane configuration)

Sealing Structure

• Horizontal seal: 7 mm

• Vertical seal: 5 mm

• Sealing type: pattern seal (metal to silicone)

Cutting Design

• Straight cut

• Easy-tear notch on both sides

Engineering implication:

• Dual easy-tear improves consumer usability

• Long sachet structure requires stable sealing strength

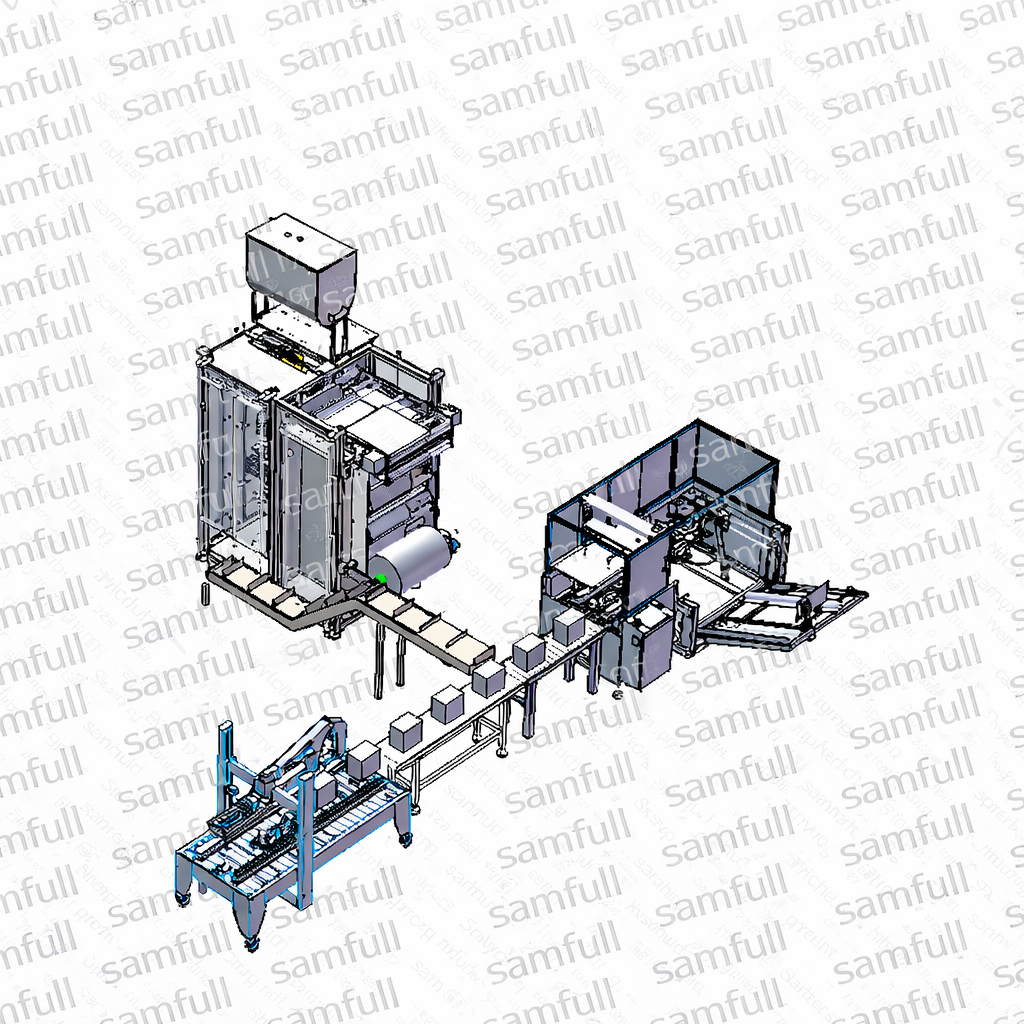

3D Layout Drawing of  Ice Pop Packaging and Cartoning System

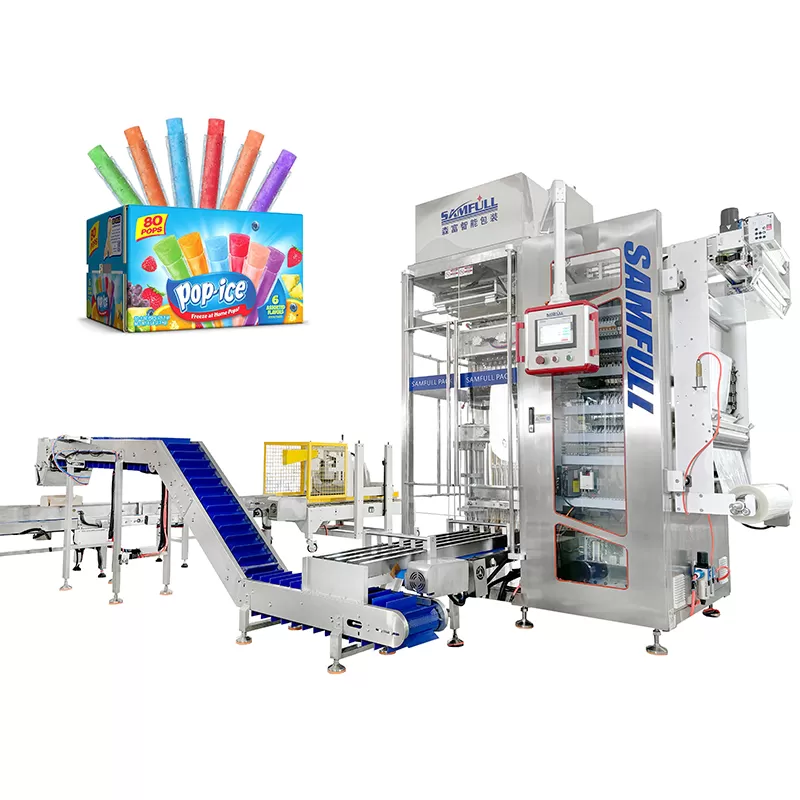

System Architecture – Full Automatic Line (Based on Production Order )

1. Multilane Ice Pop Packaging Machine

• Model: SF720

• Configuration: 8 lanes simultaneous production

• Frame: SUS304 stainless steel

Core Features

• Safety interlock (door-open auto stop)

• Stable multilane synchronization

• Optimized for long liquid sachet packaging

Engineering Challenges Solved

• Synchronization across 8 lanes

• Stable film pulling for long sachets

• Coordination between filling and sealing

2. Multi-Flavor Liquid Feeding System

Configuration

• 4-flavor hopper system (top-mounted)

• Peristaltic pump dosing

• Independent channels for each flavor

Additional Design Features

• Hopper with CIP cleaning ports

• Liquid level sensors

• One-way control valves

• Connection to external 500L liquid tank

Engineering Value

• Simultaneous multi-flavor production

• Reduced cleaning downtime

• Stable continuous feeding

Why Peristaltic Pump?

• Suitable for multi-channel liquid distribution

• Eliminates cross-contamination

• Easier cleaning compared to piston systems

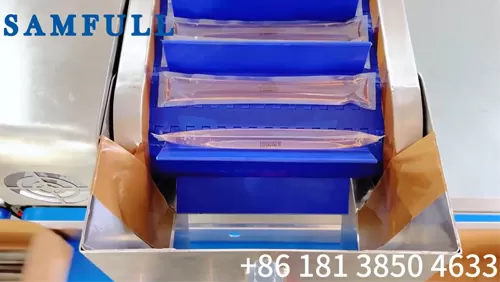

3. Automatic Counting and Arranging System

System Function

• Receives finished sachets from packaging machine

• Performs accurate counting and grouping

• Transfers grouped products to cartoning system

Configurable Output

• 16 sachets per box (retail format)

• 40 sachets per box (bulk format)

Engineering Challenge

Ice pop sachets are:

• Flexible

• Long and narrow

• Easy to overlap or jam

Solution

• Dedicated arranging conveyor structure

• Controlled timing and grouping logic

• Stable transfer into cartoning system

4. Cartoning System (Case Erecting + Loading + Sealing)

Included Modules

• Automatic case erector

• Product receiving conveyor

• Case sealing machine

System Capability

• Supports multiple carton sizes

• Adjustable loading configuration

• Fully automatic operation

Engineering Value

• Eliminates manual packing

• Ensures consistent quantity per box

• Improves overall production efficiency

Production Performance Analysis

Why This Speed is Optimal

The limitation comes from:

• Liquid filling cycle time

• Multilane synchronization

• Sealing and cooling requirements

This is a stability-focused design, not a maximum-speed configuration.

Key Engineering Highlights

1. Full Integration from Packaging to Cartoning

• No manual transfer required

• Continuous production flow

• Eliminates bottlenecks

2. Multi-Flavor Continuous Production

• 4 flavors processed simultaneously

• Independent channels

• Reduced downtime

3. High-Accuracy Counting System

• Fixed quantity per box

• Stable grouping performance

• Direct integration with cartoning

4. Upstream Integration Capability

• Connects to external liquid tanks

• Signal interface reserved

• Ready for full-line automation

FAQ – Ice Pop Packaging and Cartoning System

1. Can the system run continuously?

Yes. It is designed for long-hour continuous operation with stable feeding and synchronized control.

2. How is accurate box quantity ensured?

Through the integrated counting and grouping system before cartoning.

3. Is multi-flavor production stable?

Yes. Independent channels and peristaltic pumps ensure consistent performance.

4. Can the system connect to upstream mixing tanks?

Yes. It supports external tank connection with level sensors and signal integration.

Conclusion

This ice pop packaging and cartoning system is a complete industrial solution for manufacturers requiring:

• Multi-flavor production

• Automated secondary packaging

• Stable multilane operation

It delivers consistent product quality, accurate box packing, and reduced labor dependency.

Looking to build a fully automatic ice pop packaging and cartoning system?

Send us:

• Number of flavors

• Bag size

• Filling volume

• Quantity per carton

We will provide a customized multilane packaging and cartoning solution for your factory.
