Liquid Packaging Solutions
Technical details
| Module | Specification | Engineering Value |
| Machine Model | SF-720-6 | 6-lane industrial multilane system |
| Application | Ice pop (juice-based liquid) | Optimized for frozen stick products |
| Filling System | Piston pump dosing | High accuracy and anti-drip performance |
| Filling Weight | 65–90 ml | Stable operation for long stick format |
| Speed | 20–35 bags/min/lane | Stable operating range |
| Total Output | 120–150 bags/min | Factory-level production |
| Bag Type | Four side seal sachet | Strong sealing for liquid products |
| Bag Size | 40mm × 300mm | Long stick ice pop design |
| Customer Location | Philippines | Designed for tropical high-demand market |
APPLICATIONS
This project is based on a real industrial requirement for high-volume ice pop production, where manufacturers focus on single flavor continuous operation to maximize efficiency and reduce system complexity.
The ice pop packaging machine in this configuration is designed for:
Long-hour continuous production
Stable multilane synchronization
Simplified liquid feeding system
Cost-efficient operation for large-scale output
In real factory environments, ice pop production may vary depending on product strategy:
One flavor per production cycle
Long continuous operation
Minimal cleaning and changeover
This setup is ideal for:
High-demand products
Cost-efficient production
Stable long-term operation
For manufacturers producing mixed or dual-color ice pops, a more advanced system with multi-channel liquid feeding is required.
See also: Multi-Flavor Ice Pop Packaging Machine Solution
In many projects, ice pops are not only packed individually but also automatically grouped into boxes or cartons for retail or distribution.
See related solution: Ice Pop Stick Packing + Cartoning System
BAG SAMPLES
VIDEOS

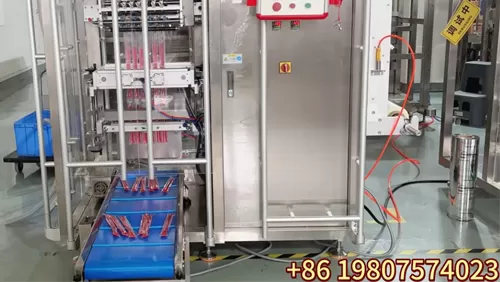

Single flavour ice pop four-side sealed 30cm long stick
OPTIONAL DEVICES
| Optional Device | Function | Engineering Value |
|---|---|---|
| Inkjet Coding System | Replaces ribbon coding | Enables flexible date printing and reduces consumable cost |
| Stainless Steel Liquid Tank with Mixer | Stores and mixes liquid product | Ensures uniform liquid consistency and stable feeding |
| CIP Cleaning System | Automated internal cleaning | Reduces cleaning time and improves hygiene for food applications |
| Level Control System (Liquid Sensor) | Monitors liquid level in tank | Prevents pump dry running and stabilizes feeding |
| Anti-Drip Filling Nozzle Upgrade | Improves liquid cutoff during filling | Reduces dripping and improves seal quality |
| Heating Jacket for Liquid Tank | Maintains liquid temperature | Suitable for syrup or higher viscosity liquid products |
DESCRIPTION
Product type: Juice-based liquid (low to medium viscosity)
Filling volume: 65–90 ml
Production mode: Single flavor continuous production
Bag type: 4 side seal stick pack
Bag width: 40 mm
Bag length: 300 mm
Film width: 500 mm (6 lanes layout)
Sealing width: 5 mm
Cutting type:
Flat cut
Easy-tear notch
300 mm long bag → requires high pulling stability
Narrow 40 mm width → requires precise sealing pressure control
Multilane structure → requires synchronized film distribution

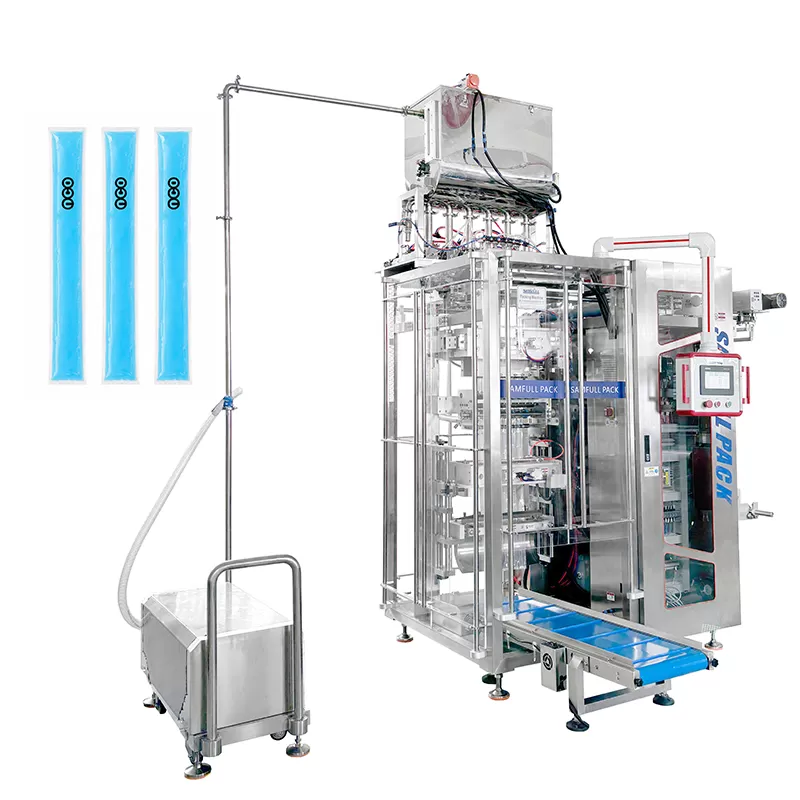

Model: SF720-6
Structure: 6 lane vertical multilane system
Frame: SUS304 stainless steel
Safety door interlock
Automatic stop when door is opened
This is essential for industrial compliance and operator protection.
Piston pump dosing system (6 lanes synchronized)
Diaphragm feeding pump for continuous supply
| System | Suitability | Reason |
|---|---|---|
| Piston pump | Best choice | High accuracy and stability |
| Peristaltic pump | Not suitable | Limited speed and durability |
| Gravity feeding | Not stable | Volume fluctuation |
Ice pop production requires:
Large filling volume (65–90 ml)
Consistent dosing across all lanes
Stable operation under continuous production
The piston pump provides:
±3% filling accuracy
Anti-dripping performance
Easy maintenance and cleaning
Laminated film
Thickness: 7–10c
Flat sealing (no pattern)
Ensures strong sealing integrity during freezing
Prevents leakage under internal liquid pressure
Provides consistent seal quality across all lanes
Ribbon coding system
EXP (expiry date)
MFG (manufacturing date)
LOT number
3 lines
Character size: 2×3
This is a cost-effective solution for markets requiring basic traceability.
Finished product conveyor
Supports:
Manual collection
Integration with downstream boxing or freezing systems
20–35 cycle/min, 150 bags/min (machine output)
Ice pop packaging is constrained by product characteristics:
Long stick bag (300 mm)
Longer pulling distance
Higher risk of deviation at high speed
Large liquid volume
Longer filling time
Requires anti-drip control
Seal cooling requirement
Prevents seal deformation
This ice pop packaging machine is optimized for:
Stability over extreme speed
Low defect rate
Consistent production quality
PLC: Siemens
Servo motor & drive: Siemens
Electrical components: Schneider
Temperature control: Autonics
Pneumatics: Airtac
Global availability of spare parts
High reliability for long-term operation
Easy maintenance in overseas markets
Challenge:
300 mm bag length causes tracking instability
Solution:
Precise tension control
Multilane synchronization system
Challenge:
Liquid tailing and dripping
Solution:
Piston pump suction-back design
Optimized nozzle structure
Challenge:
Liquid pressure before seal cooling
Solution:
Optimized sealing time
Stable temperature control
Sealing cooling device
Automatic film splicing system
Inkjet printer (alternative to ribbon coding)
Stainless steel liquid tank with mixer
| Item | Single Flavor | Multi Flavor |
|---|---|---|
| Feeding system | Single tank | Multi-tank system |
| System complexity | Low | High |
| Cleaning frequency | Minimal | Frequent |
| Production stability | High | Medium |
| Flexibility | Low | High |
For mixed or dual-color products, refer to:
Multi-Flavor Ice Pop Packaging Machine Solution
Yes. It is designed for long-hour continuous production, especially for single flavor applications.
The limitation comes from:
Long bag structure
Large liquid volume
Sealing requirements
Increase number of lanes (8–12 lanes)
Improve film quality
Optimize feeding system
Yes, but adjustments are required:
Pump configuration
Nozzle size
Optional heating system
This ice pop packaging machine is ideal for manufacturers who prioritize:
Stable high-volume production
Lower system complexity
Reduced operational cost
It delivers:
Reliable multilane synchronization
Proven industrial configuration
Optimized design for long stick liquid packaging
Looking to build or upgrade your ice pop production line?
Send us:
Bag size
Filling volume
Daily output
We will provide a customized ice pop packaging machine solution tailored to your factory.
