Liquid Packaging Solutions
Technical details

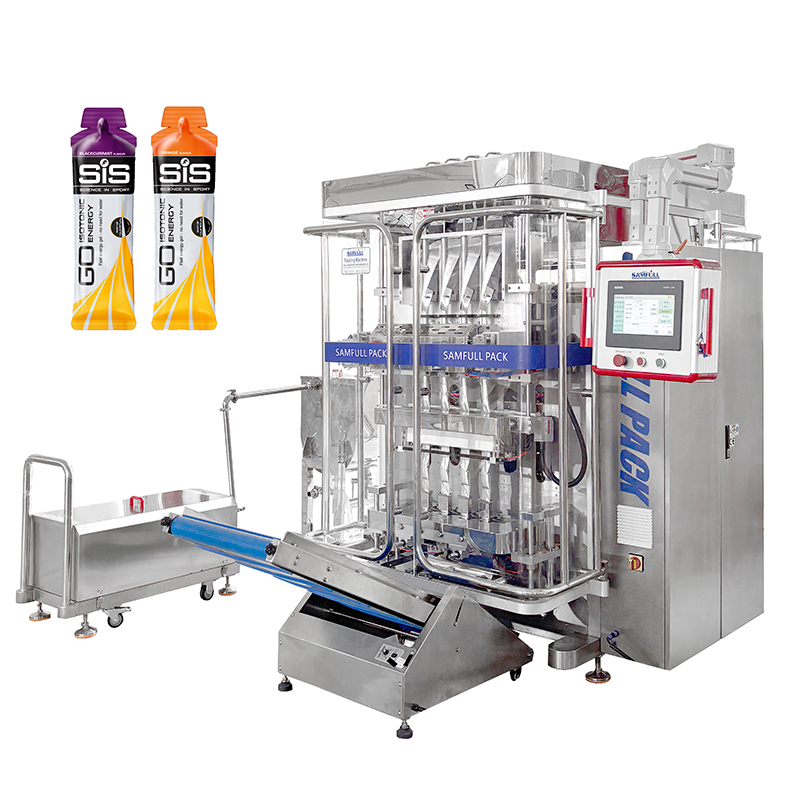

This project features a 4-lane multilane liquid stick pack machine designed for sport energy gel packaging, supporting irregular shape stick packs for premium sports nutrition brands.
It is ideal for:
Running energy gel
Cycling gel
Endurance nutrition products
Electrolyte gel stick packs
APPLICATIONS
This multilane stick pack machine is designed for high-viscosity liquid products, especially:
Sport energy gel
Nutritional gel
Liquid supplements
Functional health products
It is widely used by co-packers and supplement manufacturers requiring stable, high-speed production.
This project uses irregular shape stick packs, which offer:
Strong brand differentiation (non-standard shape)
Better consumer experience for energy gel use
Suitable for sports and outdoor consumption
Compared with standard stick packs, irregular shapes increase product value and shelf appeal.
BAG SAMPLES
VIDEOS

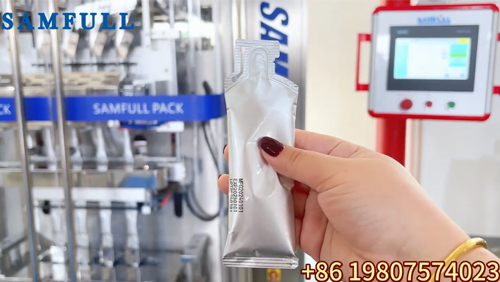

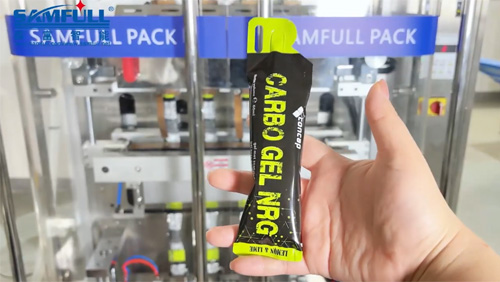

Side seal custom stickpack

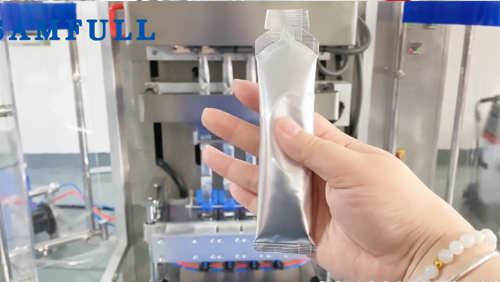

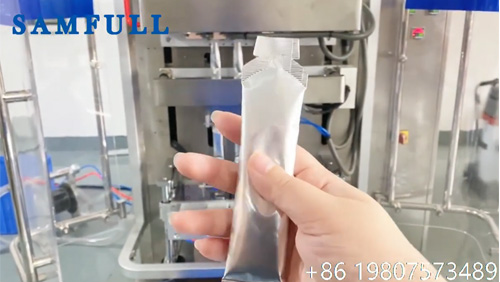

Irregular liquid stick pack with bottle shape easy tear notch
OPTIONAL DEVICES
Machine Type: 4-lane multilane liquid packing machine
Model: SF620-4
Filling System: Servo-driven ceramic pump
Frame Material: SUS304
Control System: Siemens PLC
Product Weight: 10–60g
Speed: 30–35 bags/min/lane
Total output: up to 120–140 bags/min, 8400 bags/hour max
Bag Size:
Width: 50mm
Length: 150mm (max 180mm)
Film Width: 428mm composite film
Coding: UV laser coding
Cutting: Flat cut / line pattern
CIP Cleaning System: Included
Feeding Pump: Rotor pump
DESCRIPTION
Energy gel is a high-viscosity, sticky liquid, which creates challenges:
→ Solution: Servo ceramic pump ensures stable filling accuracy
→ Solution: Integrated CIP system for easy cleaning
→ Solution: Optimized sealing structure prevents leakage
→ Solution: Machine adapted for low-height workshops (material feeding adjusted)
Recommend: Single-lane or 2-lane machine
Reason: Lower investment, flexible production
Recommend: 4-lane machine (this solution)
Output: ~100,000–150,000 packs/day
Recommend: 6–12 lane multilane machine
Output: 300,000+ packs/day
30–35 bags/min/lane
4 lanes → 120–140 bags/min
Suitable for:
Medium to large-scale supplement production
OEM/ODM factories
High-demand sports nutrition brands
| Type | Advantage | Suitable For |
|---|---|---|
| Standard Stick Pack | Lower cost, easier production | Basic products |
| Irregular Shape Stick Pack | Strong branding, premium feel | Energy gel, supplements |
This project uses irregular shape to increase market competitiveness.
Yes. The servo ceramic pump is designed for thick and sticky liquids like energy gel.
Accuracy can be controlled within ±1%-3%, depending on product characteristics.
No. The machine includes a CIP system, making cleaning fast and efficient.
Yes, it supports 24-hour continuous production in industrial environments.
No. The sealing system is optimized to ensure leak-proof performance, even with complex shapes.
Customer Location: Mexico
Application: Sport energy gel production
Machine Type: Multilane liquid stick pack irregular shape
Production Requirement: Medium-scale, stable output
This solution has been validated in real production environments.
This machine is NOT recommended for:
Very large volume packaging (>100g per pack)
Low-speed manual operations
Non-liquid products (powder/granule require different systems)

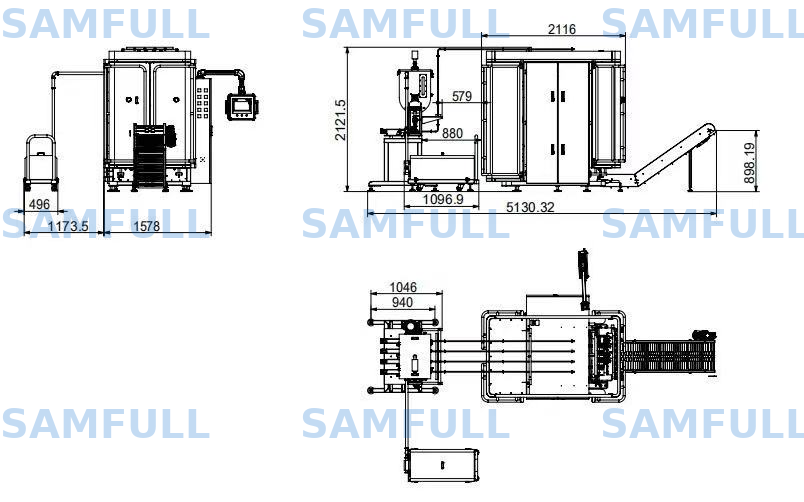

layout drawing of Sport Energy Gel Stick Pack Machine (4-Lane Multilane Solution)
| Item | Specification | Notes (Decision Support) |
|---|---|---|
| Machine Model | SF620-4 | 4-lane multilane liquid packing machine |
| Application | Energy gel / liquid supplements | Suitable for high-viscosity products |
| Filling System | Servo-driven ceramic pump | Ensures high accuracy for sticky liquids |
| Number of Lanes | 4 lanes | Balanced output & investment |
| Filling Range | 10–60g | Ideal for single-dose gel packs |
| Packing Speed | 30–35 bags/min/lane | Total: 120–140 bags/min |
| Production Capacity | Up to 150,000 bags/day | Based on 8–10 hour operation |
| Bag Type | Irregular shape stick pack | Premium product positioning |
| Bag Width | 50mm | Standard stick width for gel |
| Bag Length | 150mm (Max 180mm) | Adjustable for different volumes |
| Film Width | 428mm | Based on multilane design |
| Packaging Material | Composite film | Good barrier for moisture & oxygen |
| Sealing Type | Heat sealing | Ensures leak-proof packaging |
| Cutting Type | Flat cut / line pattern | Optional design for easy opening |
| Coding System | UV laser coding | Permanent & high-speed marking |
| Cleaning System | CIP (Clean-in-Place) | Essential for liquid/gel hygiene |
| Feeding System | Rotor pump | Stable material feeding |
| Machine Frame | SUS304 stainless steel | Food-grade standard |
| Control System | Siemens PLC | Stable & widely supported |
| Power Supply | 220V / 50Hz / 2-phase | Can be customized |
| Language Interface | English / Spanish and others | Suitable for international use |
Tell us your product details and production requirements, and we will recommend the most suitable multilane packing solution for you.
Product type (gel, liquid, viscosity)
Sachet size & weight
Required output per day
Bag style (standard or irregular shape)
Our engineers will provide a tailored solution within 24 hours.
Contact us now to get machine details, videos, and quotation.
Related Products

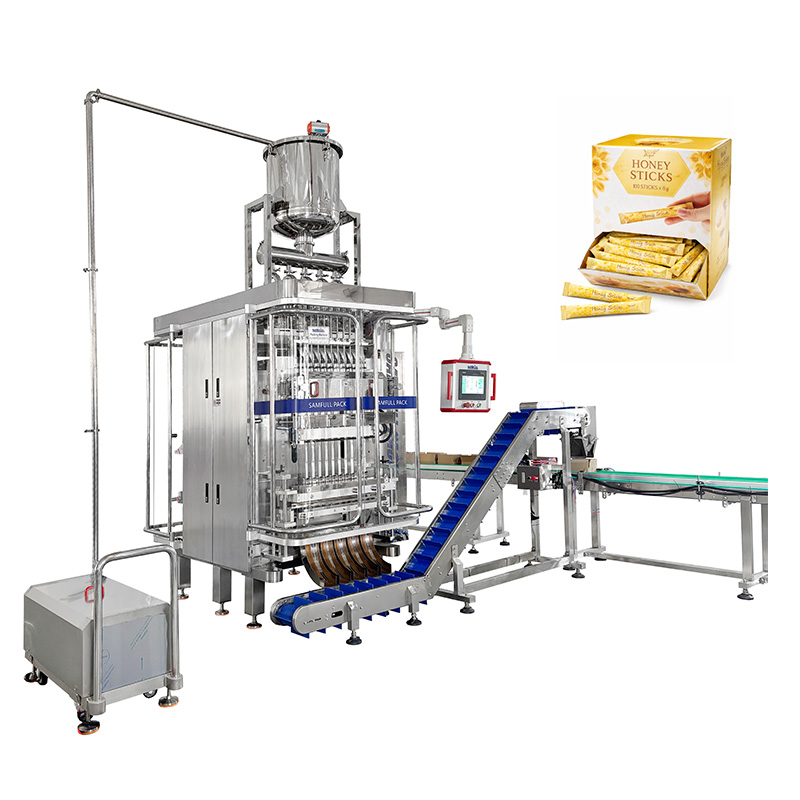

Honey Stick Packaging Line Application (Bulk 100 Sticks Random Cartoning Solution)

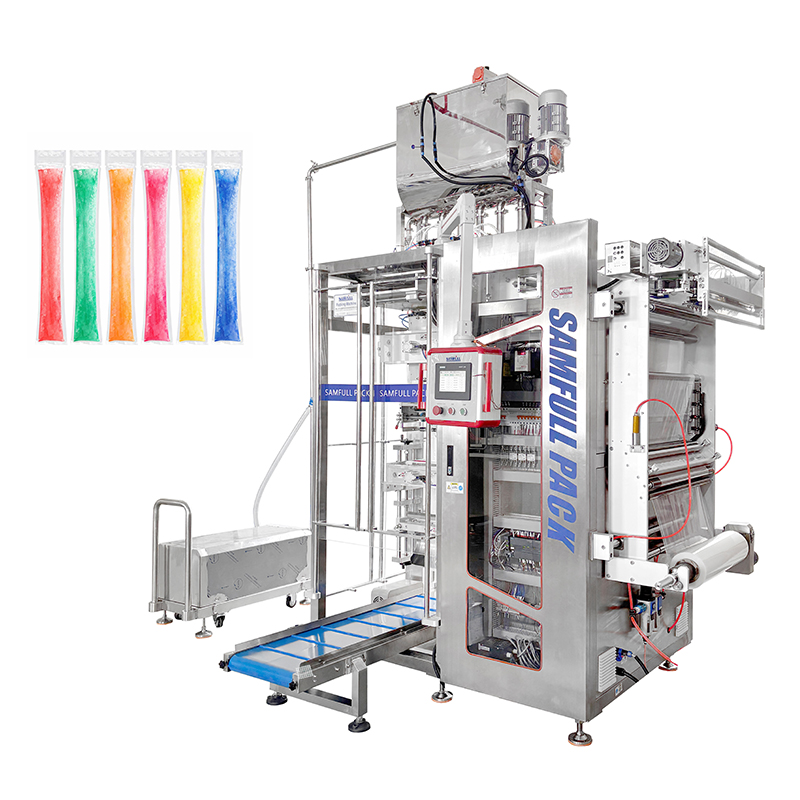

Multi-Flavor Ice Pop Packing Machine – 4-Side Seal Multilane Solution
Honey Stick Pack Packaging Line with Ordered Arrangement & Cartoning (50 Sticks per Box)

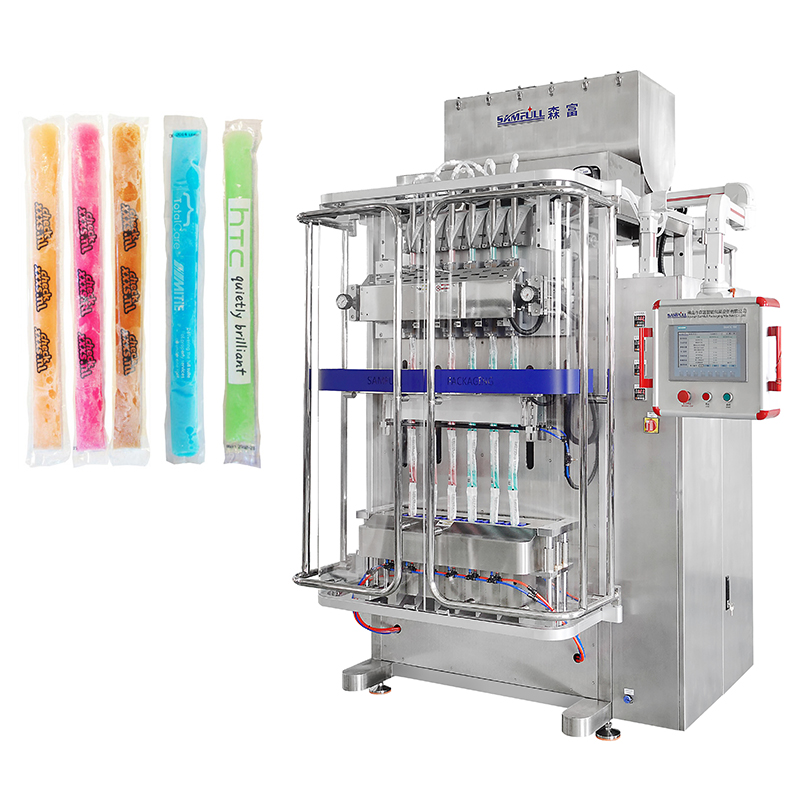

Ice Pop Packaging Machine – Single Flavor 6 Lane 4 Side Seal Solution

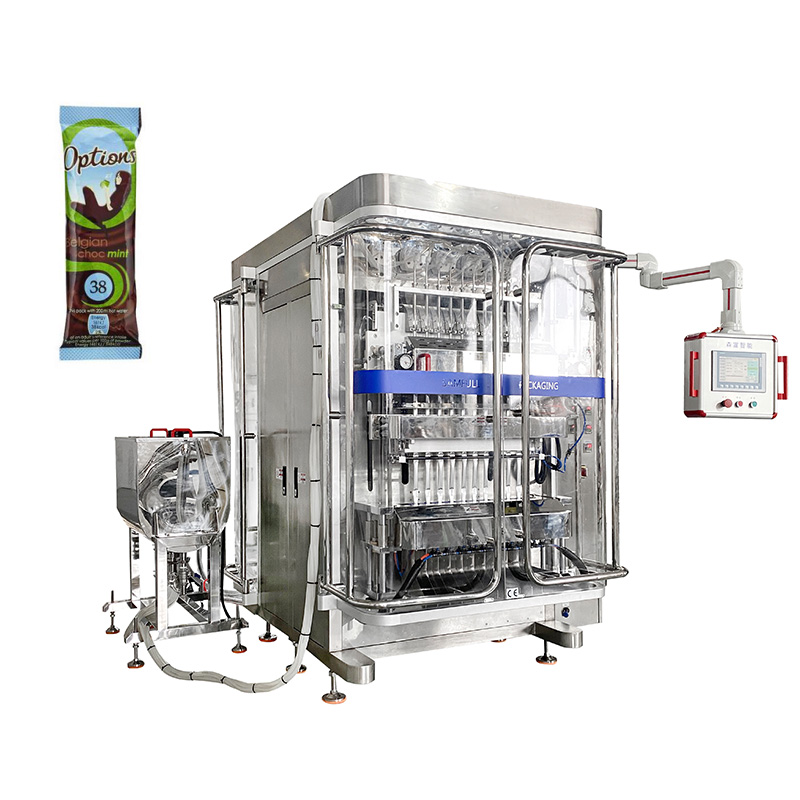

Multi lane chocolate spread round corner stickpack VFFS form fill seal solution
