Granule Packaging Solutions
Technical details
| Item | Specification |
|---|---|
| Customer Country | Australia |
| Product | Salt |
| Packaging Type | Four-Side Seal Sachet |
| Filling Weight | 1g |
| Machine Model | SF-960 10-Lane Sachet Packaging Machine |
| Number of Lanes | 10 Lanes |
| Filling System | Measuring Cup Dosing System |
| Product Contact Parts | SS316 Stainless Steel |
| Machine Frame Material | 304 Stainless Steel |
| Production Speed | 51 Cuts/Min |
| Output | 510 Sachets/Min |
| Packaging Film | Paper Film |
| Bag Width | 35mm |
| Bag Length | 35mm |
| Total Film Width | 700mm |
| Film Thickness | 5–7μm |
| Sealing Size | Vertical Seal 5mm, Horizontal Seal 5mm |
APPLICATIONS
This is a real customer case from Australia for 1g salt sachet packaging.
The customer required an automatic packaging solution for small-dose salt products, focusing on accurate weighing, stable sealing, and high-efficiency multi-lane sachet production.

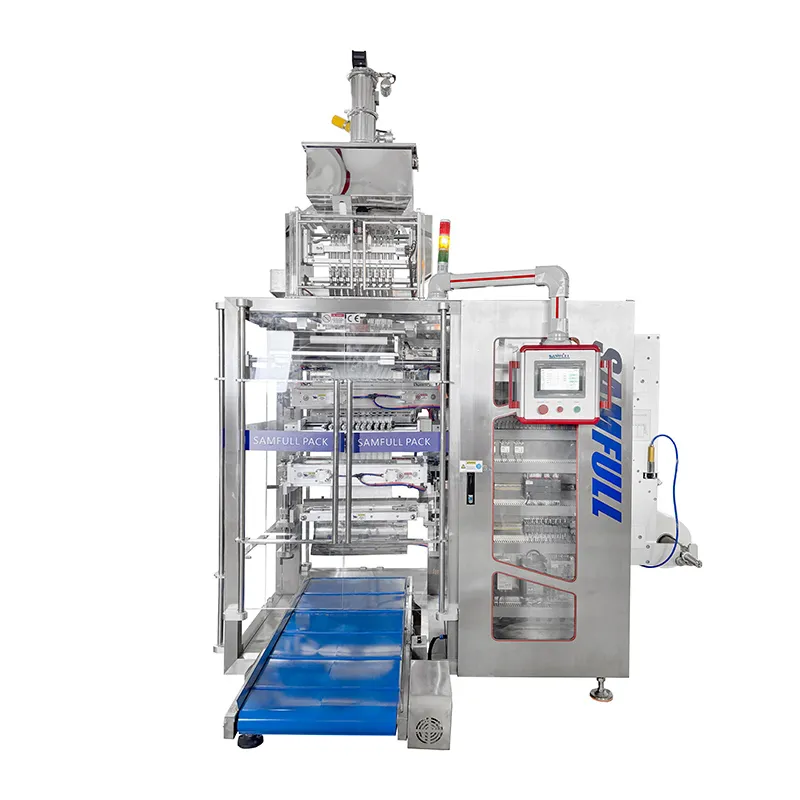

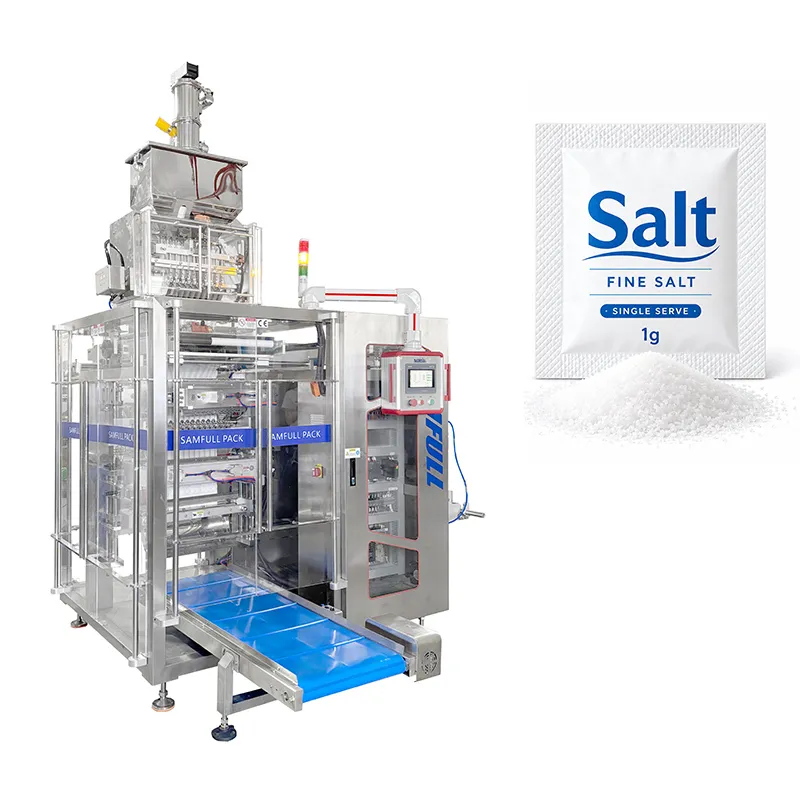

Based on the production requirements, Samfull supplied an SF-960 10-lane four-side seal sachet packaging machine for 1g salt stick pack production.
BAG SAMPLES
VIDEOS

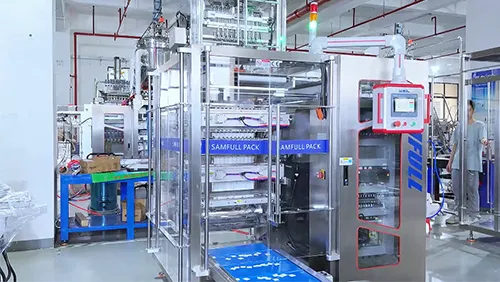

1g paper bag salt sachet machine
OPTIONAL DEVICES
Automatic Counting System
Counts finished salt sachets accurately according to preset quantities for secondary packaging.
Secondary Bag Packing System
Automatically collects and packs multiple small salt sachets into larger PE bags for bulk packaging.
Secondary Cartoning System
Automatically counts sachets and loads them into cartons for retail or food service packaging.
Sachet Collation Device
Arranges single-dose salt sachets in a fixed order before secondary packing.
Multi-Quantity Counting Function
Supports flexible counting settings according to different packaging requirements.
Finished Product Conveyor System
Transfers finished sachets from the primary packaging machine to secondary packing equipment.
Bag Opening & Filling Device
Automatically opens secondary bags and loads counted salt sachets into the bag.
Carton Sealing Machine
Automatically seals cartons after sachet loading.
Metal Detector / Check Weigher Integration
Optional quality inspection equipment for weight checking and product safety control.
Custom Secondary Packaging Solution
Customized solutions available for bulk bags, cartons, boxes, and retail packaging formats.
Date Coding Machine
For printing production date, expiry date, batch number and other variable information on sachets.
Dust Removal System
Helps reduce powder dust during salt filling and keeps the packaging process cleaner.
Static Eliminator Device
Reduces static electricity generated during film feeding and packaging operation.
SS316 Product Contact Parts
Food-grade stainless steel contact parts for improved corrosion resistance and hygiene.
Easy Tear Notch Device
Supports easy opening design for single-serve salt sachets.
Custom Printing Film Support
Compatible with customized paper film and printed packaging materials.
Stainless Steel Machine Structure
304 stainless steel frame suitable for food packaging environments.
Automatic Alarm & Safety Protection System
Includes safety switch and automatic stop function for safer operation.
Customized Voltage Configuration
Available for different factory power requirements.
Finished Product Conveyor
Optional conveyor system for collecting and transferring finished salt sachets.
DESCRIPTION
| Item | Specification |
|---|---|
| Customer Country | Australia |
| Product | Salt |
| Packaging Type | Four-Side Seal Sachet |
| Filling Weight | 1g |
| Machine Model | SF-960 10-Lane Sachet Packaging Machine |
| Number of Lanes | 10 Lanes |
| Filling System | Measuring Cup Dosing System |
| Product Contact Parts | SS316 Stainless Steel |
| Machine Frame Material | 304 Stainless Steel |
| Production Speed | 51 Cuts/Min |
| Packaging Film | Paper Film |
| Bag Width | 35mm |
| Bag Length | 35mm |
| Total Film Width | 700mm |
| Film Thickness | 5–7μm |
| Sealing Size | Vertical Seal 5mm, Horizontal Seal 5mm |
| Cutting Type | Flat Cutting |
| Easy Tear Design | One-Line Cut |
| Control System | Siemens System |
| Power Supply | 3 Phase 415V 50Hz |
| Operation Language | Chinese & English |
The customer needed a compact and efficient salt sachet packing machine for single-serving salt packaging.
The main requirements included:
1g precise salt filling
High-volume small sachet production
10-lane packaging structure
Food-grade material contact parts
Stable sealing quality
Easy opening sachet design
For salt packaging, accurate dosing and corrosion-resistant contact parts are important to ensure stable production and consistent package quality.
Samfull provided the SF-960 10-lane four-side seal sachet packaging machine.
The machine adopts a measuring cup dosing system, suitable for free-flowing products such as:
Salt
Seasoning powder
Sugar
Spice powder
Food ingredients
The complete packaging process includes:
Film feeding
Sachet forming
Salt dosing
Four-side sealing
Cutting
Finished sachet output
The 10-lane design allows multiple sachets to be produced simultaneously, improving production efficiency for single-dose packaging.
With a production speed of 51 cuts per minute:
10 lanes × 51 cuts/min
Output reaches 510 salt sachets per minute
Hourly production:
30,600 salt sachets/hour
This configuration is suitable for customers requiring large quantities of small-dose salt sachets for food service, retail, and seasoning applications.
The finished salt sachet specification:
Product: Salt
Weight: 1g
Bag Type: Four-Side Seal Sachet
Bag Size: 35mm × 35mm
Film Material: Paper Film
Sealing Width: 5mm
Cutting Method: Flat Cutting
The compact 1g sachet format is suitable for:
Restaurants
Hotels
Catering
Food service
Retail seasoning packaging
The multi-lane structure improves output efficiency while maintaining compact machine space.
The product contact parts are made of SS316 stainless steel, suitable for food ingredient packaging applications.
The measuring cup filling system provides reliable dosing performance for free-flowing products.
The Siemens control system provides stable operation and convenient parameter adjustment.
This salt sachet packaging machine is suitable for:
Salt sachet packing
Seasoning powder packaging
Spice sachet packaging
Sugar sachet packing
Food ingredient packaging
Single-dose condiment packaging
This Australia 1g salt sachet packaging project demonstrates Samfull’s experience in multi-lane small-dose packaging solutions.
With the SF-960 10-lane four-side seal sachet packaging machine, the customer achieved stable production of 1g salt sachets with 510 sachets per minute output, using food-grade SS316 contact parts, paper film packaging, and reliable dosing technology.
For customers searching for a salt sachet packing machine, 1g salt packaging machine, seasoning powder packaging machine, or 10-lane sachet machine, this project provides a practical reference.
