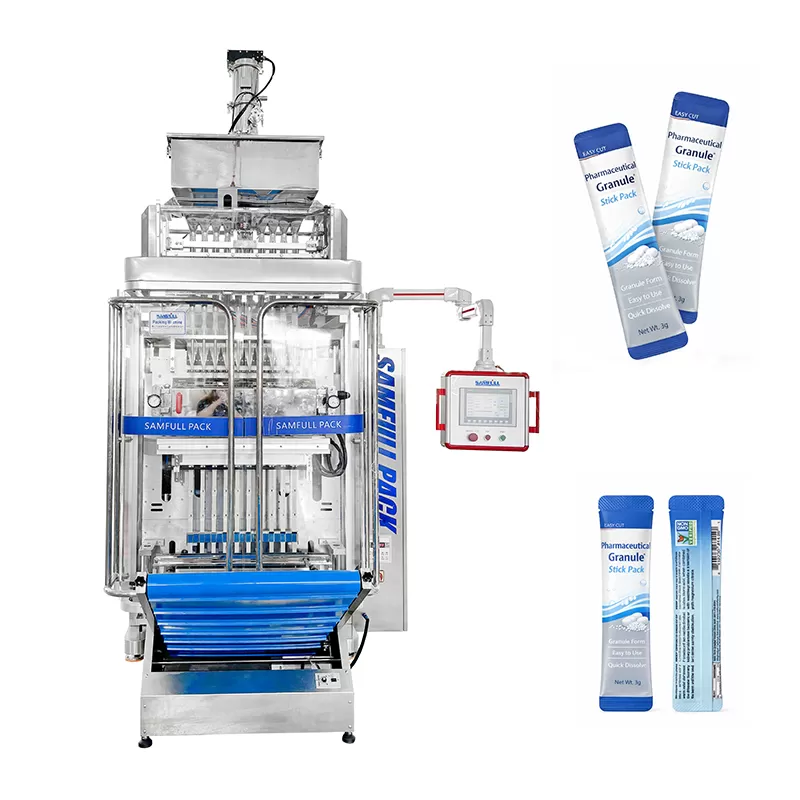

Pharmaceutical Granule Stick Pack Machine (10 Lane) – GMP-Ready with Future Cartoning Integration

Technical details

Parameter	Specification
Lane Range	10-lane stick pack (upgrade-ready)
Bag Type	Stick pack (back seal)
Product Type	Granules / free-flowing powder
Filling Range	1g – 10g
Speed	30–45 bags/min/lane
Total Output	Up to 300–450 bags/min
Bag Width	20 – 40 mm
Bag Length	50 – 160 mm
Film Type	Aluminum / laminated film
Machine Material	SS304 / SS316
Control System	Siemens PLC

Inquire Now

APPLICATIONS

Product Description

This solution is a pharmaceutical-grade 10-lane stick pack machine designed for free-flowing granules and micro granule products, with a modular architecture enabling future upgrade to a counting and cartoning line.

It supports a phased investment strategy:

Phase 1: High-speed 10-lane stick pack production
Phase 2: Add counting, ordered arrangement, and cartoning

For applications involving powder products, you may also refer to our
-> powder stick pack machine

For full automation solutions, explore our
-> stick pack cartoning line

For different format sachet

-> granule 4-side seal sachet machine

All interfaces are pre-reserved during initial design, ensuring fast and seamless integration without major modification.

Application

Pharmaceutical granules
Herbal granules
Nutraceutical granules
Micro granule formulations

→ Suitable for free-flowing granular products (non-powder)

If your product tends toward powder characteristics, we recommend checking
-> powder stick pack packaging solutions

BAG SAMPLES

VIDEOS

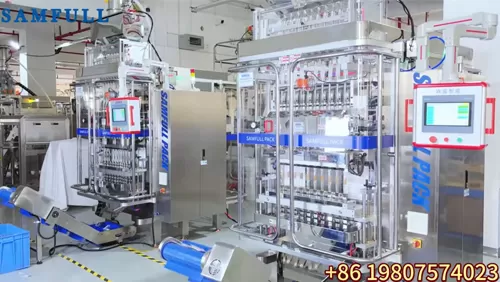

Pharma & supplement stick pack

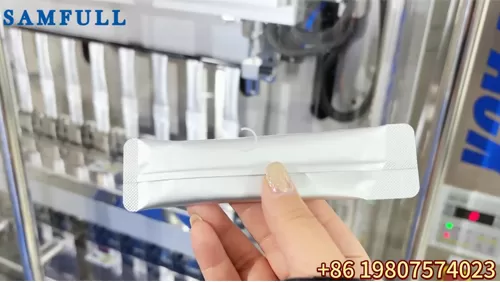

Aluminum foil stick pack

OPTIONAL DEVICES

1. Coding System (Recommended)

Inkjet printer (HP/TIJ) or laser coding
One coding head per lane (10 lanes)

→ For batch number and traceability

2. Easy Tear System (Confirmed)

Straight-line easy tear notch (based on sample)

→ Easy opening for end users

3. Sealing & Cutting (Confirmed)

Pattern sealing (mesh pattern ✔)
Back seal structure
Standard cutting

→ Stable sealing quality

4. Dust & Static Control (Optional)

Dust extraction system
Anti-static device

→ Improves cleanliness and product flow

5. Film Control System

Servo film pulling
Film alignment system (EPC)

→ Ensures stable multi-lane operation

6. Future Expansion Interface

Reserved interface for:

Counting system
Ordered arrangement
Cartoning machine

→ Ready for future upgrade without machine modification

7. GMP Upgrade (Optional)

AISI 316L product contact parts

→ For pharmaceutical compliance

DESCRIPTION

Phase 1: 10-Lane Stick Pack Machine

Core Configuration

Lanes: 10
Sachet size: 65 × 85 mm
Dosage: 5 g (adjustable)
Product type: free-flowing granules
Bag type: back seal stick pack

Granule Dosing System

Volumetric cup filling system
Optimized for uniform granule flow behavior
Stable at high speed with good repeatability

→ Designed for granular products smaller than sugar but not powder

Film Handling & Sealing

Servo-driven film pulling
Multi-lane synchronization
Stable sealing quality

Optional:

Rounded corner cutting
Easy tear notch

Coding System

Inkjet (HP/TIJ) or laser
One coding head per lane

→ Ensures full traceability for pharmaceutical production

Pre-Reserved Interfaces for Future Integration

To support expansion into a full line, this machine includes pre-engineered interfaces:

Mechanical

Discharge alignment for downstream systems
Space reserved for counting and arrangement modules

Electrical

Reserved I/O ports
Interlock signals for downstream equipment

Control System

Siemens PLC with expansion capability
OPC-ready for MES/ERP integration

Phase 2: Counting + Cartoning Upgrade

This machine is designed to seamlessly connect to a
stick pack cartoning line

Upgrade Modules

Counting System

Multi-lane stick counting
Accurate grouping (10 / 20 / 50 sticks)

Ordered Arrangement System

Neat alignment for premium packaging
Suitable for pharmaceutical retail boxes

Cartoning Machine

Automatic loading
Optional leaflet insertion
Coding and traceability ready

GMP Compliance

Product contact: AISI 316L
Structure: AISI 304
Hygienic design for pharmaceutical environment

→ Suitable for regulated pharmaceutical production

Technical Specifications

Parameter	Specification
Machine Type	10-lane stick pack (upgrade-ready)
Product Type	Free-flowing granules
Filling Range	3 – 10 g
Standard Dosage	5 g
Bag Size	65 × 85 mm
Speed	30–45 bags/min/lane
Output	Up to 300–450 bags/min
Contact Material	AISI 316L
Control System	Siemens PLC
Communication	OPC ready

Key Advantages

✔ Designed specifically for granules (not powder)
✔ Stable and consistent dosing
✔ GMP-compliant structure
✔ Upgrade-ready to full packaging line
✔ Seamless integration with cartoning system

FAQ

Q1: Can this machine handle powder products?

This machine is optimized for granules. For powder applications, please refer to
powder stick pack machine (/powder-stick-pack-machine)

Q2: Can we upgrade to a cartoning line later?

Yes. It is designed to connect directly to a
stick pack cartoning line
with pre-reserved interfaces.

Q3: What type of granules are suitable?

Free-flowing granules or micro granules with stable flow characteristics.

Q4: Does it support pharmaceutical standards?

Yes. The machine is designed with AISI316L contact parts and GMP considerations.
