Granule Packaging Solutions
Technical details
| Capacity | 45-50 cycle/min, Up to 450–500 sticks/min |
| Stick bag length | 120mm |
| Stick bag width | 17mm |
| Filling method | Volumetric cup |
| Weight range | 4-6g |
| Film material | Paper-based film |
| Cutting type | Back sealing,flat cut |
APPLICATIONS
This project features a high-speed multi-lane stick pack machine specifically designed for 4–6g granular products, suitable for a wide range of free-flowing granular materials:
White sugar
Brown sugar
Table salt
Sweetener granules
Ideal for small-dose, high-volume applications
The solution integrates paper-based packaging material with high-speed production, meeting both sustainability requirements and industrial performance standards.
BAG SAMPLES
VIDEOS

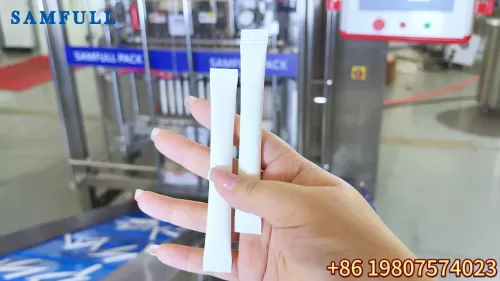

High speed sugar stick 5g multilane machine
OPTIONAL DEVICES
1. Code printer: laser marking printer, thermal transfer printer, ribbon code printer, hot stamped coding machine
2. Cutting type: straight cut, zigzag cut, round cut
3. Dosing system: volumetric cup, weigher
4. Easy open tear notch features
5. Variety of bag sealing patterns and bag shapes
6. Automatic counting and repackaging machine: box cartoning machine, vffs vertical form fill machine, premade pouch packing machine
7. Finished product conveyor

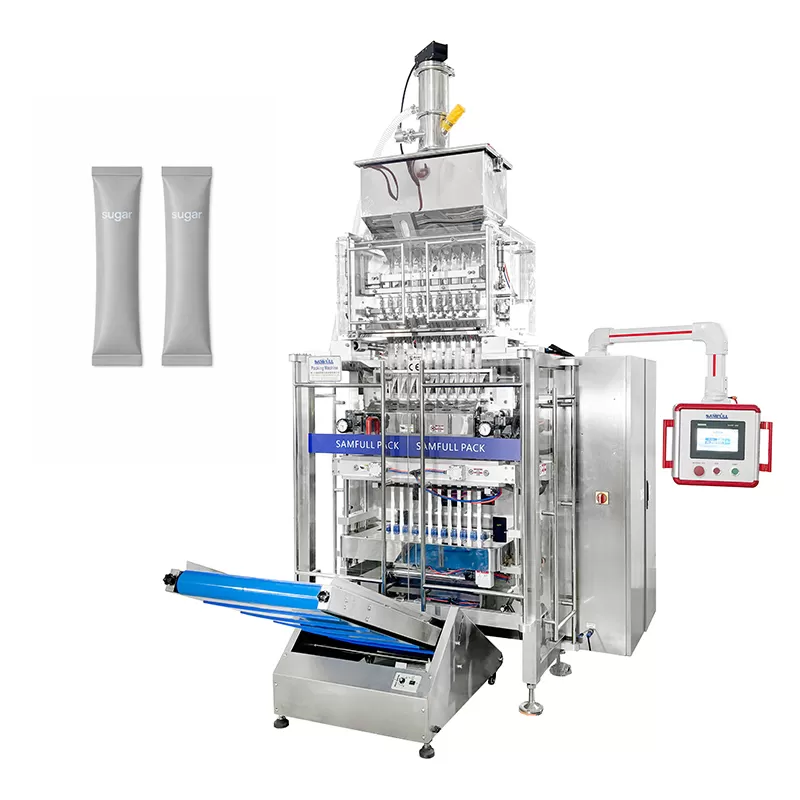

Machine type: Multi-lane stick pack machine
Model: 10-lane configuration
Filling system: Volumetric cup dosing
Machine frame: SUS 304 stainless steel
Control system: Siemens PLC
HMI: Multi-language touch screen
DESCRIPTION
Compared with traditional plastic laminates, this solution adopts paper-based film, offering:
Reduced plastic usage
Recyclable material structure
Suitable for brands targeting green packaging
Meets increasing environmental regulations
Enhances brand image for retail and food service markets
Paper film is more challenging than plastic in sealing.
This machine is optimized with:
Precise temperature control
Reinforced sealing structure
Stable pressure system
Ensures tight sealing and clean edges even at high speed
This project follows a strict quality requirement:
Defect rate ≤ 3‰ (3 per 1000 packs)
This includes:
Sealing defects
Weight deviation
Appearance defects
High production reliability
Reduced waste and rework
Stable long-term operation
This standard reflects industrial-grade packaging performance

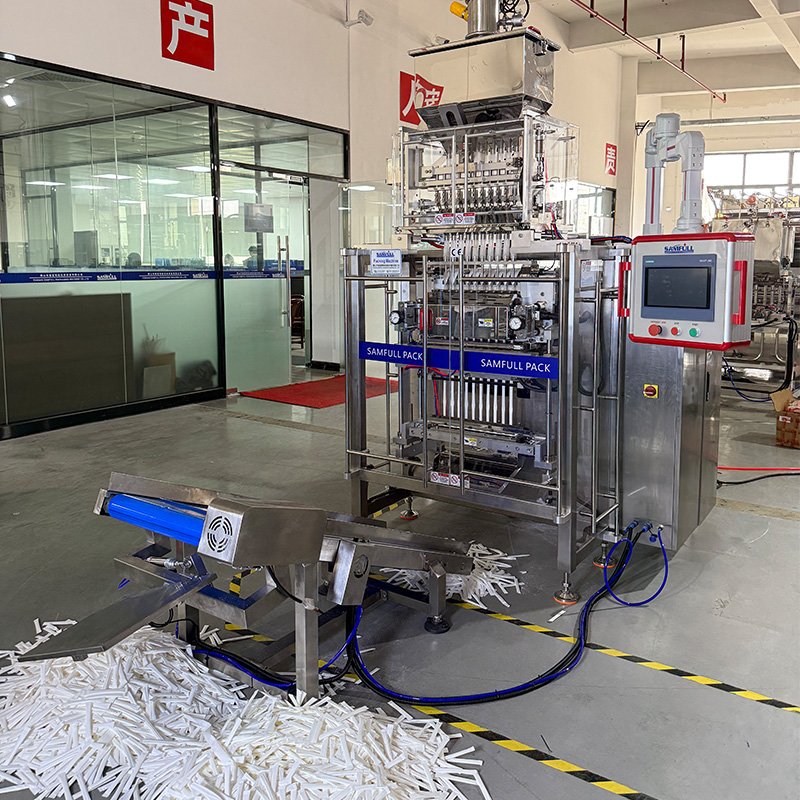

10-lane structure
Continuous stable operation
High efficiency for mass production
Optimized volumetric cup system
Stable filling performance
Consistent weight control
Equipped with:
Vibration feeding system
Anti-static device
Prevents:
Material bridging
Sticking
Uneven feeding
Vertical seal: 3mm
Horizontal seal: 7mm
Flat cutting
Ensures:
Clean stick appearance
Strong sealing integrity
Easy tear notch
Hole punching
Date coding (inkjet / laser / TTO)
Dust collection system
Coffee shops (sugar & sweetener sticks)
Restaurants & catering
Hotels
Retail portion packs
Yes. With optimized sealing design, the machine ensures stable performance even at high speeds.
The system is designed to meet ≤0.3% defect rate (3‰).
Yes, it supports sugar, salt, and sweetener with similar flow characteristics.
Yes, it uses PLC control with a user-friendly touch screen interface.
This high-speed 5g stick pack machine with paper-based packaging provides:
Sustainable packaging solution
High-speed production capacity
Industrial-level quality control (≤3‰ defect rate)
It is an ideal choice for manufacturers aiming to combine efficiency, quality, and eco-friendly packaging.
Looking for a high-speed stick pack machine with paper packaging compatibility?
Contact us now for a customized solution tailored to your product and production needs.
