Production Workflow

1. Liquid preparation in mixing tank

2. Transfer via pump system

3. Multi-lane forming & filling

4. Sealing and cutting

5. Coding

6. Discharge

7. Counting and grouping

8. Cartoning

9. Final packaging output

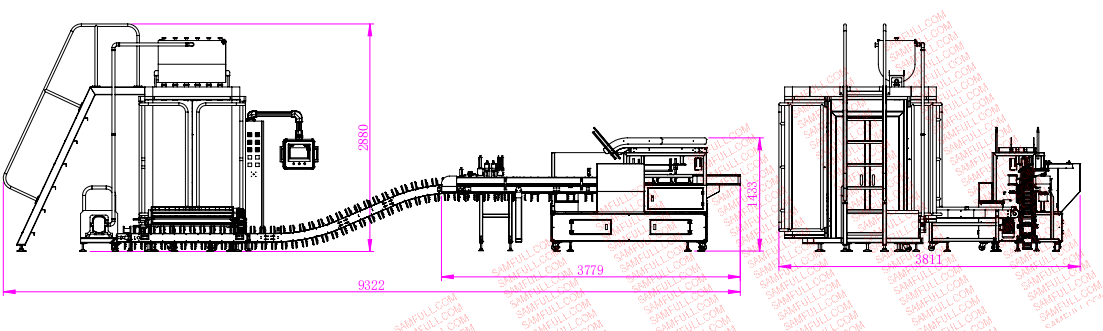

layout drawing of Multi-Lane Liquid Stick Pack Packaging Line

Key Advantages of the System

1. Designed for Regulated Industries

• Food-grade and pharma-grade materials (316L)

• Hygienic structure design

• CIP cleaning system

Ideal for:

• Nutraceutical manufacturers

• Pharmaceutical factories

2. High Output with Compact Design

Multi-lane configuration allows:

• High production capacity

• Reduced footprint

• Lower labor dependency

3. Fully Automated End-of-Line Integration

This solution eliminates:

• Manual counting

• Manual boxing

Improving:

• Efficiency

• Consistency

• Labor cost

4. Flexible for Different Liquid Types

The system can handle:

• Low viscosity liquids

• Medium viscosity liquids

• Semi-viscous formulations

With customization options for:

• Filling system

• Tank design

• Pump selection

5. Stable and Accurate Filling

The combination of:

• Servo piston pump

• Synchronized control system

Ensures:

• Consistent dosage

• Minimal deviation

• Reduced product waste

Optional Customizations

Depending on project requirements, the line can be upgraded with:

• Easy-tear notch system

• Special sealing patterns (anti-leak design)

• Laser or TTO coding

• Different stick pack shapes

• Secondary packaging upgrades (case packing, palletizing)

Why This Solution Is Important for Buyers

Most buyers are not just looking for a machine, but a complete packaging system.

This multi-lane liquid packaging line solves:

• Multi-lane liquid synchronization

• Sticky or viscous product handling

• High-speed small-dose packaging

• Integration with downstream packaging

It is especially valuable for companies aiming to:

• Scale production

• Improve automation level

• Meet hygiene and compliance requirements

FAQ – Multi-Lane Liquid Stick Pack Packaging Line

1. What types of liquid products can this packaging line handle?

This multi-lane liquid stick pack packaging line is suitable for a wide range of products, including:

• Liquid dietary supplements

• Herbal extracts

• Syrups

• Functional nutrition liquids

• Oral solutions

• Energy gels

The system can be customized for different viscosities, from low-viscosity liquids to semi-viscous formulations.

2. Is this system suitable for nutraceutical and pharmaceutical applications?

Yes. The entire line is designed for high hygiene standards, making it ideal for:

• Nutraceutical manufacturers

• Pharmaceutical companies

Key features include:

• 316L stainless steel contact parts

• CIP (Clean-in-Place) system

• Closed liquid transfer design

3. What filling system is used for liquid stick pack machines?

This solution typically uses a servo-controlled piston pump, which is suitable for:

• Medium to high viscosity liquids

• Applications requiring stable filling accuracy

Alternative systems (such as peristaltic pumps) can also be configured depending on product characteristics.

4. What is the typical packaging speed of a multi-lane liquid machine?

Packaging speed depends on the number of lanes and product characteristics.

Typical ranges: 20–45 cycles/min

Higher output can be achieved by increasing the number of lanes or optimizing product flow conditions.

5. What is the filling accuracy for liquid stick packs?

The typical filling accuracy is:

• ±0.5% to ±2%

Accuracy depends on:

• Product viscosity

• Filling system type

• Machine speed

Reducing speed can improve filling stability and accuracy in some cases.

6. Can this packaging line be integrated with a cartoning machine?

Yes. This solution is designed as a fully integrated packaging line, including:

• Automatic counting system

• Grouping conveyor

• Cartoning machine

It enables complete automation from stick pack production to boxed products.

7. How are stick packs counted and grouped for secondary packaging?

After packaging:

• Stick packs are transferred to a counting conveyor

• The system automatically counts and groups products

• Pre-set quantities (e.g., 10, 20, 50 sticks per box) are formed

No manual intervention is required.

8. What stick pack sizes can the machine produce?

The machine supports flexible stick pack sizes, typically:

• Width: 15–50 mm

• Length: adjustable (depending on machine model)

Custom sizes can be configured based on product requirements.

9. What packaging materials are supported?

The system supports various laminated films, including:

• PET/PE

• PET/AL/PE

• Other multi-layer composite films

Material selection depends on:

• Barrier requirements

• Product shelf life

• Industry standards

10. Does the system support easy-tear and anti-leak sealing?

Yes. Optional features include:

• Easy-tear notch

• Serrated sealing

• Anti-leak sealing patterns

These improve user experience and product safety.

11. How is cleaning and maintenance handled?

The system is designed for easy cleaning:

• CIP system for tank and pipelines

• Quick disassembly for key parts

• Stainless steel hygienic structure

This minimizes downtime and ensures compliance with hygiene standards.

12. Can the system be customized for different production requirements?

Yes. This is a fully customizable packaging solution, including:

• Number of lanes

• Filling system type

• Tank configuration

• Secondary packaging (cartoning, case packing, palletizing)

Each project is tailored based on:

• Product type

• Output requirement

• Factory layout
