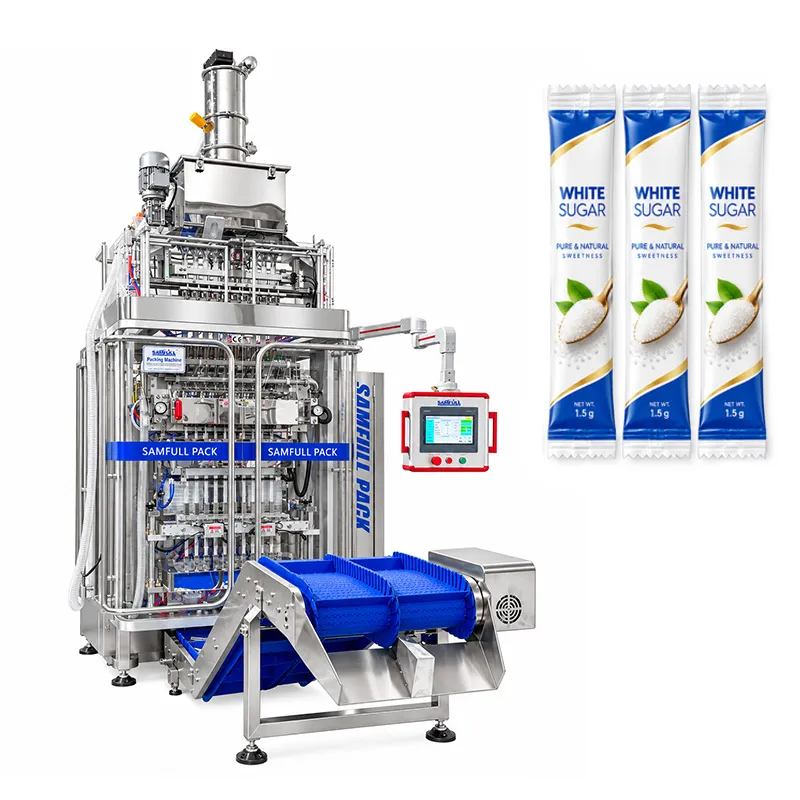

600 Bags/Min 10 Lane High Speed Sugar & Sweetener Stickpack Sachet Packing Machine in Riyadh, Saudi Arabia

Customer Packaging Requirements

• Customer location: Riyadh, Saudi Arabia

• Product: White granulated sugar / sweetener

• Filling weight: 1.5 g per stick

• Machine model: SF720-10

• Machine type: 10 lane stick pack machine

• Number of lanes: 10 lanes

• Dosing system: Volumetric cup dosing system

• Speed: Up to 60 cuts/min

• Maximum output: Up to 600 packs/min

• Stick width: 22.5 mm

• Stick length: 80–120 mm

• Film width: 550 mm

• Packaging film: Laminated aluminum film

• Film thickness: 5–7 silk

• Vertical seal width: 5 mm

• Horizontal seal width: 8 mm

• Cutting type: Serrated cutting

• Machine frame: SUS304 stainless steel

• Control system: Siemens

• Power supply: 3 phase, 380 V, 60 Hz

• Touch screen language: English / Chinese

• Secondary packaging: Optional automatic bagging or cartoning line

600 Packs Per Minute High-Speed Stick Packaging

The key advantage of this project is its extremely high production capacity.

The machine uses a 10 lane stick pack design, allowing 10 packs to be formed, filled, sealed and cut during each working cycle.

At a maximum speed of 60 cuts per minute, the theoretical production capacity reaches:

10 lanes × 60 cuts/min = up to 600 stick packs/min

This high-speed output is especially suitable for manufacturers with large daily production requirements for sugar and sweetener stick packs.

Compared with multiple separate single-lane machines, one multi lane system provides:

• Higher production capacity

• Lower labor requirements

• Smaller production footprint

• Centralized machine control

• More consistent packaging quality

• Easier connection with downstream secondary packaging equipment

1.5 g White Sugar and Sweetener Stick Packing

The customer in Riyadh, Saudi Arabia mainly uses the machine for packaging 1.5 g white sugar and sweetener sticks.

Because white granulated sugar and many granular sweetener products have good flowability, the machine uses a volumetric cup dosing system for stable and continuous high-speed filling.

Suitable products include:

• White granulated sugar

• Sweetener

• Sugar substitute

• Coffee sugar

• Hotel sugar sticks

• Restaurant sugar sticks

• Salt

• Beverage granules

• Food granules

Different dosing volumes can be customized according to the required filling weight.

Complete Automatic Stick Packing Process

The primary packaging process is automatically completed by the machine:

Film unwinding → film splitting → volumetric dosing → filling → vertical sealing → horizontal sealing → cutting → finished stick pack discharge

The machine is equipped with an automatic film tracking and correction system to maintain stable film movement during high-speed operation.

This is particularly important when the machine operates continuously at up to 600 packs per minute.

Connect with Automatic Secondary Packaging

One of the major advantages of this high-speed stick packing system is that the machine can be connected directly with downstream secondary packaging equipment.

After the individual sugar or sweetener sticks are produced, they can be automatically counted, collected and transferred to the secondary packaging section.

Two common secondary packaging solutions are available.

Automatic Counting and Bagging

Finished stick packs can be automatically counted according to a preset quantity and then packed into larger bags.

The process can include:

Stick pack discharge → automatic counting → orderly collecting → secondary bag forming → stick loading → bag sealing → finished bag discharge

This solution is suitable for customers that need to pack multiple individual sugar or sweetener sticks into one larger plastic bag.

Typical applications include:

• 20 sticks per bag

• 25 sticks per bag

• 50 sticks per bag

• 100 sticks per bag

The quantity can be customized according to the customer's final packaging requirements.

Automatic Counting and Cartoning

The high-speed stick pack machine can also be connected with an automatic cartoning machine.

After primary packaging, the system automatically counts the required number of stick packs and loads them into cartons.

The production process can be configured as:

Stick packing → counting → collecting → carton forming → stick loading → carton closing → finished carton discharge

This type of automatic cartoning line is suitable for retail, food service and branded consumer products.

Complete Primary and Secondary Packaging Line

For customers requiring a highly automated production system, SAMFULL can provide a complete integrated line including:

10 lane stick pack machine → stick counting system → conveyor system → secondary bagging machine or cartoning machine

Additional downstream equipment can also be integrated, such as:

• Automatic counting system

• Stick pack collection conveyor

• Secondary bagging machine

• Automatic cartoner

• Checkweigher

• Metal detector

• Labeling machine

• Case packing machine

• Palletizing system

This allows the customer to automate the entire process from 1.5 g individual stick packaging to final secondary packaging.

High-Speed Multi Lane Stick Pack Machine

For small-dose sugar and sweetener products, production volume is normally very large.

A 10 lane stick packing machine produces multiple packs simultaneously, making it significantly more efficient than conventional single-lane equipment.

Main advantages include:

• 10 lane simultaneous packing

• Up to 60 cuts per minute

• Up to 600 stick packs per minute

• High production efficiency

• Stable filling performance

• Compact machine footprint

• Automatic continuous production

• Suitable for mass production

• Easy connection with automatic bagging

• Easy connection with automatic cartoning

• Suitable for complete production line automation

Suitable Applications

This high speed multi lane stick pack machine is suitable for a wide range of free-flowing granular products, including:

• White sugar

• Sweetener

• Sugar substitute

• Coffee sugar

• Salt

• Instant beverage granules

• Food granules

• Small-dose seasoning products

The filling system, number of lanes, stick dimensions and downstream packaging configuration can be customized according to different production requirements.

Stick Pack Machine for Saudi Arabia Market

For manufacturers in Riyadh and other regions of Saudi Arabia, increasing packaging automation can help reduce dependence on manual labor while improving production consistency and output.

For high-volume sugar and sweetener production, a multi lane stick pack machine combined with automatic secondary bagging or cartoning provides a more complete industrial packaging solution than using an individual packing machine alone.

This project is suitable as a reference for customers searching for:

• Sugar stick packing machine in Saudi Arabia

• Sweetener stick pack machine in Riyadh

• 10 lane stick packing machine

• 600 packs per minute packaging machine

• High speed stickpack filling machine

• Automatic sugar stick packing line

• Stick pack machine with secondary packaging

• Stick pack counting and bagging machine

• Stick pack cartoning line

• Sugar stick packing and cartoning line

Machine Features

• 10 lane high-speed design

• Up to 600 packs/min

• Up to 60 cuts/min

• Suitable for 1.5 g sugar and sweetener

• Siemens control system

• SUS304 stainless steel frame

• Volumetric cup filling system

• Automatic film tracking

• Stable high-speed sealing

• Serrated cutting

• Automatic counting available

• Automatic secondary bagging available

• Automatic cartoning available

• Suitable for complete automatic packaging lines

• Suitable for continuous industrial production

Customized High-Speed Stick Packing and Secondary Packaging Solution

SAMFULL provides customized multi lane stick pack machines and complete secondary packaging lines for sugar, sweetener, coffee, powder, granule and liquid products.

The complete production line can be customized according to:

• Product characteristics

• Filling weight

• Stick pack dimensions

• Packaging film

• Number of lanes

• Required output

• Cutting style

• Counting quantity

• Secondary bag size

• Carton size

• Packs per bag

• Packs per carton

• Factory voltage

• Required automation level

For this project in Riyadh, Saudi Arabia, the 10 lane stick packing machine can reach up to 600 stick packs per minute and can be integrated with an automatic secondary bagging or cartoning system, providing a complete high-speed packaging solution from individual stick packs to final packaged products.
