4-Lane Fruit Jam Sachet Packing Machine for Latin America | 100–150g Sachet Production Solution

Fruit Jam Sachet Production Requirements

The customer required a high-efficiency multi-lane packaging solution for fruit jam sachet production in the Latin American market.

The machine configuration includes:

• 4-lane sachet packing system

• Product: Fruit jam

• Filling range: 100–150g

• Piston pump filling system

• Four side seal sachet

• Bag width: 100 mm

• Finished bag length: 80–170 mm

• Total film width: 840 mm

• Composite laminated film

• Film thickness: 7–9 silk

• Vertical seal width: 7 mm

• Horizontal seal width: 10 mm

• Straight tear notch

• Flat cutting

• Striped sealing pattern

• 304 stainless steel construction

• Siemens control system

• 3 Phase, 220V, 60Hz

• English and Chinese HMI

• Air exhaust plate to reduce excess air inside the sachet

Main Technical Parameters

Automatic Fruit Jam Sachet Making Process

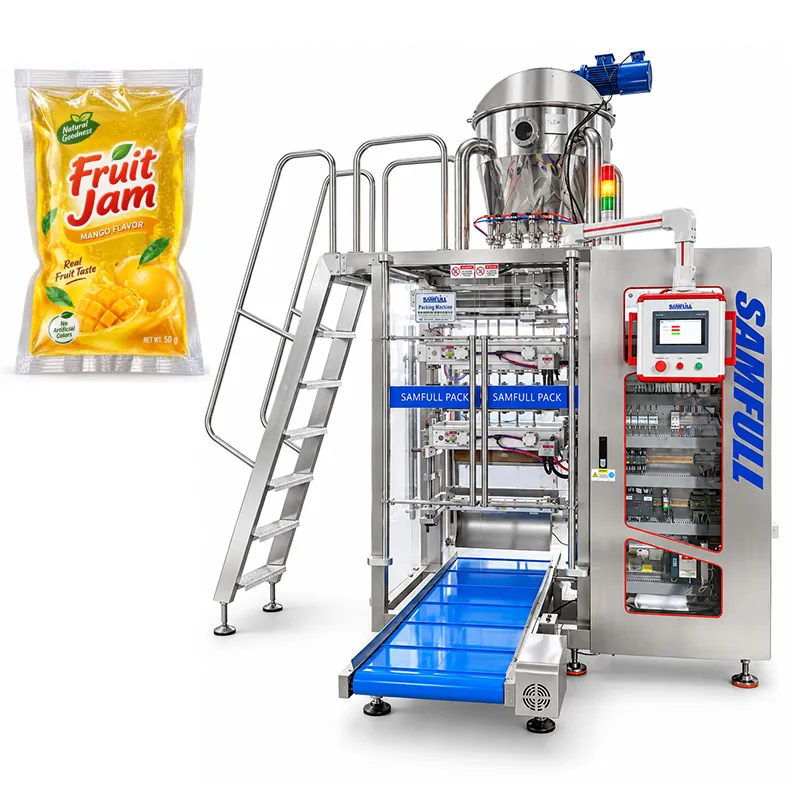

The SF960Y integrates the complete fruit jam sachet making process into one automatic system:

Film unwinding → sachet forming → piston pump filling → air exhausting → four side sealing → tear notch → cutting → finished sachet output

This automatic process helps food manufacturers improve production efficiency and reduce manual handling during fruit jam sachet production.

Why Use a 4-Lane Sachet Making Machine?

Compared with a single-lane machine, a 4-lane sachet making machine can produce four sachets simultaneously.

For this project, each lane operates at approximately 25–30 bags per minute, giving a theoretical total production capacity of around 100–120 sachets per minute.

This makes the machine suitable for medium and large food factories that require continuous fruit jam sachet production.

Piston Pump Filling for Fruit Jam

Fruit jam has a higher viscosity than water-like liquids, so the filling system must be selected according to the product characteristics.

This machine uses a piston pump filling system, which is commonly used for viscous products such as:

fruit jam, jelly, ketchup, sauce, syrup, honey and similar paste products.

The multi-lane piston filling structure allows the machine to perform high-speed sachet filling and sachet making while maintaining stable dosing performance.

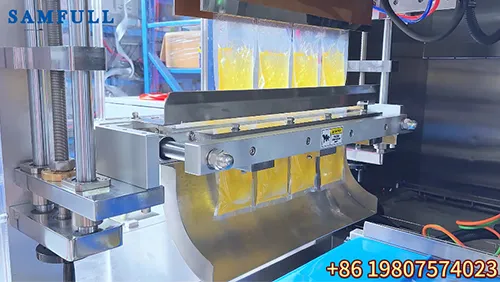

Four Side Seal Sachet Making

The machine produces a 100 mm wide four side seal sachet with adjustable bag length from 80 mm to 170 mm.

The sealing structure includes:

7 mm vertical sealing + 10 mm horizontal sealing

A straight tear notch is added to make the finished fruit jam sachet easier to open.

The machine is therefore suitable for customers looking for a complete four side seal sachet production machine for food products.

Fruit Jam Sachet Packaging Solution for Latin America

This project is especially suitable for food manufacturers and packaging companies in Latin America that need an automatic solution for:

fruit jam sachet production, jam sachet making, sauce sachet packing, jelly sachet packaging and viscous liquid filling.

The machine can be customized according to different:

filling weights, product viscosity, sachet dimensions, number of lanes, sealing styles, film specifications and local electrical standards.

For Latin American customers, the machine can also be configured according to local voltage and packaging requirements.
