Liquid Packaging Solutions
Technical details
| Item | Specification |
|---|---|
| Customer Market | Indonesia |
| Product | Chilli oil / chilli sauce |
| Machine Model | SF1200 |
| Machine Type | 10-lane four-side seal liquid sachet packing machine |
| Machine Frame | 304 stainless steel |
| Control System | Siemens system |
| Filling Method | Piston pump |
| Filling Weight | 7g / 10g / 16g |
| Speed Requirement | 25–30 sachets/min/lane |
| Total Output | Approx. 250–300 sachets/min |
| Total Film Width | 1220mm |
APPLICATIONS
This application case is based on a real production order for an Indonesian customer producing chilli oil and chilli sauce sachets.
The customer required one multi-lane sachet packing machine to produce three filling weights:
7g / 10g / 16g
According to the production order, the selected machine is an SF1200 10-lane four-side seal liquid sachet packing machine, equipped with a piston pump filling system, Siemens control system, and 304 stainless steel machine frame.
The required production speed is 25–30 sachets per minute per lane, with a total output of approximately 250–300 sachets per minute.
Before confirming this project, the customer compared many sachet packing machine suppliers, visited packaging machinery exhibitions in China and overseas, and also came to our factory for inspection. After checking our multi-lane machine production scale, previous application cases, technical communication, after-sales support, and overall cost-performance value, the customer finally approved our solution.
The customer did not choose only by the lowest price. After comparing machine configuration, factory capability, application experience, service support, and investment cost, they considered our solution to offer a better overall value for their chilli oil and chilli sauce sachet production.
The machine was shipped only after the customer completed factory acceptance inspection and confirmed the machine running performance and finished sachet samples.

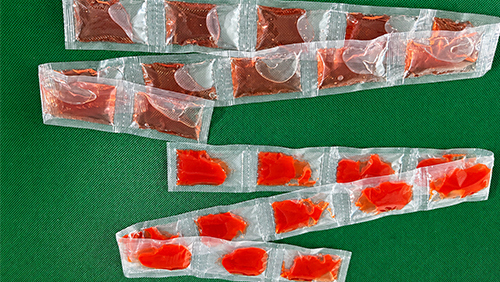

The finished sachets are designed as four-side seal sachets. The samples show the actual forming and filling result for chilli oil and chilli sauce products.
For this type of condiment sachet, the main quality points include:
clean four-side sealing
stable filling weight
neat flat cutting
correct easy-tear notch position
no obvious leakage after filling
stable sachet appearance across multiple lanes
Because chilli oil is oily and chilli sauce may have a certain viscosity, the filling and sealing process must remain stable during continuous multi-lane production.
BAG SAMPLES
VIDEOS

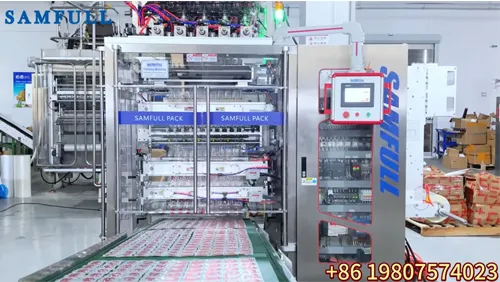

Ten lanes high output chilli oil paste sachet machine
OPTIONAL DEVICES
Based on the production order and this application, the following optional devices can be considered when required:
| Optional Device | Function |
|---|---|
| Date coder | Print production date, batch number, or expiry date |
| Anti-drip filling nozzle | Reduce dripping for oil-based products |
| Mixing hopper | Help maintain product consistency if sauce or oil separates |
| Film correction device | Improve film running stability for wide film |
| Checkweigher | Check finished sachet weight |
| Leak inspection | Improve final quality control if required |
| Counting system | Prepare sachets for secondary packaging |
| Cartoning connection interface | Reserve connection for future cartoning line |
DESCRIPTION
| Item | Specification |
|---|---|
| Customer Market | Indonesia |
| Product | Chilli oil / chilli sauce |
| Machine Model | SF1200 |
| Machine Type | 10-lane four-side seal liquid sachet packing machine |
| Machine Frame | 304 stainless steel |
| Control System | Siemens system |
| Filling Method | Piston pump |
| Filling Weight | 7g / 10g / 16g |
| Speed Requirement | 25–30 sachets/min/lane |
| Total Output | Approx. 250–300 sachets/min |
| Total Film Width | 1220mm |
| Packaging Film | PET12 / Ink / Adhesive / ALU7 / Adhesive / LLDPE40 |
| Film Thickness | Approx. 67 microns |
| Sachet Type | Four-side seal sachet |
| Vertical Seal Width | 7mm |
| Horizontal Seal Width | 8mm |
| Easy Tear | Double-side straight tear notch |
| Cutting Type | Flat cut |
| Power Supply | 3 Phase, 380V–400V, 50Hz |
| Touch Screen Language | English / Chinese / Indonesian |
| Discharge | Standard discharge conveyor |
| Final Inspection | Factory acceptance before shipment |
| Filling Weight | Film Width Per Lane | Sachet Width | Sachet Length | Horizontal Seal | Vertical Seal |
|---|---|---|---|---|---|
| 7g | 120mm | 60mm | 75mm | 8mm | 7mm |
| 10g | 120mm | 60mm | 95mm | 8mm | 7mm |
| 16g | 120mm | 60mm | 100mm | 8mm | 7mm |
The sachet width remains 60mm, while the sachet length changes according to different filling weights. This design allows the customer to produce 7g, 10g, and 16g sachets on the same machine.
The vertical seal width is 7mm, and the horizontal seal width is 8mm, which is suitable for four-side seal condiment sachets requiring stable sealing edges.
The production order specifies a piston pump filling system.
For chilli oil and chilli sauce, piston pump filling is suitable because it provides stable dosing for small filling weights such as 7g, 10g, and 16g.
Compared with simple liquid filling methods, piston pump filling offers better control for:
small-dose filling
oil-based liquid products
sauce products with certain viscosity
multi-lane filling consistency
filling weight adjustment between different sachet sizes
For this project, the piston pump system is an important configuration because the machine needs to maintain consistent filling performance across 10 lanes.
The packaging film used in this production order is:
PET12 / Ink / Adhesive / ALU7 / Adhesive / LLDPE40
The total film thickness is approximately 67 microns.
This laminated film structure is suitable for chilli oil and chilli sauce sachets because the product is oily and requires reliable sealing performance. The film also needs to match the four-side seal process and the required sachet size.
For actual production, the sealing temperature, pressure, and running speed should be adjusted according to the final film supplied by the customer.
The machine is designed with 10 lanes, using roll film to form four-side seal sachets.
The required speed is:
25–30 sachets/min/lane
So the total capacity is approximately:
250–300 sachets/min
This output is suitable for condiment sachet production where small sachets are produced in large quantities.
The total film width is 1220mm. For a 10-lane machine, film pulling and alignment must remain stable during production.
Stable film running helps maintain:
sachet width consistency
sealing position accuracy
cutting position accuracy
finished sachet appearance
The machine uses a Siemens control system. The touch screen language includes:
English / Chinese / Indonesian
This configuration is suitable for the customer’s local operation team and supports daily operation, parameter adjustment, and troubleshooting.
The machine frame is made of 304 stainless steel, which is suitable for food-related liquid sachet packaging environments.

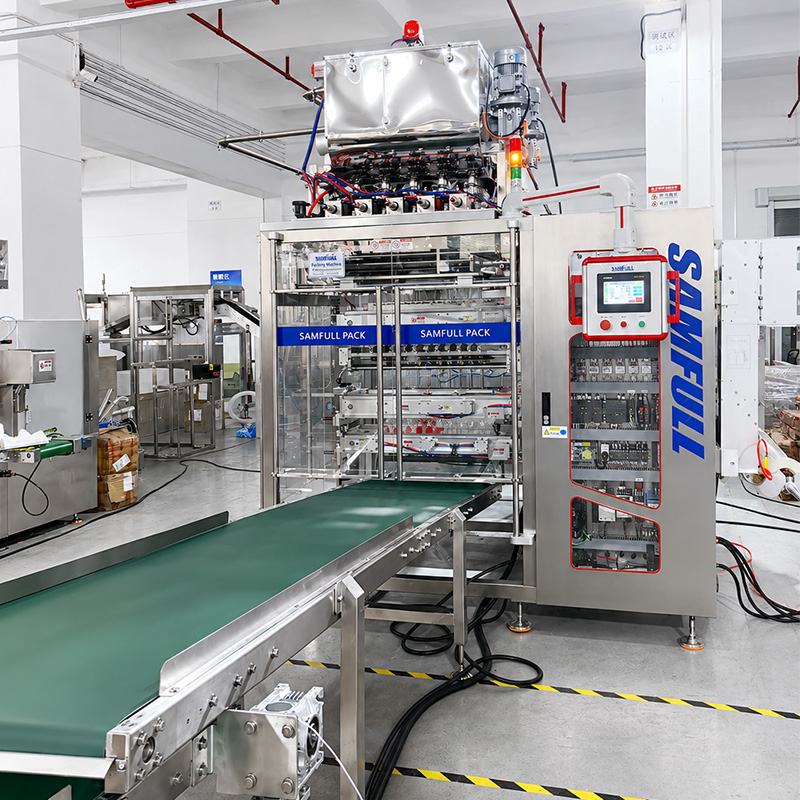

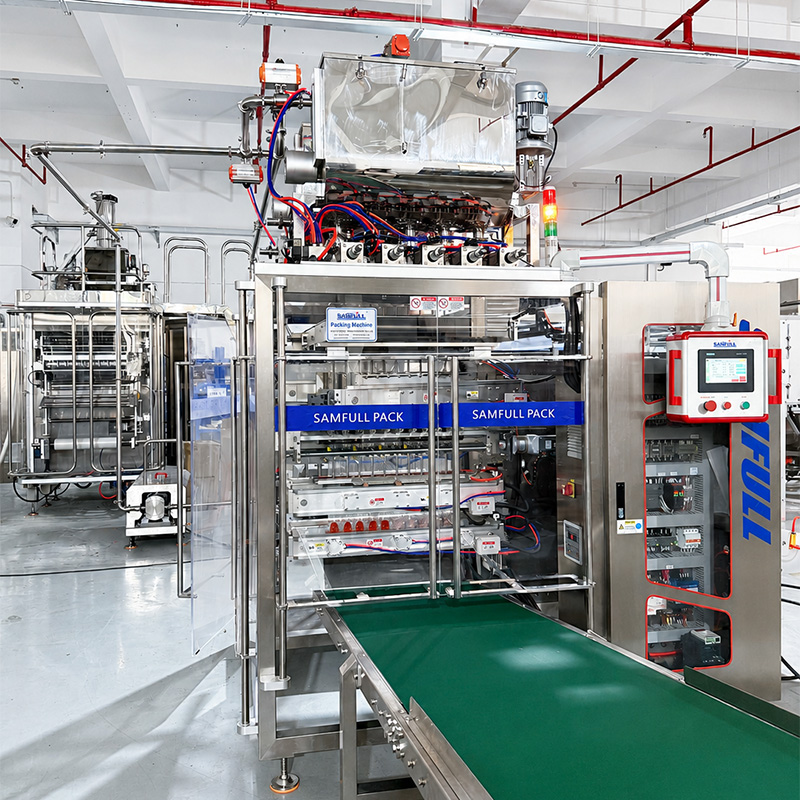

This case is a real application of an SF1200 10-lane four-side seal liquid sachet packing machine for chilli oil and chilli sauce sachets.
The machine was designed according to the production order requirements, including 7g, 10g, and 16g filling weights, piston pump filling, 1220mm total film width, Siemens control system, 304 stainless steel frame, and four-side seal sachet format.
The customer compared different suppliers, visited exhibitions, inspected our factory, and approved the machine only after factory acceptance testing. The final decision was not based on the lowest price, but on the overall cost-performance value of the complete solution. After comparing machine configuration, factory scale, multi-lane application experience, technical communication, after-sales support, and investment cost, the customer approved our solution as a suitable choice for their chilli oil and chilli sauce sachet production.
This project shows that for chilli oil and chilli sauce sachet packaging, customers should evaluate not only the purchase price, but also the supplier’s multi-lane machine experience, real production capability, technical support, machine testing process, and long-term service reliability.
Yes. This machine is designed for chilli oil and chilli sauce sachet packaging. The filling method specified in the production order is piston pump filling.
This project is designed for 7g, 10g, and 16g sachets.
The machine produces four-side seal sachets with flat cutting and double-side straight easy-tear notch.
The required speed is 25–30 sachets per minute per lane. With 10 lanes, the total output is approximately 250–300 sachets per minute.
The total film width is 1220mm. The film width per lane is 120mm.
The film structure is PET12 / Ink / Adhesive / ALU7 / Adhesive / LLDPE40, with an approximate thickness of 67 microns.
Yes. The machine was shipped only after factory acceptance inspection and customer approval.
The customer compared different suppliers, visited exhibitions, inspected our factory, and evaluated machine configuration, factory scale, application cases, technical communication, after-sales support, and investment cost. They considered this solution to provide a strong overall cost-performance balance.
