Powder Packaging Solutions
Technical details
| Parameter | Specification |
|---|---|

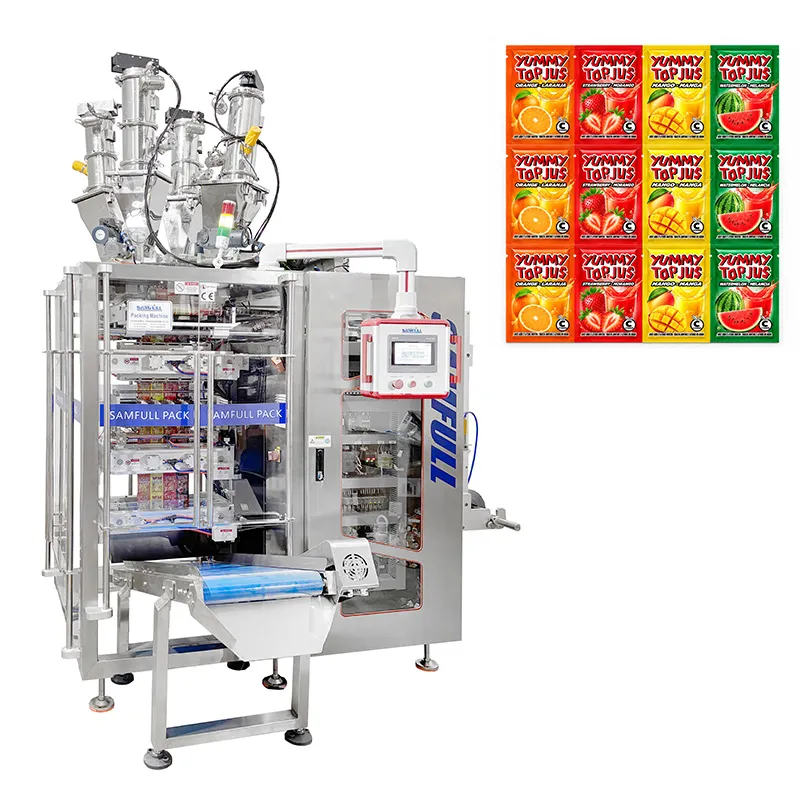

| Machine Model | SF-720 4-Lane Powder Sachet Packing Machine |
| Number of Lanes | 4 Lanes |
| Packing Product | Juice Powder, Seasoning Powder |
| Filling Range | 4–10 g / 10–17 g |
| Packing Speed | 30 Bags/Min |
| Bag Size | W65 mm × L90–160 mm |
| Bag Type | Four-Side Seal Sachet |
| Machine Material | SUS304; Product Contact Parts SUS316 |
APPLICATIONS
A customer in Turkey ordered two Samfull SF-720 4 lane four-side-seal sachet packing machines for packaging juice powder and seasoning powder.
One of the main requirements of this project was the ability to package four different flavors at the same time. For this reason, the machines were configured with four independent short-auger dosing systems and separate product hoppers, allowing each lane to handle an individual flavor.
The project covers small powder sachets from 4–10 g and 10–17 g, using 65 mm wide four-side-sealed sachets.
BAG SAMPLES
VIDEOS

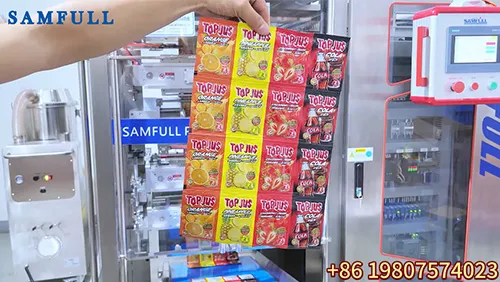

4 flavour powder juice sachet machine
OPTIONAL DEVICES
Independent Auger Dosing Systems – 4 sets for packing four different flavors simultaneously
Vacuum Powder Feeder QVC1 – 4 sets per machine
Vacuum Powder Feeder QVC2 – 1 set
Dedicated Industrial Dust Collector – with suction pipes
Dehumidification Device
Vibration Device
Anti-Static Device
Finished Product Conveyor – 1 set
Inkjet Printer – with servo-driven adjustable printer bracket
DESCRIPTION
Customer Packaging Requirements
The customer required a multi lane powder packaging solution for small-dose powder sachets with two filling ranges: 4–10 g and 10–17 g.
The specified sachet width is 65 mm, while the bag length can be adjusted from 90 mm to 160 mm according to the product weight and packaging requirements.
The packaging format is a four-side-seal sachet, using composite film.
A major feature of this project is the customer's requirement to package four flavors simultaneously.
Instead of using one common dosing system for all lanes, each lane is equipped with an independent short-auger dosing unit.
This means the four lanes can receive different powders independently, making the machine suitable for manufacturers that need to package several flavors or formulations during the same production process.
For this project, the system is used for juice powder and seasoning powder.
The customer also required two auger configurations to accommodate the different filling ranges of 4–10 g and 10–17 g.
The specified filling accuracy is ±5%, subject to the actual powder characteristics and product condition.
| Specification | Project Configuration |
|---|---|
| Machine model | SF-720 |
| Quantity | 2 sets |
| Number of lanes | 4 lanes |
| Packaging format | Four-side-seal sachet |
| Product | Juice powder, seasoning powder |
| Flavor requirement | 4 flavors simultaneously |
| Filling system | Independent short-auger dosing |
| Filling range | 4–10 g / 10–17 g |
| Filling accuracy | ±5% |
| Production requirement | 30 packs/min according to production order |
| Bag width | 65 mm |
| Bag length | 90–160 mm |
| Packaging material | Composite film |
| Film thickness | Approx. 60–110 μm |
| Horizontal seal width | 5 mm |
| Vertical seal width | 5 mm |
| Cutting type | Fixed-length cutting |
| Tear notch | Easy-tear notch |
| Main machine material | SUS304 stainless steel |
| Product-contact material | SUS316 stainless steel |
| Control system | Siemens |
| Power supply | 3-phase 380 V, 50 Hz |
| Interface language | English / Chinese |
To support continuous powder packaging, the production line is equipped with a vacuum powder feeding system.
The powder can be transferred automatically to the feeding section of the packaging machine, reducing manual feeding requirements during production.
The project uses multiple vacuum feeding units according to the customer's four-lane production configuration.
Fine powders such as juice powder and seasoning powder can generate dust during feeding and filling.
For this reason, the customer selected a dedicated industrial vacuum dust collection system together with matching suction pipes.
The project also includes dehumidification equipment, vibration devices and anti-static treatment according to the customer's production requirements.
These configurations are intended to support more stable handling of fine powder during packaging.
The SF-720 machines are equipped with a Siemens control system and an English/Chinese operating interface.
According to the customer's requirements, the machine also includes a safety-door interlock system.
When the front safety door is opened, the machine stops automatically.
The project also specifies Schneider electrical components for the electrical system.
The finished package for this project is a 65 mm wide four-side-seal sachet.
The bag length can be adjusted between 90 mm and 160 mm, allowing the customer to match different filling weights and package designs within the specified range.
The sachets use a 5 mm horizontal seal and 5 mm vertical seal, together with an easy-tear notch for convenient opening.
Because this machine is designed around a specified multi-lane bag configuration, the bag width is determined by the machine configuration, while the bag length can be adjusted within the applicable range.
A multi lane powder sachet packing machine with independent dosing systems can be used when different powder flavors need to be packed simultaneously.
In this Turkey project, Samfull configured the SF-720 with four independent auger dosing systems, allowing each of the four lanes to handle an individual powder flavor.
This type of configuration is particularly suitable for products such as juice powder, beverage powder, seasoning powder, nutritional powder and other small-dose powdered products where different formulations need to be handled independently.
For a conventional multi lane powder packing machine, several lanes may share the same product supply.
However, when the manufacturer needs to package different flavors or different formulations, independent dosing becomes important.
With four independent auger dosing units, each lane can receive and meter its own powder.
For this customer, the configuration provides a practical solution for packaging four flavors in the same production setup.
Yes, provided that the machine is equipped with independent feeding and dosing systems for each lane. In this project, four independent short-auger dosing systems were used so that four powder flavors can be handled separately.
This project is designed for juice powder and seasoning powder. Similar auger-based configurations can also be considered for other suitable powdered products after evaluating the powder characteristics.
The customer required two filling ranges: 4–10 g and 10–17 g.
The specified sachet width is 65 mm, with an adjustable bag length of 90–160 mm.
The machine produces four-side-seal sachets using composite packaging film.
The main machine uses SUS304 stainless steel, while the product-contact sections specified in this project use SUS316 stainless steel.
Yes. The project includes vacuum powder feeding equipment together with a dedicated dust collection system.
If your project requires several powder flavors, different formulations or multiple small-dose sachets, Samfull can configure the multi lane powder sachet packing machine according to your product, filling weight, sachet size and production requirements.
Send us your:
product sample, filling weight, sachet dimensions and required production capacity, and our team will recommend a suitable multi lane powder packaging solution.
