Technical details
| Item | Specification |
|---|---|
| Product | Medicine Powder |
| Filling Weight | 8g |
| Powder Density | 1ml = 0.607g |
| Packaging Type | Four Side Seal Sachet |
| Machine Model | SF960F-4 |
| Number of Lanes | 4 Lanes |
| Filling System | Auger Screw Filling |
| Actual Running Speed | 33 Cuts/Min |
| Production Capacity | 132 Sachets/Min |
| Machine Material | 304 Stainless Steel |
| Control System | Siemens System |
APPLICATIONS

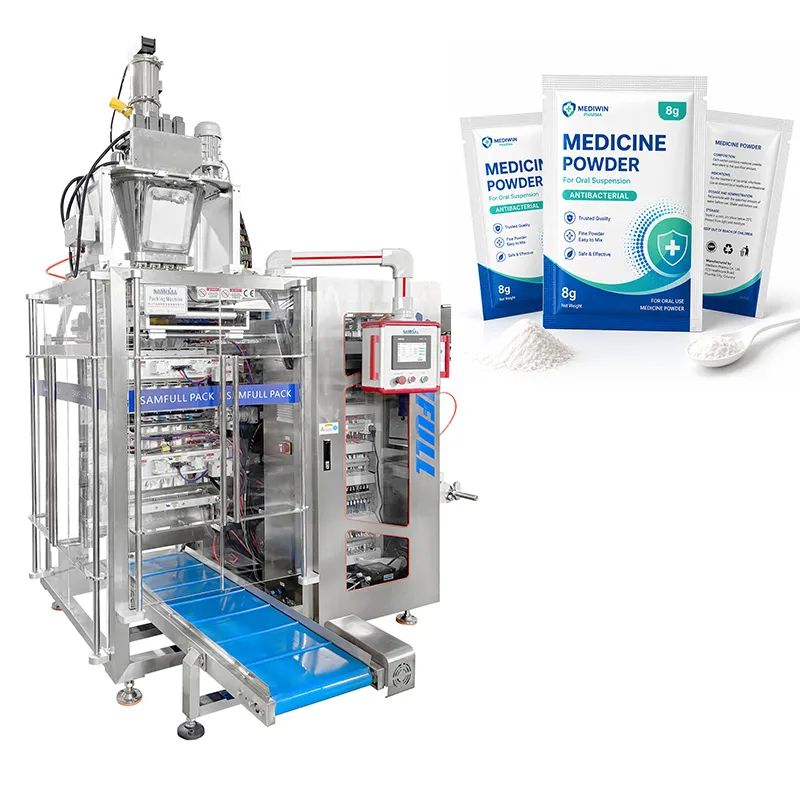

A pharmaceutical powder manufacturer from Pakistan selected Samfull’s SF960F-4 four side seal sachet packaging machine for automatic medicine powder packaging.
The customer required a reliable packaging solution for 8g powder medicine sachets. Because the powder has a special density characteristic (1ml = 0.607g), the project required an accurate auger filling system and stable powder handling design to ensure consistent dosage and packaging quality.
Samfull provided a customized 4-lane powder sachet packaging machine with precision screw filling technology, dust control accessories, and stable sealing performance.
BAG SAMPLES
VIDEOS

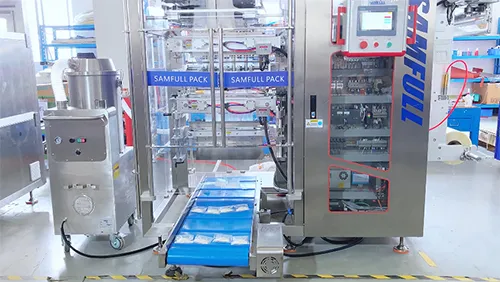

Medicine powder four side seal sachet machine
OPTIONAL DEVICES
Dust Collection System
Equipped with dust collector and suction pipeline to reduce powder dust during filling process and improve the working environment.
Static Eliminator Device
Removes static electricity from packaging film and powder materials, improving film feeding stability and packaging performance.
Feeding Pipe Vibration Device
Helps powder flow smoothly through the feeding pipe, reducing material bridging and improving filling consistency.
Filling System Vibration Assistance
Supports stable powder feeding and improves dosing accuracy for low-density powder products.
Sponge Tube Clamping Device
Helps control powder feeding pipes and reduce powder leakage during operation.
Online Weight Checking System
Optional check weigher for monitoring sachet weight accuracy and improving quality control.
Date Coding Machine
Optional printer for production date, expiry date, batch number and product traceability information.
Finished Sachet Conveyor
Transfers finished medicine powder sachets automatically for collection or secondary packaging.
Secondary Packaging Integration
Can be connected with counting, bagging, cartoning or boxing systems for automated downstream packaging.
Metal Detector System
Optional food/pharmaceutical safety inspection equipment for finished sachets.
DESCRIPTION
| Item | Specification |
|---|---|
| Customer Country | Pakistan |
| Product | Medicine Powder |
| Filling Weight | 8g |
| Powder Density | 1ml = 0.607g |
| Packaging Type | Four Side Seal Sachet |
| Machine Model | SF960F-4 |
| Lane Number | 4 Lanes |
| Filling System | Auger Screw Filling |
| Machine Material | 304 Stainless Steel |
| Control System | Siemens System |
| Actual Running Speed | 33 Cuts/Min |
| Output Capacity | 132 Sachets/Min |
| Packaging Film | Composite Film |
| Film Thickness | 7–9μm |
| Sachet Width | 95mm |
| Sachet Length | 100–160mm |
| Sealing Size | 10mm Vertical / 10mm Horizontal |
| Easy Tear Design | One-Line Tear Cut |
| Power Supply | 380V 50Hz 3 Phase |
The customer needed an automatic packaging machine suitable for pharmaceutical powder products with:
Accurate 8g dosing performance
Stable filling for low-density powder materials
Reduced powder leakage and dust generation
Professional four-side seal sachet appearance
Reliable long-term production
Because the powder density is only 0.607g/ml, the filling system required precise screw control to maintain stable dosage accuracy.
Samfull equipped the machine with an auger screw filling system, which is suitable for powder products requiring accurate volume-based filling.
Additional customized devices included:
Lower feeding pipe vibration system
Measuring cup vibration assistance
Static elimination device
Sponge tube clamping device
Dust collector and suction pipeline
These configurations help improve powder flow stability, reduce material accumulation, and maintain a cleaner packaging environment.
The machine achieved an actual running speed of:
33 Cuts/Min
With 4 lanes:
4 × 33 = 132 sachets/min
Hourly output:
7,920 sachets/hour
The system provides a balance between production efficiency and accurate powder dosing.
The auger screw filling system provides accurate control for powder materials with different densities.
Vibration assistance and dust collection equipment improve powder feeding stability and production cleanliness.
The four-side seal structure with 10mm sealing width provides strong sealing performance and professional package appearance.
The machine supports sachet lengths from 100mm to 160mm, suitable for different powder packaging requirements.
This powder sachet packaging solution is suitable for:
Pharmaceutical powder
Herbal powder
Health supplement powder
Nutritional powder
Medical powder products
This Pakistan 8g medicine powder sachet packaging project demonstrates Samfull’s capability in customized powder packaging solutions.
With precise auger filling technology, powder handling accessories, and stable four-side seal packaging performance, the SF960F-4 powder sachet packaging machine helps pharmaceutical customers achieve accurate dosing and efficient production.
