El Salvador Customer Case: 10-Lane Instant Coffee Stick Pack Packaging Machine for 1.8g Coffee Powder

1. Basic Project Information

2. Customer Requirement

The customer from El Salvador needed a multi-lane solution for 1.8g instant coffee powder stick packs. This type of coffee stick pack is commonly used for single-serving coffee products, hotel coffee supply, office coffee, vending channels, supermarket retail, and contract coffee packaging.

The customer’s key requirements were clear:

• small-dose coffee powder filling

• narrow stick pack format

• 10-lane high-output production

• Spanish / English / Chinese touchscreen operation

• clean sealing area during powder filling

• stable operation around 30–40 cuts/min

• dust control and static control for coffee powder

• export-ready machine structure and packing

For this application, Samfull selected the SF-720 10-lane back-seal stick pack machine, combined with a short auger dosing system for powder filling.

3. Why Short Auger Dosing Is Suitable for Instant Coffee Powder

Instant coffee powder is different from free-flowing granules such as sugar or salt. It can be light, fine, dusty, and affected by humidity or static electricity. If the dosing method is not suitable, problems may appear during production, such as unstable weight, powder sticking, dust around the sealing area, or poor package appearance.

For this reason, this project uses short auger dosing.

Short auger dosing is suitable for:

• instant coffee powder

• 3-in-1 coffee powder

• milk coffee powder

• cocoa powder

• nutrition powder

• fine drink powder

• small-dose powder products

For the customer’s 1.8g coffee stick pack, short auger dosing can provide better control for small-dose powder filling and is more suitable than ordinary cup dosing for fine powder materials.

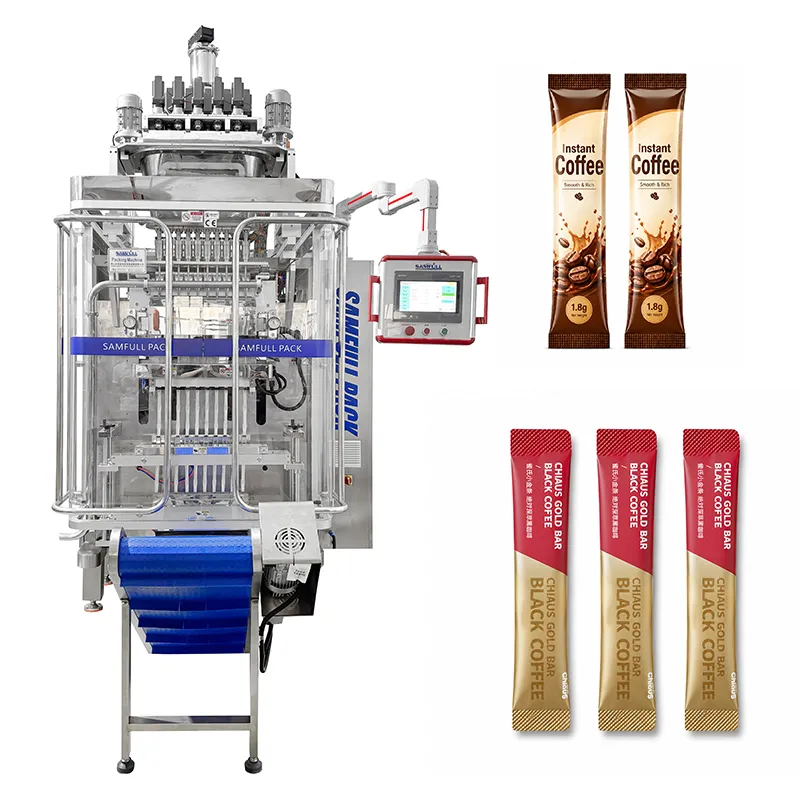

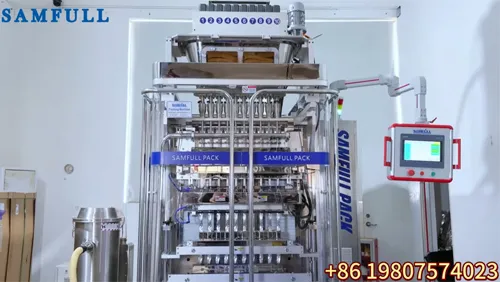

4. Machine Solution: SF-720 10-Lane Back-Seal Stick Pack Machine

The customer selected a 10-lane back-seal stick pack machine. Compared with a 4-lane or 6-lane model, a 10-lane machine provides higher output and is more suitable for customers who already have stable coffee product demand.

Main machine advantages:

10-lane high-output structure

The machine forms, fills, seals, and cuts 10 stick packs at the same time. This is suitable for continuous production of single-serving coffee sticks.

Siemens control system

The production order specifies a Siemens system, which improves control stability and is convenient for long-term industrial production.

304 stainless steel structure

The machine frame is made of 304 stainless steel, suitable for food powder packaging environments.

Multi-language operation

The HMI language includes Spanish, English, and Chinese, which is especially practical for an El Salvador customer and local production operators.

Export power standard

The machine is designed according to the customer’s factory power supply: 220V, 3 phase, 60Hz.

5. Production Capacity Calculation

The production order shows a speed requirement of 30–40 cuts/min.

For a 10-lane machine, the theoretical output is:

• 10 lanes × 30 cuts/min = approx. 300 packs/min

• 10 lanes × 40 cuts/min = approx. 400 packs/min

According to the remarks, the machine should try to reach around 35 cuts/min per lane during actual production.

So the practical reference output is:

10 lanes × 35 cuts/min = approx. 350 stick packs/min

This output level is suitable for coffee brands, food factories, and coffee co-packers who need stable batch production of small coffee stick packs.

6. Packaging Specification

The final package is a narrow coffee stick pack with a compact single-serving format.

This format is especially suitable for:

• instant coffee stick pack

• hotel coffee stick

• office coffee sachet

• retail coffee single pack

• vending coffee powder

• coffee sample pack

• contract coffee packaging

The 27mm × 110mm stick pack gives enough space for branding while keeping the package slim, portable, and easy to tear.

7. Dust Control and Static Control Design

For instant coffee powder, dust and static electricity are important issues in real production. The production order clearly required:

• dust removal device

• dust collector

• static removal device

• vibration device

These configurations are very practical for coffee powder stick pack production.

Dust removal device

Coffee powder may float during filling, especially at high speed. If too much powder stays near the sealing area, it may affect sealing quality. A dust removal system helps keep the machine cleaner and improves the final package appearance.

Static removal device

Composite film and dry powder may generate static electricity during production. Static can cause powder sticking, film attraction, and unstable feeding. Static removal helps improve film running and powder filling performance.

Vibration device

A vibration device helps improve material feeding consistency, especially when coffee powder flowability changes due to humidity, particle size, or formulation.

8. Quality Requirement

The production order states the qualification standard as:

Only 3 unqualified packs are allowed per 1000 packs.

For coffee stick pack production, this is an important quality control target. The main quality points include:

• stable 1.8g powder filling

• clean longitudinal sealing

• consistent bag length

• accurate cutting position

• clear easy-tear line

• good stick pack appearance

• reduced powder contamination around the seal

• stable multi-lane operation

For small-dose coffee powder, stable filling and clean sealing directly affect the customer’s product quality and brand image.

9. Why This Case Is Valuable for Coffee Brands and Co-Packers

This El Salvador coffee stick pack project is a good reference for customers who want to produce small-dose instant coffee packs with higher output.

The solution is especially suitable for:

• instant coffee manufacturers

• coffee powder brands

• coffee co-packing companies

• food powder factories

• hotel coffee suppliers

• supermarket private label suppliers

• single-serving beverage powder producers

Compared with single-lane or low-lane machines, the 10-lane SF-720 machine provides much higher production efficiency. At the same time, the use of short auger dosing, dust collection, static removal, and vibration assistance makes the machine more suitable for fine coffee powder.

10. Samfull Experience in Coffee Stick Pack Packaging

Samfull has long-term experience in multi-lane packaging machines for coffee powder, sugar, beverage powder, nutrition powder, and other small-dose products.

For coffee stick pack projects, we focus on more than machine speed. We also evaluate:

• coffee powder flowability

• filling weight

• bag width and bag length

• film material and thickness

• sealing width

• dust level during filling

• production speed target

• customer factory voltage

• local operator language

• future connection with counting or cartoning systems

This is why the final solution for this customer was not just a standard machine, but a practical configuration based on actual production requirements.

11. Conclusion

This El Salvador customer case shows a complete multi-lane stick pack solution for 1.8g instant coffee powder.

The customer selected 1 set of SF-720 10-lane back-seal stick pack packaging machine, using short auger dosing, Siemens control system, 304 stainless steel frame, and a multi-language HMI including Spanish, English, and Chinese.

With a speed range of 30–40 cuts/min, the machine can reach approximately 300–400 stick packs/min, with a practical target around 350 packs/min at 35 cuts/min. For coffee brands and contract packers looking for an efficient instant coffee stick pack packaging machine, this case provides a strong production reference.
