Technical details
| Parameter | Specification |
|---|---|
| Machine Model | SF-850 12-Lane Stick Pack Machine |
| Product | Fine Nutrition Powder |
| Filling Weight | 4–12g |
| Number of Lanes | 12 Lanes |
| Packaging Speed | 28 Cycles/Min, Up to 336 Packs/Min |
| Bag Size | Width: 30mm; Length: 60–160mm |
| Bag Type | Back-Seal Stick Pack |
| Metering System | Screw Dosing System |
APPLICATIONS
A customer from Poland selected our high speed 12-lane stick pack packaging line for packing fine nutrition powder into narrow single-dose stick packs.
The product is a fine nutritional powder with a filling weight of 4–12g per stick. To handle fine powder efficiently, the machine is configured with a screw dosing system, vibration-assisted feeding, dust removal system and anti-static device.

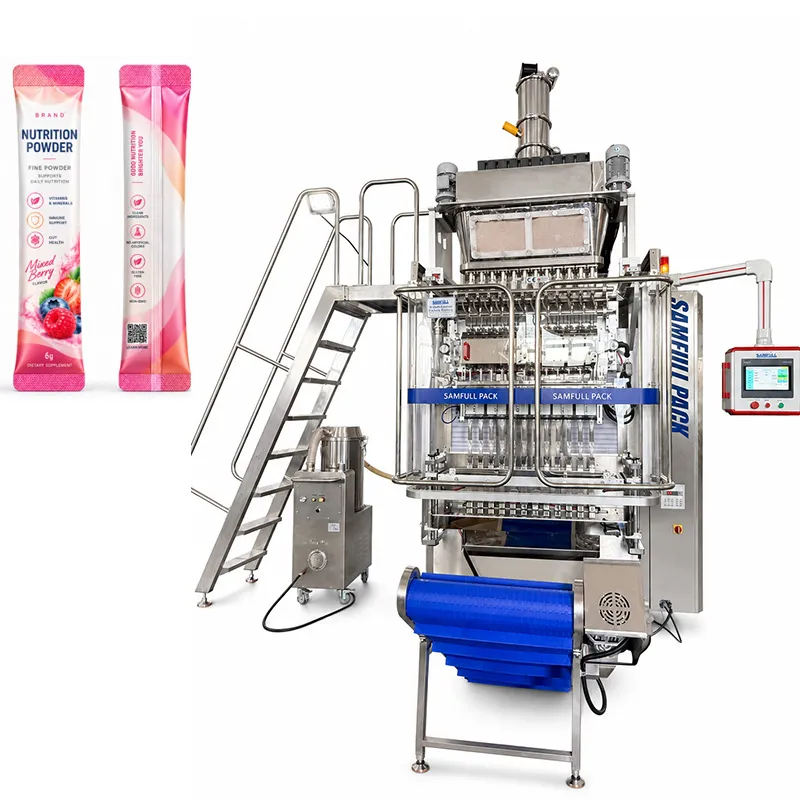

The main machine used for this project is the SF-850 12-lane back-seal stick pack packaging machine, equipped with a Siemens control system and 304 stainless-steel frame.
With a machine speed of 28 cycles per minute, the 12-lane system can produce up to 336 stick packs per minute under suitable operating conditions.
This makes the system suitable for high-volume production of nutrition powder, dietary supplement powder, electrolyte powder and other fine powder products.
BAG SAMPLES
VIDEOS

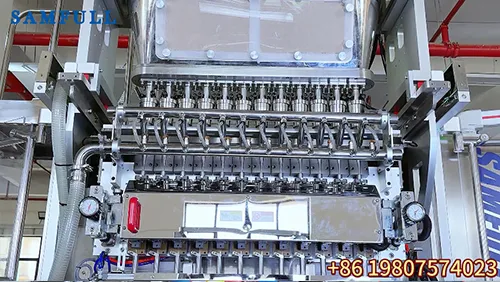

12 lanes powder stick pack machine
OPTIONAL DEVICES
Dust Removal Device – Helps control fine powder dust during filling and keeps the packaging area cleaner.
Anti-Static Device – Reduces static electricity generated by fine powder and packaging film during production.
Vibration Device – Added to the powder feeding section to improve powder flow and reduce powder accumulation.
DESCRIPTION
The customer required a compact stick pack format for portioned nutrition powder.
Main project requirements:
Product: Fine nutrition powder
Filling weight: 4–12g
Number of lanes: 12 lanes
Machine speed: 28 cycles/min
Maximum output: Up to 336 stick packs/min
Bag width: 30mm
Bag length: 60–160mm
Bag style: Back-seal stick pack
Total film width: 840mm
Packaging film: Laminated film
Film thickness: 9–10 silk
Easy-tear opening: Yes
Dust removal system: Required
Anti-static system: Required
Vibration device: Required
Control system: Siemens
Machine frame: 304 stainless steel
Power supply: 3-phase 380V, 50/60Hz
For this project, we supplied an SF-850 12-lane powder stick pack packaging machine designed for high-speed fine powder packaging.
The multi-lane structure allows 12 stick packs to be formed and filled simultaneously from one wide roll of packaging film.
The packaging process includes:
Film unwinding → film guiding → multi-lane forming → screw dosing → powder filling → longitudinal sealing → horizontal sealing → cutting → finished stick packs
Compared with a single-lane packaging machine, the 12-lane configuration significantly increases output while keeping the production line compact.
At 28 cycles per minute, the machine can achieve a theoretical maximum output of:
12 lanes × 28 cycles/min = 336 stick packs/min
Actual production speed depends on powder characteristics, filling weight, packaging material and operating conditions.
| Parameter | Project Configuration |
|---|---|
| Machine Model | SF-850 |
| Machine Type | 12-Lane Stick Pack Packaging Machine |
| Product | Fine Nutrition Powder |
| Filling Weight | 4–12g |
| Number of Lanes | 12 |
| Machine Speed | 28 Cycles/Min |
| Maximum Output | Up to 336 Stick Packs/Min |
| Bag Width | 30mm |
| Bag Length | 60–160mm |
| Total Film Width | 840mm |
| Bag Style | Back Seal Stick Pack |
| Packaging Film | Laminated Film |
| Film Thickness | 9–10 Silk |
| Metering System | Screw Dosing System |
| Machine Material | 304 Stainless Steel |
| Control System | Siemens |
| Easy Tear | Yes |
| Power Supply | 3-Phase 380V, 50/60Hz |
| Touchscreen Language | English / Chinese |
Fine powder products require more careful handling than free-flowing granules.
Nutrition powder, protein powder and dietary supplement powder may create dust, static electricity or unstable powder flow during packaging.
For this reason, this stick pack packaging line for fine powder includes several dedicated configurations.
The machine uses a screw dosing system for controlled powder feeding and filling.
This solution is commonly used for fine powder products where stable feeding and consistent dosing are important.
It is suitable for products such as:
nutrition powder
protein powder
collagen powder
electrolyte powder
vitamin powder
probiotic powder
dietary supplement powder
instant beverage powder
A vibration device is added to the powder feeding system.
For fine or less free-flowing powders, vibration can help reduce powder bridging and accumulation inside the feeding path.
This supports more stable powder feeding during continuous high-speed production.
Fine powder can generate airborne dust during filling.
If too much powder accumulates around the sealing area, it may affect cleanliness and sealing stability.
The machine therefore includes a dust removal system to help control powder dust during production.
This is particularly important for high-speed nutrition powder packaging.
Fine powder and laminated packaging film may generate static electricity during high-speed production.
An anti-static system is included to improve production stability and reduce static-related issues around the film and powder feeding area.
One of the key advantages of this project is production capacity.
The machine operates at up to 28 packaging cycles per minute.
Because 12 lanes operate simultaneously, the theoretical output reaches:
336 stick packs per minute
This makes the machine suitable for manufacturers requiring a high speed stick pack packaging line for large-volume powder production.
Multi-lane packaging is especially effective for small single-dose packs, where each individual package contains only a few grams of product.
The customer selected a 30mm bag width for the finished stick packs.
The bag length can be adjusted from:
60mm to 160mm
This narrow format is suitable for single-dose powder products and helps create compact consumer-friendly packaging.
Typical applications include:
sports nutrition powder
electrolyte powder
collagen powder
vitamin powder
functional drink powder
protein powder
probiotic powder
instant nutritional drinks
The machine is equipped with a Siemens control system for production management and parameter adjustment.
The touchscreen supports both English and Chinese.
Operators can adjust machine parameters according to different production requirements, including bag length, dosing settings and packaging conditions.
The machine is equipped with an automatic film deviation correction system.
This is particularly important for a 12-lane packaging machine because the system uses wide roll film.
Stable film tracking helps maintain consistent forming, sealing and cutting across all lanes during continuous production.
The customer required an easy-tear opening for the finished stick packs.
This design improves convenience for consumers and is commonly used for single-dose nutrition powder and supplement packaging.
The stick pack machine is designed with multiple safety features for daily production.
The project includes:
safety switches
automatic stop when the safety door is opened
three-color production indicator light
safety operating platform
safety handrails
safety access ladder
These configurations support safer operation in high-speed production environments.
The powder hopper is designed for convenient cleaning and product changeover.
This is especially useful for manufacturers producing multiple formulations or flavors on the same nutrition powder packaging line.
The machine also includes material-level monitoring to support continuous powder feeding during production.
The customer also considered future production expansion.
The production layout reserves space behind the stick pack machine for future secondary packaging equipment.
This allows the customer to expand from an individual stick pack machine into a more complete:
stick pack packaging line + secondary packaging line
in the future.
Possible downstream equipment may include counting, cartoning or other secondary packaging systems according to the final production requirement.
A 12-lane machine can produce 12 stick packs simultaneously during each machine cycle.
For high-volume small-dose powder products, this configuration offers several advantages:
higher packaging output
compact machine footprint
fewer operators compared with multiple independent machines
centralized powder feeding
centralized film handling
easier production management
For manufacturers producing large quantities of nutrition powder or supplement sticks, a multi lane stick pack machine can provide a more efficient solution than multiple single-lane machines.
This 12-lane powder stick pack packaging line can be configured for various fine powder products.
Typical applications include:
nutrition powder
protein powder
collagen powder
electrolyte powder
vitamin powder
dietary supplement powder
probiotic powder
milk powder blends
functional beverage powder
meal replacement powder
instant drink powder
coffee powder
Machine configuration should always be confirmed according to powder characteristics, bulk density, required filling weight and packaging material.
This Poland project uses an SF-850 high speed 12-lane stick pack packaging machine for fine nutrition powder.
The final configuration combines:
12-lane packaging + screw dosing + vibration-assisted feeding + dust removal + anti-static control + Siemens control + automatic film correction
The machine packs 4–12g of fine powder into 30mm-wide stick packs with an adjustable bag length of 60–160mm.
With a machine speed of 28 cycles per minute, the system can reach a theoretical maximum output of 336 stick packs per minute.
This solution is suitable for manufacturers looking for a high speed stick pack packaging line for nutrition powder and other fine powder products.
The machine operates at up to 28 cycles per minute. With 12 lanes running simultaneously, the theoretical maximum output is 336 stick packs per minute.
Yes. This project is specifically configured for fine nutrition powder using screw dosing, vibration-assisted feeding, dust removal and anti-static devices.
The filling requirement for this project is 4–12g per stick pack.
The bag width is 30mm, and the bag length is adjustable from 60mm to 160mm.
Yes, depending on the powder characteristics and bulk density. The machine can be configured for protein powder, collagen powder, electrolyte powder, nutrition powder and similar fine powder products.
Yes. The production layout can reserve space for future downstream equipment such as counting or cartoning systems.
